Quick Details
-
Product name:
-

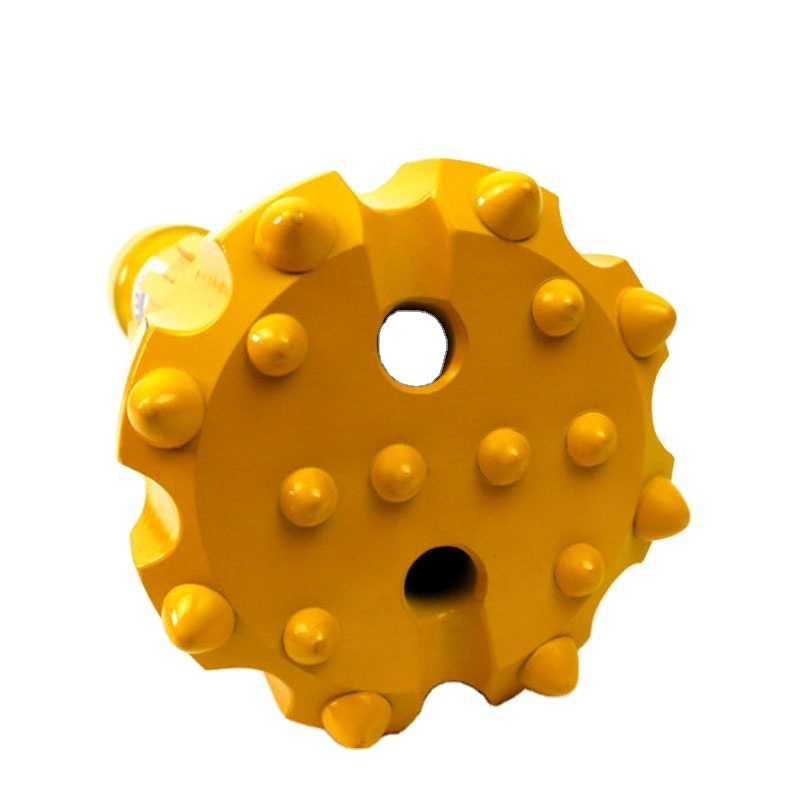

High Pressure Rotary Rock Drill Head For Sale
-
Hlole range:
-
64mm-998mm
-
Button shape:
-
Domed/Round ,Parabolic/Semi-Ballistic , Ballistic , Sharp , Flat
-
Face shape:
-
Concave , Convex , Double gauge , Flat
-
Steel:
-
High quality steel
-
Advantage:
-
high-efficiency
-
Work pressure:
-
1.0-2.4Mpa
-
Hammer type:
-
COP/ SD/ DHD/ IR/ Mission/ QL/ BR/ CIR
-
Sample:
-
YES
-
OEM:
-
YES
Quick Details
-
Weight (KG):
-
10
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
MEGAROC
-
Product name:
-
High Pressure Rotary Rock Drill Head For Sale
-
Hlole range:
-
64mm-998mm
-
Button shape:
-
Domed/Round ,Parabolic/Semi-Ballistic , Ballistic , Sharp , Flat
-
Face shape:
-
Concave , Convex , Double gauge , Flat
-
Steel:
-
High quality steel
-
Advantage:
-
high-efficiency
-
Work pressure:
-
1.0-2.4Mpa
-
Hammer type:
-
COP/ SD/ DHD/ IR/ Mission/ QL/ BR/ CIR
-
Sample:
-
YES
-
OEM:
-
YES
High Pressure Rotary Rock Drill Head For Sale
What are the key factors when you purchase the drilling tools?
Product's technical parameter? Q uality? The price? Professional service? Company strength? Delivery items? After-sales service?
1. About the technical parameter:
Specification
| Drill Bit Series | Bit Dia (mm) | Gauge Buttons | Front Buttons | Weight(Kg) |
| Cop32 | 85 | 6×φ14 | 4×φ12 | 4.2 |
| 90 | 6×φ14 | 5×φ12 | 4.5 | |
| 95 | 7×φ14 | 5×φ12 | 4.7 | |
| 100 | 8×φ14 | 6×φ12 | 5 | |
| 105 | 8×φ14 | 6×φ13 | 5.3 | |
| HD35(IR3.5, Cop34) | 85 | 6×φ14 | 4×φ12 | 4.2 |
| 90 | 6×φ14 | 5×φ12 | 4.5 | |
| 95 | 7×φ14 | 5×φ12 | 4.8 | |
| 100 | 8×φ14 | 6×φ12 | 5 | |
| 105 | 8×φ14 | 6×φ13 | 5.5 | |
| HD45(DHD340A, Cop44) | 105 | 6×φ14 | 5×φ13 | 8.5 |
| 110 | 7×φ14 | 6×φ13 | 8.8 | |
| 115 | 8×φ14 | 7×φ13 | 9 | |
| 120 | 8×φ14 | 8×φ13 | 9.8 | |
| 127 | 9×φ14 | 9×φ14 | 11 | |
| HD55(DHD350R, Cop54) | 133 | 7×φ16 | 6×φ14 | 16 |
| 140 | 8×φ16 | 7×φ14 | 16.5 | |
| 146 | 8×φ16 | 8×φ14 | 17 | |
| 152 | 8×φ16 | 7×φ16 | 17.5 | |
| 165 | 8×φ16 | 8×φ16 | 18.5 | |
| HD65(DHD360, Cop64) | 152 | 8×φ16 | 8×φ16 | 22 |
| 165 | 8×φ18 | 8×φ16 | 24 | |
| 178 | 8×φ18 | 8×φ16 | 26 | |
| 190 | 9×φ18 | 9×φ16 | 28 | |
| 203 | 10×φ18 | 10×φ16 | 29.5 | |
| HD85(DHD380, Cop84) | 195 | 9×φ18 | 9×φ18 | 34 |
| 203 | 10×φ18 | 10×φ18 | 36 | |
| 216 | 12×φ18 | 12×φ18 | 45 | |
| 254 | 12×φ18 | 20×φ18 | 58 | |
| 305 | 12×φ18 | 30×φ18 | 75 |
Product Description
Products Parameters:
1.high and low air pressure down-the-hole drill bits
2.Low air pressure holeDia.:65-220mm
3.High air pressure hole Dia.:85-305mm
4.Face type: drop center bit/concave face/convex face/double gauge face/flat face bit
5. Carbide button shape: domed/round button parabolic/semi-ballistic button ballistic button sharp button flat button
6. Drill rock type: G ranite, Marble, L imestone, B asalt, ect.
| NO. | Advantages | Description |
| 1 | Quality | 95% quality similarity with world top class brands, such as atlas ingersoll rand etc. |
| 2 | Shank Type | Our products can be suitable for many types of DTH Hammer, such as QL, Mission, COP, IR, SD,HD,DHD,BR,CIR etc. |
| 3 | Materials | Our products adopt high-quality raw materials , advanced technology and passed through strictly inspection , making sure the high quality of every dth bits |
| 4 | Advantages | Our dth bits can transmit intensive impact energy into the rock with the least loss of energy , which can help you improve efficiency and reduce costs |
| 5 | Product life | We select high-strength structure alloy steel and carbides with best quality to ensure the drill body and alloy body can achieve uniform wear, thus the service life of bits will be increased . |
2. About the quality:
Our DTH Bits has following advantages:
1.
95%
quality similarity with world top class brands,
such as atlas Copco
etc.
2. Strong ability in drilling tools production.
3.Strick quality control.
Factory Description And price
Advanced equipment
Professional technicians
Strict production process
3. About the price:
No middle channel ,
Direct selling
Cheap and competitive factory price .
Professional service
4. About the Professional service:
Since our company has been established in 1996, we have served a number of large mining projects including blast holes, anchoring geothermal bore holes, quarring, well drilling and accumulated a wealth of practical experience.And Our DTH bit can be used in different types of drilling machine:
