Quick Details
-
Power:
-
0kw
-
Min. Lifting Height:
-
1100mm
-
Table Size:
-
3*2m
-
Overall Dimensions:
-
11.1*2*1.1m
-
Weight:
-
3000 kg
-
After-sales Service Provided:
-
Overseas service center available
-
Product name:
-
dock leveler
-
Feature:
-
hydraulic
-
Height:
-
1800mm
-
Platform size:
-
3*2m
-
Load capacity:
-
8000
-
Material:
-
High Strength Steel
-
Keywords:
-
dock ramp
-
Control:
-
manual
-
min height:
-
1.1m
-
Certification:
-
CE ISO9001
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JUXIN
-
Power:
-
0kw
-
Min. Lifting Height:
-
1100mm
-
Table Size:
-
3*2m
-
Overall Dimensions:
-
11.1*2*1.1m
-
Weight:
-
3000 kg
-
After-sales Service Provided:
-
Overseas service center available
-
Product name:
-
dock leveler
-
Feature:
-
hydraulic
-
Height:
-
1800mm
-
Platform size:
-
3*2m
-
Load capacity:
-
8000
-
Material:
-
High Strength Steel
-
Keywords:
-
dock ramp
-
Control:
-
manual
-
min height:
-
1.1m
-
Certification:
-
CE ISO9001

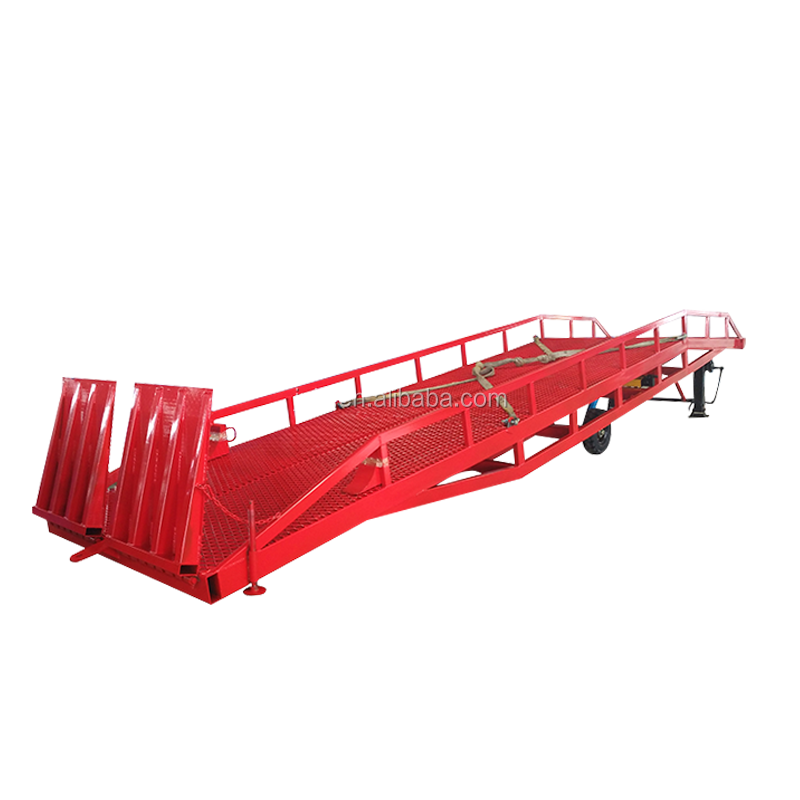

10Ton Forklift Container Truck Used Mobile Yard Ramp Loading And Unloading Platform
1.Manual hydraulic elevator system It's equipped with handle hydraulic device adjusting the working height directly ,which don't need electricity.
2.Fold-down transition board The tail and transition plate and forklift folding hook can be convenient mobile
climbing
.
3.Adjustable length Hinge Chains hook vehicles, make
climbing
and vehicles even shift always close together.
4.Heavy-duty mobile tyre Mobile wheels adopt solid tyres, need not inflatable, durable, cooperate to brake pad, guarantee the operation safety.
5.Adjustable height supporting legs Prevent forklift into vehicle gravity concentrate on vehicle tail produce car overturned. Can fully guarantee the operation safety. The different height to vehicles, suitable for height adjustment of vehicles.
6.Bridge body structure Bridge body strength, high bearing capacity bridge by high strength manganese steel body compound high strength, the characteristics of large carrying capacity.
7.Antiskid steel nets Adopting special rhombic grid plate can ensure excellent slip resistance ,which benefit forklift to climb.
Even through the work meets rain or snow, antiskid platform can ensure work not to be affected.
|
Model
|
Load(t)
|
Overall size(mm)
|
Solid tire
|
Cylinder
|
Adjusable range
|
Weight (kg)
|
|
DCQY6-1.8
|
6
|
11150*2100*1100
|
600-9
|
Ф80*2
|
1100-1800mm
|
2450
|
|
DCQY8-1.8
|
8
|
11150*2100*1100
|
600-9
|
Ф80*2
|
1100-1800mm
|
2650
|
|
DCQY10-1.8
|
10
|
11150*2100*1100
|
600-9
|
Ф80*2
|
1100-1800mm
|
2850
|
|
DCQY12-1.8
|
12
|
11150*2100*1100
|
700-9
|
Ф80*2
|
1100-1800mm
|
3600
|
|
DCQY15-1.8
|
15
|
11150*2100*1100
|
700-9
|
Ф80*2
|
1100-1800mm
|
4500
|
Except our normal models, the platform size, loading capacity, colour, travel height , power source etc can be customized
according to your request.
according to your request.
Factory
Jinan Juxin Machinery Co., Ltd. was established in 2008, is located in the rural Chinese manufacturer of lifting
platforms-Jiyang, the registered capital of one hundred fifty million yuan, is one of the top ten famous enterprises of lifting
platforms, parking system. 'A brand integrity, tree centuries JUXIN" as the goal, adhering to the "honest innovation, cooperation and win-win" business philosophy,focused on research and development of hydraulic lifting products, Jinan City business safety standardization. and has secured a perspective garage "special equipment manufacturing license" (ID: TS2410M58-2019), the registered trademark "XINJUXIN" products by the China people's Insurance company of product quality liability insurance, sold at home and abroad, by the majority of users.
Company Strength
The company has automated cutting equipment, automatic welding equipment, shot blasting lines, coating lines, welding robots and a series of modern production equipment, hydraulic series in the production and use of domestic Italian hydraulic power units both overall performance have reached the international advanced level. Guides mobile, fixed lifting platform, dock ramp, parking system, lifting stage, dumbwaiter and other accessibility eight series more than 90 varieties, widely used in the plant maintenance, industrial installation, equipment maintenance, property management, warehouse , aviation, airports, ports, railway stations, gas stations, stadiums, exhibition halls and many other industries and places,but also designed and manufactured according to the needs of users including special dimensions,carrying capacity,different power,explosion-proof electrical hydraulic lifting platform.
The company has automated cutting equipment, automatic welding equipment, shot blasting lines, coating lines, welding robots and a series of modern production equipment, hydraulic series in the production and use of domestic Italian hydraulic power units both overall performance have reached the international advanced level. Guides mobile, fixed lifting platform, dock ramp, parking system, lifting stage, dumbwaiter and other accessibility eight series more than 90 varieties, widely used in the plant maintenance, industrial installation, equipment maintenance, property management, warehouse , aviation, airports, ports, railway stations, gas stations, stadiums, exhibition halls and many other industries and places,but also designed and manufactured according to the needs of users including special dimensions,carrying capacity,different power,explosion-proof electrical hydraulic lifting platform.
WHY CHOOSE US?
1.Presale service:
Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and
the most suitable product program.
2. In sale service:
We provide free guidance of installation and debugging and free training of operation, care and maintenance.
3. After-sale service:
One year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine's
maintenance and reparations.
4. Quick responses:
we have a complete service network, and assist you to solve the problem in a short time.
5. Parts supply:
we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply
Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and
the most suitable product program.
2. In sale service:
We provide free guidance of installation and debugging and free training of operation, care and maintenance.
3. After-sale service:
One year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine's
maintenance and reparations.
4. Quick responses:
we have a complete service network, and assist you to solve the problem in a short time.
5. Parts supply:
we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply
FAQ:
1. Delivery time
Within 7- 15 working days after we receive the order
2. Payment terms
T/T, Western Union,paypal, other kinds, pls contact with us.
3. MOQ
Generally speaking, the MOQ is 1 set, Different products have different MOQ, pls contact with us.
4. Custom-made
Our lifts can be custom-made.We can receive special order.
Within 7- 15 working days after we receive the order
2. Payment terms
T/T, Western Union,paypal, other kinds, pls contact with us.
3. MOQ
Generally speaking, the MOQ is 1 set, Different products have different MOQ, pls contact with us.
4. Custom-made
Our lifts can be custom-made.We can receive special order.
