Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
BoRt
-
Model Number:
-
H05VVH2-F
-
Colors:
-
Optional
-
Service:
-
ODM,OEM
-
Packing:
-
Roll 305m/Roll ,610m/roll
-
Shipment:
-
Sea/Air/Express
-
Printing:
-
Customize
-
Sample:
-
available
-
Reference standard:
-
UL 758,UL1581
-
Quality control:
-
ISO 2015-9001
-
Certification:
-
ROHS/UL/CB/VDE
-
Package:
-
Plastic bag ,Bobbin,coil,Reel,Drum
Quick Details
-
Insulation Material:
-
PVC
-
Application:
-
Construction
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
BoRt
-
Model Number:
-
H05VVH2-F
-
Colors:
-
Optional
-
Service:
-
ODM,OEM
-
Packing:
-
Roll 305m/Roll ,610m/roll
-
Shipment:
-
Sea/Air/Express
-
Printing:
-
Customize
-
Sample:
-
available
-
Reference standard:
-
UL 758,UL1581
-
Quality control:
-
ISO 2015-9001
-
Certification:
-
ROHS/UL/CB/VDE
-
Package:
-
Plastic bag ,Bobbin,coil,Reel,Drum
Product Description

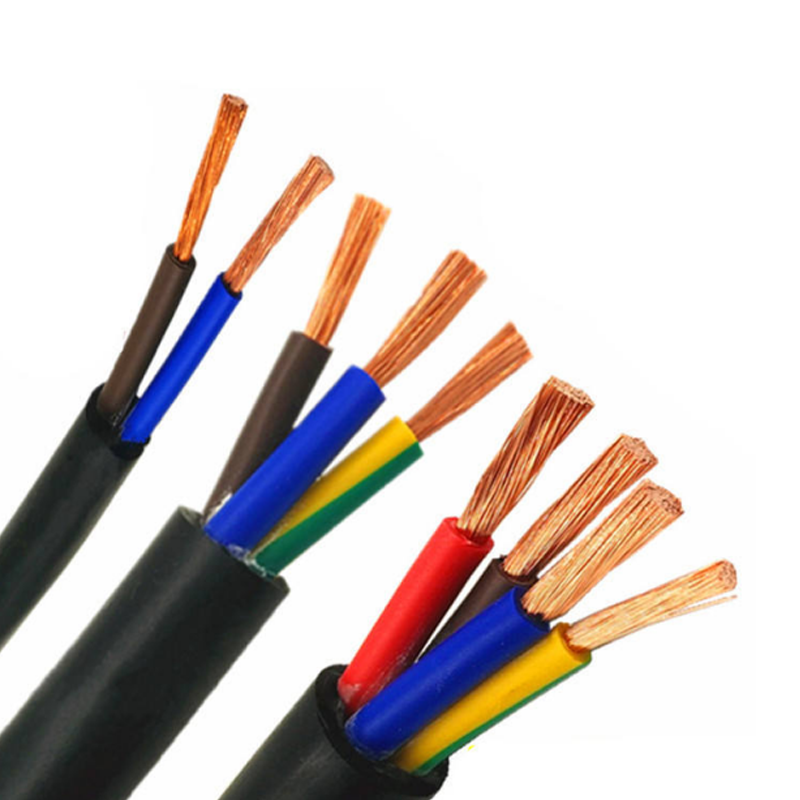

Power Cord H05VVH2-F Multi-conductor Cables with PVC Insulation and Sheath for Mobile and Portable Receivers
●Rated temperature：70℃
●Rated voltage：300/500V
●Reference standard：DIN VDE 0281
●Stranded bare copper conductor 0.75~1.5mm2
●PVC insulation ,comply with ROHS environmental standard
●PVC jacket ,comply with ROHS environmental standard
●Passes HD 405.1 flame test
●Uniform insulation thickness to ensure easy stripping and cutting
●For general purpose use for power supply cord
|
CONDUCTOR
|
|
|
|
|
INSULATION
|
|
JACKET
|
|
MAX.COND.RESISTANCEΩ/km,(20℃，DC)
|
||||||
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
||||||
|
STYLE
|
CROSS SECTION (mm²)
|
CONSTR- UCTION (No./mm)
|
DIA (mm)
|
(No.)
|
INSULATION THICKNESS (mm)
|
O.D. (mm)
|
JACKET THICKNESS (mm)
|
O.D. (mm)
|
|
||||||
|
H05VVH2-F
|
0.75
|
24/0.20
|
1.13
|
2
|
0.61
|
2.35
|
0.80
|
3.95×6.30
|
26.0
|
||||||
|
|
1.0
|
32/0.20
|
1.31
|
2
|
0.60
|
2.50
|
0.80
|
4.10×6.60
|
19.5
|
||||||
|
H05VV-F
|
0.75
|
24/0.20
|
1.13
|
2
|
0.61
|
2.35
|
0.80
|
6.30
|
26.0
|
||||||
|
|
|
|
|
3
|
0.60
|
2.35
|
0.82
|
6.70
|
|
||||||
|
|
1.0
|
32/0.20
|
1.31
|
2
|
0.60
|
2.50
|
0.80
|
6.60
|
19.5
|
||||||
|
|
|
|
|
3
|
0.60
|
2.50
|
0.86
|
7.10
|
|
||||||
|
|
1.50
|
30/0.25
|
1.58
|
2
|
0.71
|
3.00
|
0.80
|
7.60
|
13.3
|
||||||
|
|
|
|
|
3
|
0.71
|
3.00
|
0.92
|
8.30
|
|
||||||
