Application Scope:
This machine is widely used in the ceramic decals, membrane switch, film,nameplate, paper packaging, gift box, craft glass, acrylic plate, and other materials
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
doyan
-
Weight:
-
480 KG
-
Application:
-
Screen Printing
-
Type:
-
Flat Screen Printing Machine
-
Product name:
-
Diagonal arm screen printing machine
-
Operation:
-
Semi Automatic Operation
-
Feature:
-
Control
-
Printing material:
-
Ink Print
-
MOQ:
-
1 Set
-
Power:
-
220v 50hz
-
Printing speed:
-
500~1200pcs/h
-
Max Print Speed:
-
1200mm
Quick Details
-
Color & Page:
-
Multicolor
-
Voltage:
-
220V
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
doyan
-
Weight:
-
480 KG
-
Application:
-
Screen Printing
-
Type:
-
Flat Screen Printing Machine
-
Product name:
-
Diagonal arm screen printing machine
-
Operation:
-
Semi Automatic Operation
-
Feature:
-
Control
-
Printing material:
-
Ink Print
-
MOQ:
-
1 Set
-
Power:
-
220v 50hz
-
Printing speed:
-
500~1200pcs/h
-
Max Print Speed:
-
1200mm

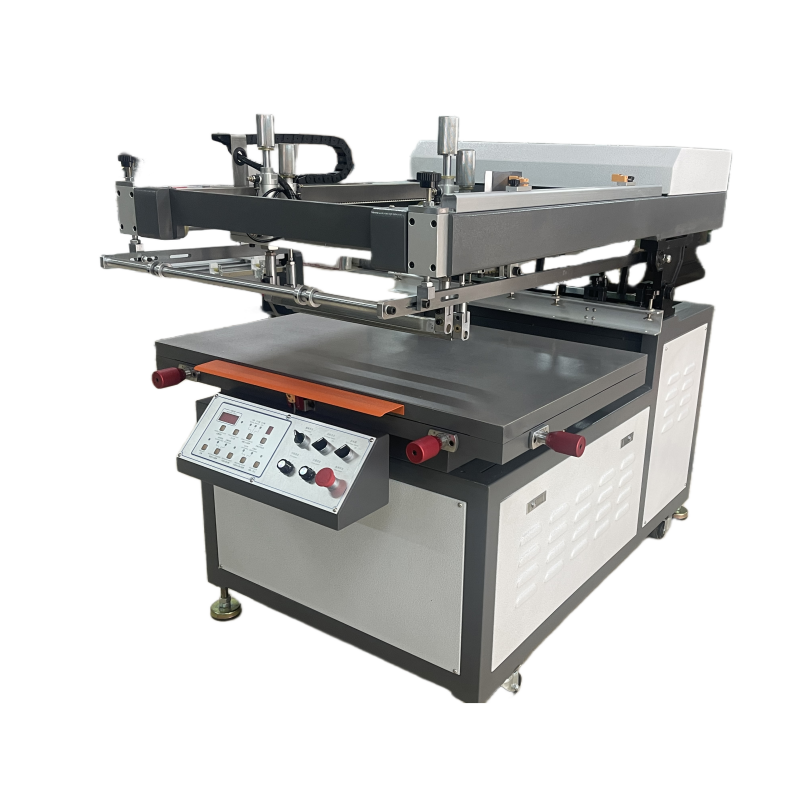

High accuracy semi-auto ablique-arm type flat screen printing machine
Characteristics:
◆ Printing transmission is driven by the electric motor, synchronous belt drive.
◆ Action sensitive, speed can be adjusted. Machine up and down is driven by the electric motor, frequency control. Smooth operation.
◆ Scraper and scraping blade have a air pressure governor, the thickness of the printing can be adjusted.
◆ Vacuum adsorption print.
◆ The working table has a vernier regulation system(can move up and down, left and right ,forward and backward)that makes registration more correctly and simply.
◆ With security devices to make the head printing stop on the upper part position that is more reliable and safer.
◆ The electronic control unit(ECU)is central control by the microcomputer, the operation of complete applicance is simpler and more flexible, easy to repair.
◆ The front clip can be adjusted through forward and back.
◆ Action sensitive, speed can be adjusted. Machine up and down is driven by the electric motor, frequency control. Smooth operation.
◆ Scraper and scraping blade have a air pressure governor, the thickness of the printing can be adjusted.
◆ Vacuum adsorption print.
◆ The working table has a vernier regulation system(can move up and down, left and right ,forward and backward)that makes registration more correctly and simply.
◆ With security devices to make the head printing stop on the upper part position that is more reliable and safer.
◆ The electronic control unit(ECU)is central control by the microcomputer, the operation of complete applicance is simpler and more flexible, easy to repair.
◆ The front clip can be adjusted through forward and back.
|
model
|
XF-6090
|
|
workbench size
|
720*1000mm
|
|
max frame size
|
900*1200mm
|
|
min frame size
|
450*550mm
|
|
Frame Lift Height（框架提升高度）
|
30mm
|
|
Operation Air Pressure
|
0.3-0.5Mpa
|
|
Air-Consumption
|
13(0.6Mpa)(L/pcs)
|
|
Source Power
|
2.3kw
|
|
Rated Power
|
220/50(V/Hz)
|
|
Max Table Height（最大表高度）
|
820mm
|
|
print speed
|
500-1200(pcs/h)
|
|
machine size
|
L*W*H=1500*1200*1250mm
|
|
Weight
|
410 kg
|
|
Machine configuration：
Motor---- MITSUBA Deceleration motor---- SUPROR Oil water separator --- BLCH Frequency converter ---- UANSHIN AC contactor ---- Siemens Proximity switch ---HWL Solenoid valve ---- YSC(Korea) Foot switch --- CNTD Switching power supply --- MW(shanghai shangge) Relay ---- SIEMENS Warranty time: 1 year Payment term: 100% T/T before shipping. Package: plywooden box model YKP70100 Package size 1.7*1.4*1.5m Total weight 550kg |
