Quick Details
-
Brand Name:
-
OLYCOM
-
Product name:
-
Industrial managed poe Ethernet switch
-
Fiber Type:
-
SFP slot
-
Certification:
-
ISO9001, CE , FCC
-
Dimension:
-
158*115*60mm
-
Distance:
-
20km, 40km/60km optional
-
Power supply:
-
48V
-
Operating temperature:
-
-40°~ 75°C
-
Warranty:
-
3 Years
-
OEM/Customization:
-
Available
-
Application:
-
Transportation, telecommunications and industrial fields
Quick Details
-
Type:
-
Enterprise Switch
-
Model Number:
-
IM-FP288GW
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OLYCOM
-
Product name:
-
Industrial managed poe Ethernet switch
-
Fiber Type:
-
SFP slot
-
Certification:
-
ISO9001, CE , FCC
-
Dimension:
-
158*115*60mm
-
Distance:
-
20km, 40km/60km optional
-
Power supply:
-
48V
-
Operating temperature:
-
-40°~ 75°C
-
Warranty:
-
3 Years
-
OEM/Customization:
-
Available
-
Application:
-
Transportation, telecommunications and industrial fields
Product Description

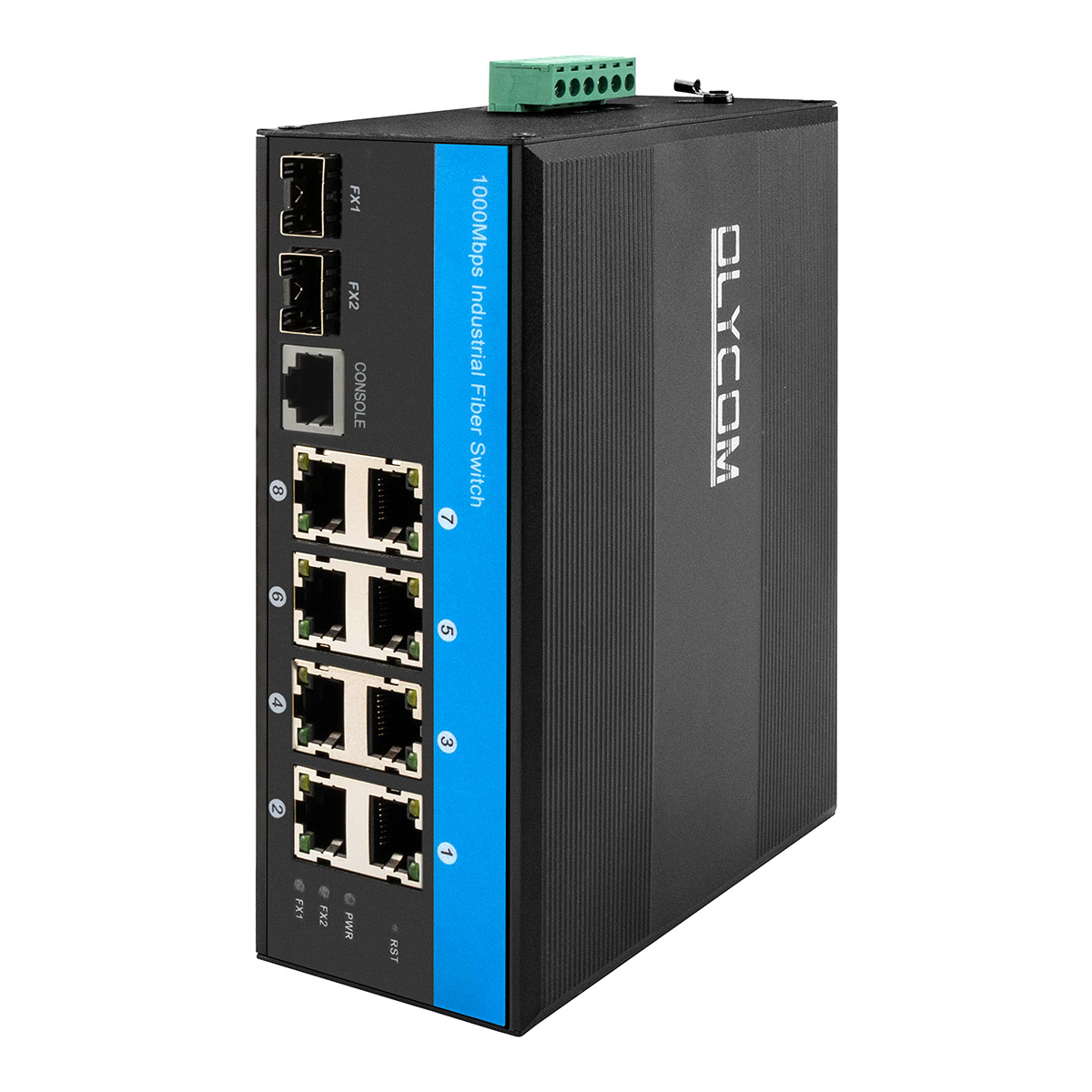

8 port LC SFP 48V Gigabit fiber optic management poe switch
|
IEEE 802.3af/at power on to 1 ~ 8 RJ45 ports
|
|
8 x 10/100/1000Mbps Auto-sensing RJ45 ports
|
|
2 x 1000Mbps SFP fiber port
|
|
6 KV Ethernet surge protection, adapt to a harsh outdoor environment
|
|
Support Auto MDI/MDIX
|
|
Operating environment temperature:-40 ° ~85 ° c
|
|
Max power to15.4W under af standard, 30W under at standard to each PoE ports
|
|
Product Name
|
10/100/1000Mbps Managed Industrial POE Fiber Switch (2F+8TP)
|
|
Model No.
|
IM-FP288GW
|
|
Port
|
2 x 1000Mpbs SFP port
SM：1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM：1310nm, 2Km; 8x10/100/1000M UTP RJ45（Support MDI/MDIX auto-sensing） |
|
Standard
|
IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344,
IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az |
|
VLAND ID
|
4096
|
|
Jumbo Frame
|
9.6KB
|
|
MAC Address Table Size
|
8K
|
|
Switching features
|
Transmission mode：storage and forward
System bandwidth：26Gbps (non-traffic jam) |
|
Network media
|
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port，transmission distance: 20Km，40Km，60Km，80Km，100Km |
|
LEDs
|
Power, network, fiber
|
|
Power supply
|
POE power supply input voltage: 48V (max 52V),
Single PoE power supply output power: 15.4W (port 1~8) (802.3at standards required special instructions) |
|
Environment
|
Working Temp：-40°～ 75°C
Storage Temp：-40°～ 85°C
Working humidity：10%～90%, non-condensing
Storage humidity：10%～95%, non-condensing
|
|
Industry Standards
|
EMI：FCC Part 15 Subpart B Class A，EN 55022 Class A
EMS：EN 61000-4-2 (ESD) Level 3，EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control：NEMA-TS2; Vibration：IEC 60068-2-6; Freefall：IEC 60068-2-32; Shock：IEC 60068-2-27; Rail Traffic：EN 50121-4 |
|
Safety
|
CE Mark, commercial ; CE/LVD EN60950
|
|
Mechanical information
|
Shell：Corrugated metal shell; Safety class：IP40
Dimension：158 x 114.8 x 60mm
Mounting method：Din-rail mounting Net weight: 0.75kg |
|
Warranty
|
Replacement within 1year; 3 years repairing
|
Support cable diagnosis and can locate the fault point
Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption
Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
Support Qos, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression , differentiated services
Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR
Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
Support IGMP agent report, MLD snooping
Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.
Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption
Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
Support Qos, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression , differentiated services
Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR
Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
Support IGMP agent report, MLD snooping
Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.
Detailed Images
Application
Packaging and Shipping
Packaging
The standard packing usually contains a 10 port managed Ethernet switch POE, a warranty card and a user manual.
Shipping
Our Advantanges
FAQ
1 Q: Can I have a sample order?
A: Yes, But the delivery fee should be paid by you.
2 Q: What is warranty time?
A: It is usually valid for one year, and 3 years for industrial products.
A: Yes, But the delivery fee should be paid by you.
2 Q: What is warranty time?
A: It is usually valid for one year, and 3 years for industrial products.
Technical support will be offered free.
