Quick Details
-
Item:
-
150w mono solar panel solar fotovoltaico
-
Dimension:
-
1476mm*671mm*35mm
-
Size and Number of cells:
-
156mm*156mm 36 Pcs / 4*9
-
Certificate:
-
CE,TUV,RoHS,SGS&ISO
-
Place of origin:
-
China Dongguan
-
Weight:
-
12Kg
-
Tolerance:
-
±3%
-
Warranty:
-
Pm is not less then 90% in 10 years and 80% in 25 years
-
Operate Temp. Scope:
-
-40/+85℃
Quick Details
-
Max. Power:
-
150w
-
Material:
-
Monocrystalline Silicon
-
Place of Origin:
-
Guangdong, China
-
Item:
-
150w mono solar panel solar fotovoltaico
-
Dimension:
-
1476mm*671mm*35mm
-
Size and Number of cells:
-
156mm*156mm 36 Pcs / 4*9
-
Certificate:
-
CE,TUV,RoHS,SGS&ISO
-
Place of origin:
-
China Dongguan
-
Weight:
-
12Kg
-
Tolerance:
-
±3%
-
Warranty:
-
Pm is not less then 90% in 10 years and 80% in 25 years
-
Operate Temp. Scope:
-
-40/+85℃

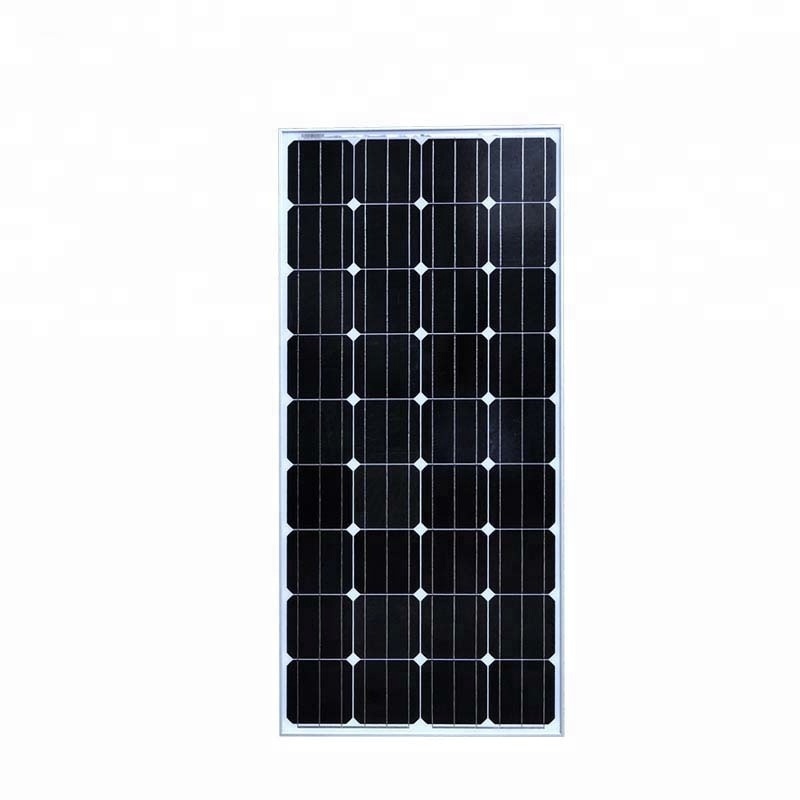

150w mono solar panel solar fotovoltaico for outdoor lighting system
| Module | SFM15036 |
| Pmax | 150W |
| Size and Number of Cells | 156mm*156mm 36 Pcs / 4*9 |
| Tolerance | ± 3% |
| Vmp | 18.18V |
| Imp | 8.26A |
| Voc | 21.6V |
| Isc | 9.08A |
| Max.Syst.Oper.Voltage | 1000V |
| Dioders | 2 by-pass |
| Dimension | 1476mm*671mm*35mm |
| Weight | 10.3Kg |
| Operate Temp.Scope | -40/+85℃ |
| Relative Humidity | 0 to 100% |
| Resistances | 227g steel ball falls down from 1m high and 60m/s wind speed |
| Warranty | Pm is not less than 90% in 10 years and 80% in 25 years |
Products advantages:
-High efficiency cell
-Strong aluminum alloy frame
-Power tolerance 3%
-Excellent weaklight performance
♥ High efficiency cell
♥ Strong aluminum alloy frame
♥ Standard tolerance (Guaranteed standard tolerance from -3~+3% ensures power output reliability)
♥ Excellent weak light performance
Excellent performance under low light environments (mornings, evenings, and cloudy days)
♥ Withstand high wind and snow loads
Entire module certified to withstand high wind loads (2400 Pascal) and snow loads (5400 Pascal)
Singfo Solar Energy Ltd.is a new energy source company integrating with research and developemnt,manufacture,technical consultation,and trading.We devote ourselves to solar energy application technology and promotion as well as popularization activities,achieving the goal of low-carbon life and green energy.
We have advanced production and quality testing equipment and repy on number of senior technical personnel and a management team in solar energy industry.we are specialized in producing solar cell modules.off-grid solar power system,and other accessories of solar energy application products such as controllers,inverters.
In addition,our company provides configuration information and technical support for assembly lines of solar cell modules and correlation equipment,developing the solar projects.We are in a rapid and stable process in solar energy industry.We make aeeforts to create a complete industrial chain of solar energy applications and promotion and also wished contributions to the green-power development of China and the world.
Payment: We accept T/T and L/C(big amount). Generally speaking, it is 30% deposit, balance before shippment.
Delivery: 25 working days after deposit confirmed.
FAQ:
1. Why choose us?
Singfo Solar is a manufacturer of solar panel for 10 years. We devote ourselves in solar power industry. We offer design, product supply,consultan and after sales service.
2. What certificate do we have?
We have TUV and ISO 9001.
3. Do we provide OEM/ODM service?
Yes, all product can be customized.
4. What about after sales service?
We offer 10 years warranty for solar panel. 1 years for off-grid solar system and 5 years for on-grid solar system.
5. Will you offer any installation guidance?
Yes, we will offer documents after shippment, video if necessary, and for big project, we can send engineer to the project site.
6. Can you ship by air/express?
I am afraid of. Because the product is overlong.
