Quick Details
-
Power:
-
40W
-
Dimension(L*W*H):
-
650*470*550mm
-
Weight:
-
30 KG
-
Product name:
-
Lab Rotary Evaporator Alcohol Distiller/Essential Oil Extractor
-
Application:
-
Vacuum distillation
-
Rotating Speed:
-
0-120rpm
-
Rotary flask:
-
5L
-
Collection flask:
-
3L
-
Vacuum degree:
-
0.098Mpa
-
Sealing:
-
PTFE
-
Water/Oil bath power:
-
1500W
-
Motor power:
-
40W
-
Lifting Mode:
-
Screw Rod Manual Lifting
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZZKD
-
Voltage:
-
220V/50HZ
-
Power:
-
40W
-
Dimension(L*W*H):
-
650*470*550mm
-
Weight:
-
30 KG
-
Product name:
-
Lab Rotary Evaporator Alcohol Distiller/Essential Oil Extractor
-
Application:
-
Vacuum distillation
-
Rotating Speed:
-
0-120rpm
-
Rotary flask:
-
5L
-
Collection flask:
-
3L
-
Vacuum degree:
-
0.098Mpa
-
Sealing:
-
PTFE
-
Water/Oil bath power:
-
1500W
-
Motor power:
-
40W
-
Lifting Mode:
-
Screw Rod Manual Lifting

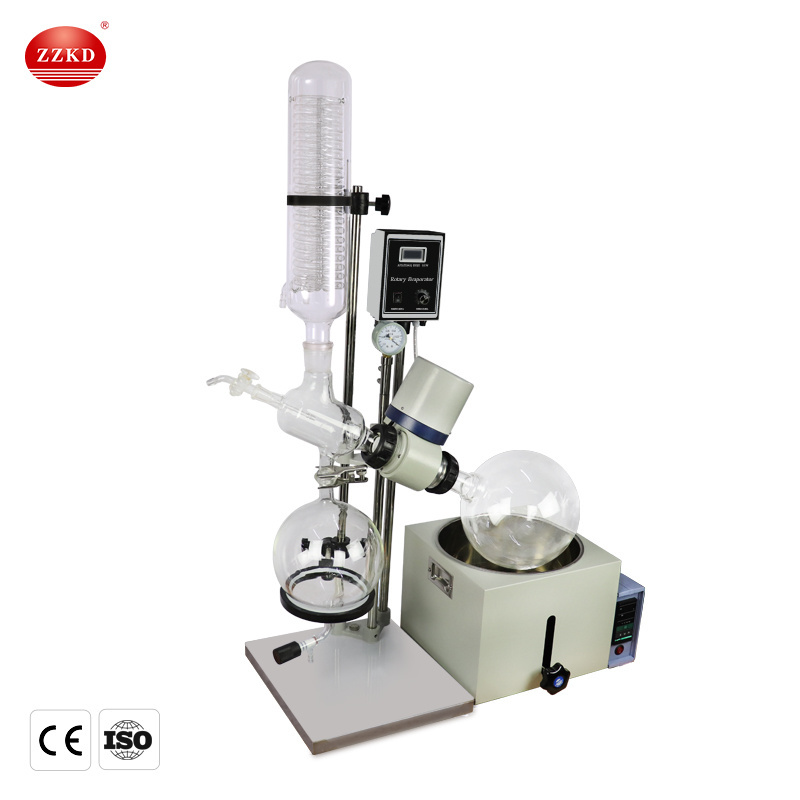

Lab Portable Rotary Evaporator Alcohol Distiller/Essential Oil Extractor
The rotary evaporator is heated by water/oil bath under negative pressure condition, while forming a thin film in the inner of evaporating flask by continuous rotation, evaporate highly, then condense and recycle the solvent simultaneously. The apparatus are particularly suitable for the heat-sensitivity material’s condensation, crystallization, separation, recovery and so on.
|
Technical Parameter |
|||
|
Model |
RE-201D |
RE-301 |
RE-501 |
|
Evaporating flask(L) |
2 |
3 |
5 |
|
Receiving flask(L) |
1 |
2 |
3 |
|
Rotating motor(w) |
40 (Stepless speed regulation) |
||
|
Rotating speed(R/min) |
0-120 |
||
|
Water(Oil) Bath Power(W) |
1200 |
1500 |
|
|
Temp control mode/range |
Intelligent digital/RT-399 ℃ |
||
|
Temp resolution |
± 2 ℃ |
||
|
Evaporation rate(L/H2O) |
>1 |
>1.5 |
>1.5 |
|
Max.vacuum degree |
<133Pa(1.33mbar.1Torr, 0.098Mpa) |
||
|
Lifting height(MM) |
0-150 |
0-120 |
0-120 |
|
Water bath size |
24*15 |
26*15 |
28*17 |
|
Sealing mode |
FTFE,fluoro rubber sealing |
||
