Quick Details
-
Usage:
-
cotton,wool,man-made fiber
-
Scope of application:
-
spinning mill
-
Color:
-
white and blue
-
Spindle number:
-
132
-
Drafting system:
-
Three roll double-short apron drafting system
-
Drafting multiple:
-
4.2-12
-
Density for yarn(Tex):
-
200-1250
-
Max mechanical speed(r/min):
-
1800
-
Control type:
-
Computerized control
-
Certification:
-
ISO9001 CE
Quick Details
-
Place of Origin:
-
Shandong, China
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Product name:
-
roving frame machine
-
Usage:
-
cotton,wool,man-made fiber
-
Scope of application:
-
spinning mill
-
Color:
-
white and blue
-
Spindle number:
-
132
-
Drafting system:
-
Three roll double-short apron drafting system
-
Drafting multiple:
-
4.2-12
-
Density for yarn(Tex):
-
200-1250
-
Max mechanical speed(r/min):
-
1800
-
Control type:
-
Computerized control
-
Certification:
-
ISO9001 CE
Application:
FA494 roving frame adopts new advanced computer control technology, adopts 3-transducer-motors drive or servo motor to run flyers,rollers,twisting and keel going up and down. Realize the four movement system synchronously matched. Easily operation,high degree of automation,good yarn quality formation,is the best choice of spinning high quality roving yarn.
Main specifications:
|
Spindle gauge(mm) |
220,194 |
|
Spindle number |
132 |
|
Package dimension(mm) |
Ø 135 × 400 |
|
Bobbin dimension(mm) |
Ø 45 × 445 |
|
Drafting system |
Three roll double-short apron drafting system |
|
Drafting multiple |
4.2-12 |
|
Length for fiber |
51-65 |
|
Density for yarn(Tex) |
200-1250 |
|
Pressing form |
Pendulum spring press,pneumatic weight arm. |
|
Bottom roller diameter(mm) |
Ø 32, Ø 28.5 |
|
Top roller diameter(mm) |
Ø 28.8, Ø 25 |
|
Cleaning device |
Positive rotary with belt cleaning revolving overhead cleaner |
|
Max mechanical speed(r/min) |
1800 |
|
Transmission device |
Frequency inverter motor |
|
Control type |
Computerized control |
|
Man-machine interaction |
Touch screen |
|
Winding transmission |
Gear transmission |
|
Flyer transmission |
Gear transmission |
|
Winding power shaft |
Universal shaft |
|
Revising device |
Software |
|
Can diameter(mm) |
Ø 400 ( Ø 500, Ø 600) |
|
Motor power |
28.02 |
|
Noise standard |
85 |
|
Overall dimension (mm) |
13900 × 4035 |
|
Weight (t) |
12 |

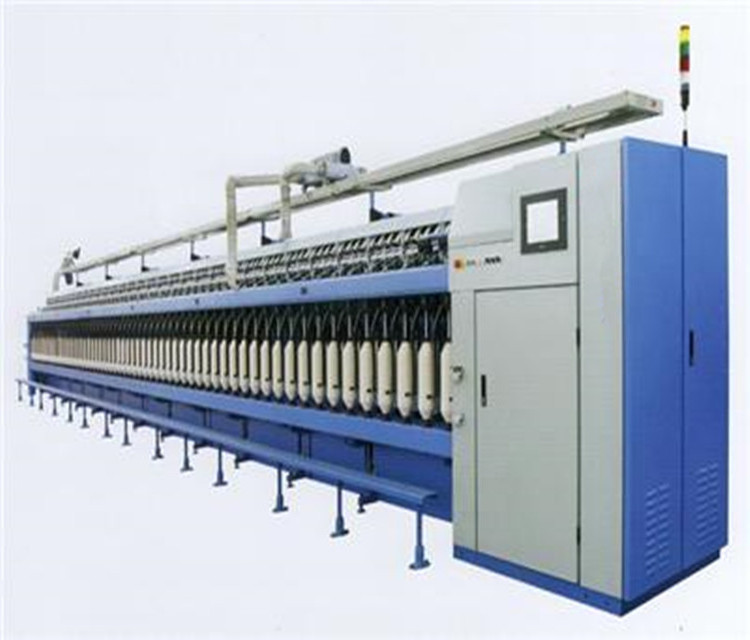

product picture
applicalble raw material
final product
Export standard package
1) wooden case/polywood case
2) plastic foam packing
3) nude packing
1) Engineers available for overseas service according to request.
2) Any machine from our factory has one year guarantee.
3) 24-hour technical support via email,telephone,skype,whatsapp,TM etc.
4) manual book in English version with details.
