Quick Details
-
Product Name:
-
Digital Pirani Vacuum Pressure Gauge
-
Material:
-
Stainless Steel Case
-
Range:
-
0.1~0~60MPa
-
Pressure range:
-
0.1-0...100MPa
-
Application:
-
Pressure Gauge Calibration
-
Name:
-
Pressure Gauge Tester
-
Type:
-
Gas Pressure Manometer
-
Thread:
-
G/PT/NPT 1/8
-
Refrigerant:
-
R134A R410A R22A R404A
-
Item name:
-
Lpg Gas Gauge
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GN
-
Model Number:
-
CX-PRN10
-
Product Name:
-
Digital Pirani Vacuum Pressure Gauge
-
Material:
-
Stainless Steel Case
-
Range:
-
0.1~0~60MPa
-
Pressure range:
-
0.1-0...100MPa
-
Application:
-
Pressure Gauge Calibration
-
Name:
-
Pressure Gauge Tester
-
Type:
-
Gas Pressure Manometer
-
Thread:
-
G/PT/NPT 1/8
-
Refrigerant:
-
R134A R410A R22A R404A
-
Item name:
-
Lpg Gas Gauge
Product Description
Feature
* One-button smart calibration: automatic identification of atmosphere and high vacuum
* Temperature monitoring corrects vacuum, accuracy is not affected by ambient temperature
* Analog and digital dual output form, wide range of applications
* KF16 standard flange and RJ45 electrical plugs are used for easy installation and wiring.
* Inter Highly compatible with the interface of international mainstream brands, the division is seamlessly replaced
* All stainless steel measuring chamber is suitable for high clean ultra high vacuum environment
* The shape is exquisite and compact, saving equipment space.
* It has stable performance and long service life.
* Temperature monitoring corrects vacuum, accuracy is not affected by ambient temperature
* Analog and digital dual output form, wide range of applications
* KF16 standard flange and RJ45 electrical plugs are used for easy installation and wiring.
* Inter Highly compatible with the interface of international mainstream brands, the division is seamlessly replaced
* All stainless steel measuring chamber is suitable for high clean ultra high vacuum environment
* The shape is exquisite and compact, saving equipment space.
* It has stable performance and long service life.
|
Product Name
|
CX-PRN10 High Precision Digital Vacuum Gauge
|
|
Wetted material
|
SS316L,tungsten, kovable,glass
|
|
Measuring range
|
1.0×10-1 ~ 1.0×10+5 Pa(Air,N2)(other gas need to calibrate accordingly)
|
|
Accuracy
|
1.0×10-1 ~ 1.0×10+4 Pa:±15%
1.0×10+4 ~ 1.0×10+5 Pa:±50% |
|
Repetition
|
1.0×10-1 ~ 1.0×10+3 Pa:±2%
1.0×10+3 ~ 1.0×10+5 Pa:±5% |
|
Data collection
|
Resolution:1%;response time:<100ms
|
|
Temp characteristics
|
Working temperature:0℃~+45℃;Storage temperature:-40℃~+75℃
|
|
Probe Baking temperature
|
180℃Max.(Removal of electronic control unit)
|
|
Maximum power
|
1.5 Max.
|
|
Power supply
|
+24V(±20%)/0.5A(Apply to: +5.0VDC -- +32VDC)
|
|
Electric signal Interface
|
RJ45 Network port(Analog voltage, RS485, power input, type identification terminal)
|
|
Vacuum chamber
|
Interface:DN16ISO-KF(other optional);maximum pressure:1.5×10+5 Pa
|

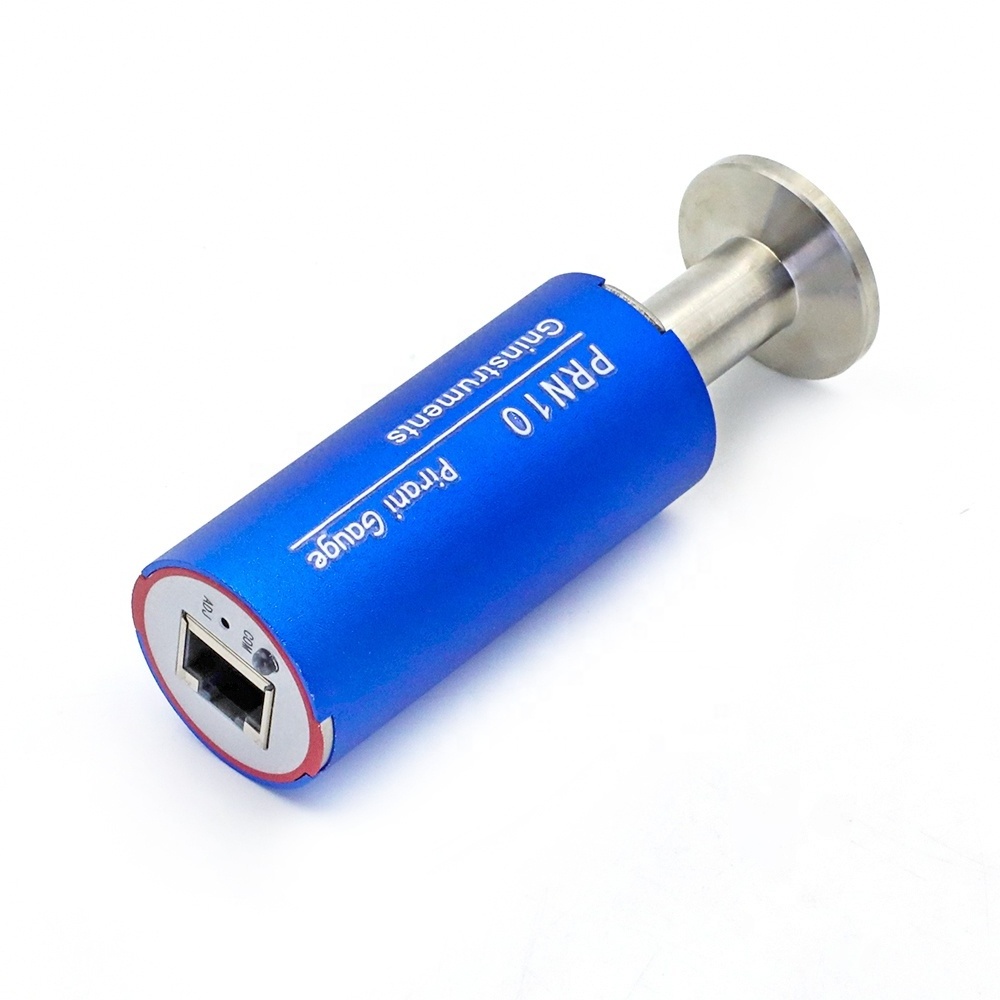

Product Show
