Quick Details
-
Brand Name:
-
DONTA
-
Model Number:
-
TR248A
-
Beam Angle(°):
-
120
-
CRI (Ra>):
-
80
-
Lamp Luminous Flux(lm):
-
8000
-
Working Temperature(℃):
-
-20 - 60
-
Product Weight（kg）:
-
15
-
Material:
-
Aluminum Alloy
-
Power:
-
80W
-
LED Chip:
-
SMD3030
-
Solar panel:
-
18V 70W, Monocrystalline
-
Charging time:
-
6H
-
Product name:
-
premium solar street light
-
Sensor:
-
radar induction
-
Usage:
-
Street Road Garden Square
-
Battery:
-
LiFePO4
-
Function:
-
Smart Control Function
Quick Details
-
Warranty(Year):
-
3-Year
-
Lighting solutions service:
-
Lighting and circuitry design, Onsite metering, DIALux evo layout, LitePro DLX layout, auto CAD layout, Agi32 layout
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DONTA
-
Model Number:
-
TR248A
-
Beam Angle(°):
-
120
-
CRI (Ra>):
-
80
-
Lamp Luminous Flux(lm):
-
8000
-
Working Temperature(℃):
-
-20 - 60
-
Product Weight（kg）:
-
15
-
Material:
-
Aluminum Alloy
-
Power:
-
80W
-
LED Chip:
-
SMD3030
-
Solar panel:
-
18V 70W, Monocrystalline
-
Charging time:
-
6H
-
Product name:
-
premium solar street light
-
Sensor:
-
radar induction
-
Usage:
-
Street Road Garden Square
-
Battery:
-
LiFePO4
-
Function:
-
Smart Control Function
super bright outdoor waterproof municipal premium integrated led solar street light automatic motion sensor

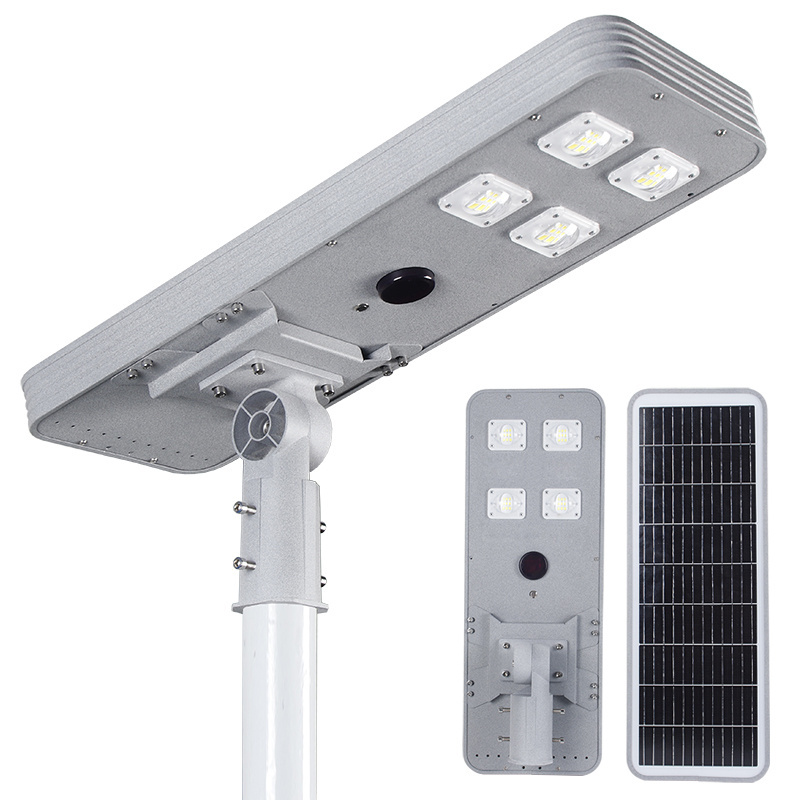

All in one solar street light is a new kind of solar led street light for the road lighting. Its solar panel,LED lamp, controller, battery are all integrated inside the lamp then it is very easy for the installation. In addition, there is a brightness sensor on the lamp. If the brightness is enough, the solar panel can absorb the solar energy for battery charging, while if the brightness is not enough, the LED lamp will be on automatically and the battery will supply the energy to the lamp for area illumination. What’s more, the lamp can be customized with motion sensor or time control mode. Its brightness standard can be adjusted by movement or time schedule. It has solved the problem of complex installation and expensive transportation compared with traditional solar LED street light.Waterproof and replaceable LED modular for easy maintenance.
| Product Name | premium solar street light |
| LED Chips | SMD3030 |
| Solar panel | 18V 70W (solarworld monocrystalline silicon) |
| Battery | 12.6V,26.4AH Li-battery |
| Luminous flux | 4000-5000lm |
| Discharge Time | Full power 15 hours,Half power 30 hours |
| Charge Time | 6 hours |
| Install distance | Install hight:6-12M / Install horizontal spacing :20-40M |
| Working time | Light 10 to 12 hours every day, sustainable 3-5 rainy day |
| Switching mode | time control + light sensor control+ motion sensor control |
| Light body material | Aluminium alloy |
| Warranty | 3 years |
| Application | Street Road Square Park Garden Courtyard Outdoor Parking Lot, etc. |
Integrated solar LED street light cannot work without sunshine charging, please select the suitable product model according to the local sunshine radiation and the annual total radiation.
Solar street light adopts the long life Lithium battery for storing energy,charging temperature at daytime is between: 0°C~+65°C, when temperature goes lower than 0°C, the control system will stop automatically to protect the battery, and it will revive to charge the battery while temperature goes higher than 0°C. Discharging temperature at night is between: -20°C~+65°C, any ambient beyond will bring damage to the battery. Please confirm your local extreme temperature is suitable for above while selecting the street light.
Battery of the “All in one
solar street light
” can be stored for 6 months long after full charged, and please examine, charge it periodically after long time transportation to prevent damage.
While installed in Northern Hemisphere, please make sure the surface of the solar panel to be facing the South to collect maximum sunshine radiation, while installed in Southern Hemisphere, please make sure the surface of the solar panel to be facing the North to collect maximum sunshine radiation. At the same tie please keep it away from any shadow of house, trees etc.
Keep cleaning the surface of the integrated solar LED street light with normal detergent to get maximum power generation, clean the dust or tree leaves or any grease.
