Quick Details
-
Size:
-
9 inch
-
Resolution:
-
2560*1600
-
Outline Dimension:
-
197.60*129.60 (H)(typ.)
-
Active Area:
-
192.0 * 120.0 (H*V) mm
-
Brightness:
-
500 cd/m*m (Typ.)
-
Work Mode:
-
IPS,Normally Black, Transmissive
-
Contrast Ratio:
-
1200 : 1 (Typ.) (TM)
-
Signal Interface:
-
MIPI (2ch, 4data lanes) , Connector , 61 pins
-
Refresh Rate:
-
60Hz
-
Lamp Type:
-
6S6P WLED , No Driver
Quick Details
-
Type:
-
MIPI
-
Brand Name:
-
TOP
-
Place of Origin:
-
Guangdong, China
-
Size:
-
9 inch
-
Resolution:
-
2560*1600
-
Outline Dimension:
-
197.60*129.60 (H)(typ.)
-
Active Area:
-
192.0 * 120.0 (H*V) mm
-
Brightness:
-
500 cd/m*m (Typ.)
-
Work Mode:
-
IPS,Normally Black, Transmissive
-
Contrast Ratio:
-
1200 : 1 (Typ.) (TM)
-
Signal Interface:
-
MIPI (2ch, 4data lanes) , Connector , 61 pins
-
Refresh Rate:
-
60Hz
-
Lamp Type:
-
6S6P WLED , No Driver

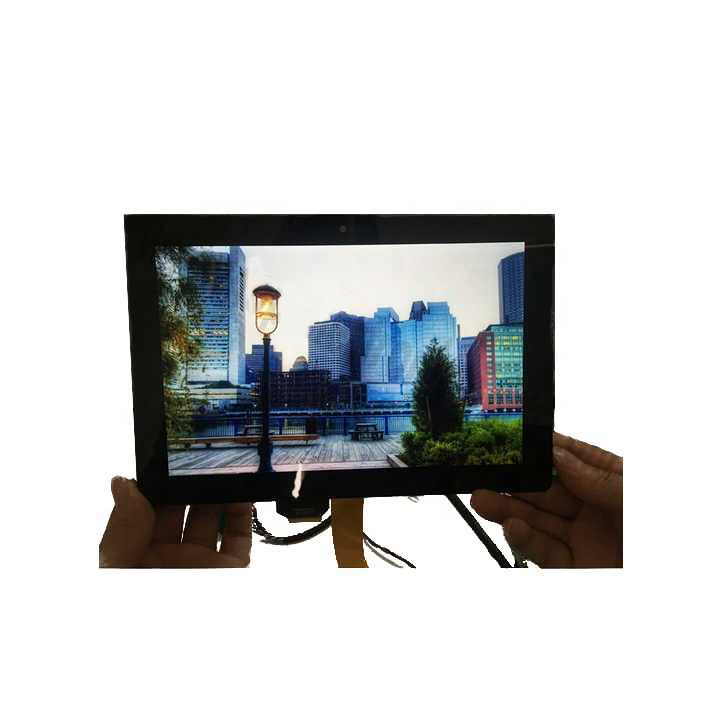

9 inch 2560X1600 2K IPS screen MIPI display with projected capacitive touch screen panel
Main Specifications:
|
Items |
Specifications |
Unit |
Remarks |
|
Screen Type |
LCM , LTPS TFT-LCD |
|
|
|
Active area |
192.0 × 120.0 (H×V) |
mm |
|
|
Pixel format |
2560×1600 |
Pixel |
|
|
1 Pixel=R+G+B dots |
- |
|
|
|
Signal Type |
MIPI (2ch, 4data lanes) , Connector , 61 pins |
|
|
|
Pixel configuration |
R,G,B vertical stripes |
- |
|
|
Display mode |
IPS,Normally Black, Transmissive |
- |
|
|
Brightness |
500 cd/m2 (Typ.) |
- |
|
|
Contrast Ratio |
1200 : 1 (Typ.) (TM) |
- |
|
|
Refresh Rate |
60Hz |
|
|
|
Outline dimensions |
197.60x129.60 (H)(typ.) |
mm |
Note 3-1 |
|
Backlight |
6S6P WLED , No Driver |
|
|
