Quick Details
-
Model Number:
-
LNK-M3011-SFP
-
Place of Origin:
-
Guangdong, China
-
Access mode:
-
10/100/1000Mbps Gigabit Ethernet
-
Fiber Port:
-
SFP - 100/1000M adaptive
-
Wavelength:
-
850nm/1310nm/1550nm(Based on SFP Module used)
-
Power supply:
-
DC 5V (Type-C)
-
Power consumption:
-
<3W
-
Operating temperature:
-
0~45°C
-
Weight:
-
46g
-
Dimensions (W x D x H):
-
78 x 27 x 18 mm
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Brand Name:
-
E-link
-
Model Number:
-
LNK-M3011-SFP
-
Place of Origin:
-
Guangdong, China
-
Access mode:
-
10/100/1000Mbps Gigabit Ethernet
-
Fiber Port:
-
SFP - 100/1000M adaptive
-
Wavelength:
-
850nm/1310nm/1550nm(Based on SFP Module used)
-
Power supply:
-
DC 5V (Type-C)
-
Power consumption:
-
<3W
-
Operating temperature:
-
0~45°C
-
Weight:
-
46g
-
Dimensions (W x D x H):
-
78 x 27 x 18 mm
Products Description

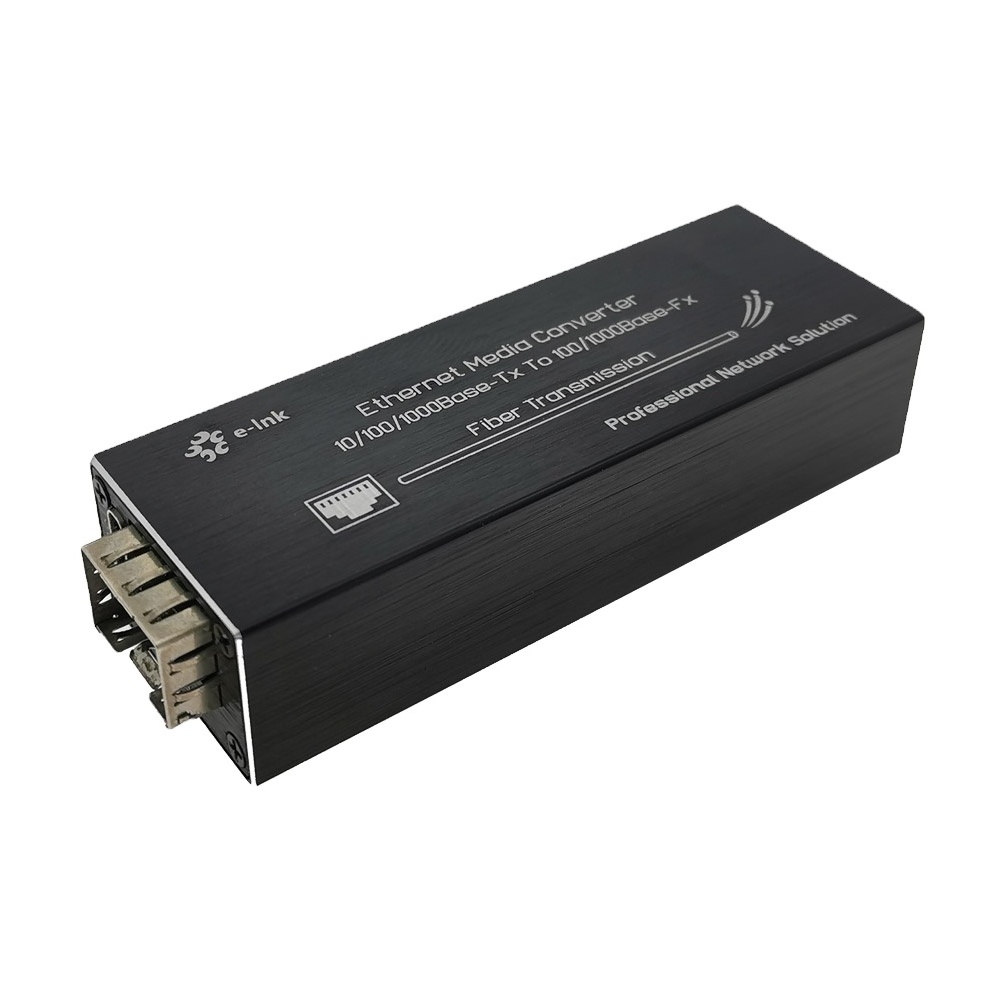

LNK-M3011-SFP 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.
When plugged into a computer’s USB port, the media converter shuts down automatically when you turn off the computer, which saves energy. Micro Mini Media Converters are excellent solutions for fiber-to-the-laptop applications where you need Gigabit fiber connectivity but local power isn’t available.
|
Product Name
|
Mini SFP Media Converter
|
|
|
|
|
Connector
|
One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs, One Optical port: SFP
|
|
|
|
|
LED indicator
|
PWR (Power supply)
TX (LINK100/1000, TP cable rate 100/1000M)
FX/ACT (Optical link action /TP cable packet forwarding action)
|
|
|
|
|
MTBF
|
100,000 hours
|
|
|
|
|
Input Power
|
DC 5~15V (Type-C)
|
|
|
|
|
Casing
|
Aluminum Case
|
|
|
|
|
Operating temperature
|
0~45ºC
|
|
|
|
|
Dimensions (WxDxH)
|
78 x 27x 18 mm
|
|
|
|
|
Weight
|
46g
|
|
|
|
Specification
