Quick Details
-
Place of Origin:
-
China
-
Dimension(Long * Breadth * High):
-
3100*1150*1500mm
-
Machine Weight:
-
670 kg
-
Marketing Type:
-
New Product 2024
-
Warranty of core components:
-
1 year
-
Model:
-
LK200E
-
Loading capacity:
-
2000kg
-
Battery capacity:
-
72V
-
Rear axle:
-
Direct coupling way
-
Working Time:
-
10-12 h
-
Lifting Motor Power:
-
1000W
-
Driving Motor Power:
-
4000W(Brushless motor)
-
Front Tire:
-
5.00-14
-
Mining tire:
-
6.00-16 or 6.50-16
-
Color:
-
Can be customized
Quick Details
-
Engine Brand:
-
lianke
-
Power:
-
4KW
-
Brand Name:
-
lianke
-
Place of Origin:
-
China
-
Dimension(Long * Breadth * High):
-
3100*1150*1500mm
-
Machine Weight:
-
670 kg
-
Marketing Type:
-
New Product 2024
-
Warranty of core components:
-
1 year
-
Model:
-
LK200E
-
Loading capacity:
-
2000kg
-
Battery capacity:
-
72V
-
Rear axle:
-
Direct coupling way
-
Working Time:
-
10-12 h
-
Lifting Motor Power:
-
1000W
-
Driving Motor Power:
-
4000W(Brushless motor)
-
Front Tire:
-
5.00-14
-
Mining tire:
-
6.00-16 or 6.50-16
-
Color:
-
Can be customized
Product Description
Quality-Assured electric garbage tricycle/new diesel mini dumper truck with cheap price
Our company is Zhengzhou Lianke Machinery Manufacturing Co., Ltd.,We are Alibaba's real -certified factory, The following vehicle is customized by customer. This LK200E electric dumper Equip with 72V4000W motor and use direct coupling way rear axle without chains

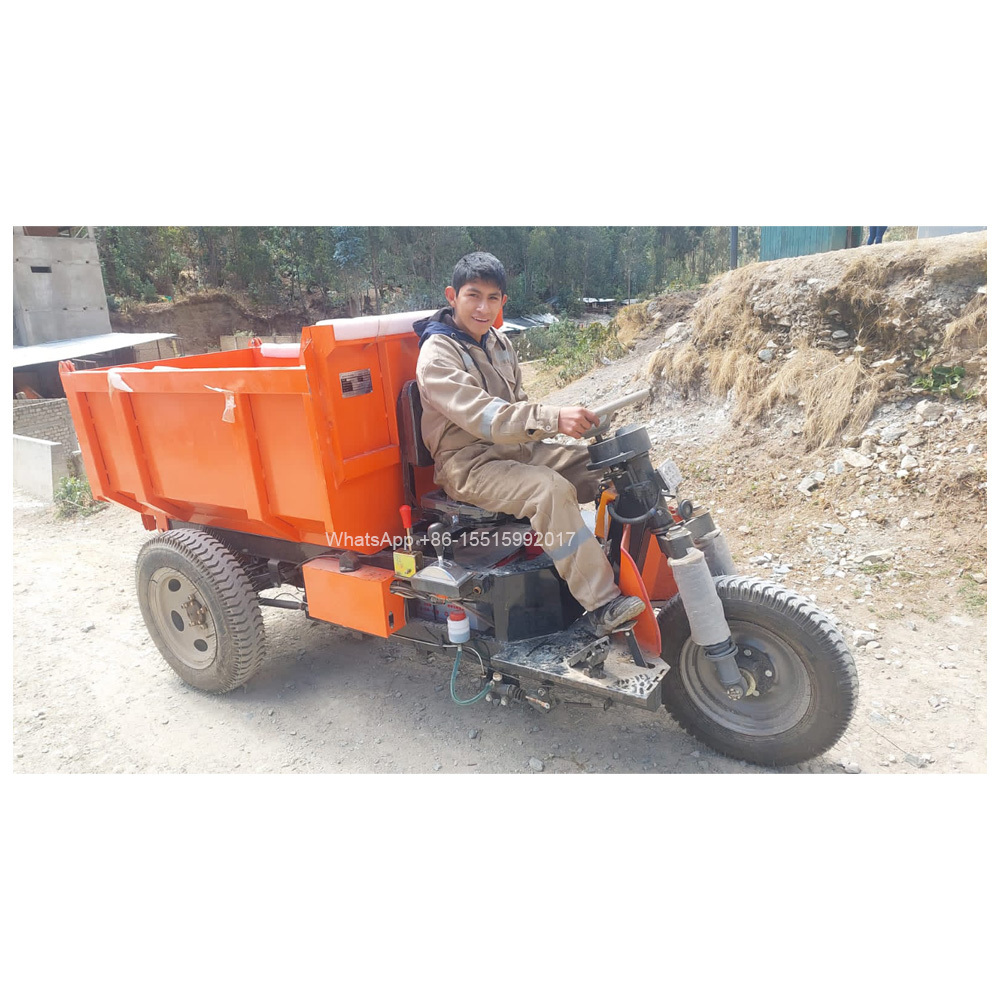

Feedback from customers after picking up the goods
Warranty
(1)15 months' warranty,
Calculated after the goods arrive at the destination port.(Warranty parts will be sent to you when your next order's container is shipped)For the dumper which is damaged under warranty (Non-human damage), Must provide dumper's VIN plate photos, and photos/videos of damaged parts.
(2)We will try our best effort to solve, whenever customers have a problem.
|
LK200E electric dumper load 2000kg
|
|
|
|
|||
|
Loading capacity
|
2000kg
|
Overall size
|
3100*1150*1500mm
|
|||
|
Hopper size
|
1600*1150*600mm
|
Mining tire
|
5.00-14/6.00-16
Brand:Huanyan
|
|||
|
Driving type
|
Direct coupling way rear axle without chains
|
Driving motor
|
72V4000W (Brushless motor)
|
|||
|
Lifting motor
|
72V1000W
|
Battery
|
Lead-acid (water) battery, 40kg/piece
|
|||
|
Battery quantity
|
6pcs*12V=72V
|
Brake
|
Hydraulic brake
|
|||
|
Hopper thickness
|
5mm
|
Front shock absorption type
|
Single row large shock absorber(SHIFENG)
|
|||
|
Loading plan
|
A 40'HC Container can hold 20 sets LK200E electric dumpers
|
|
|
|||
|
After service and Guarantee
|
15 months' warranty, Calculated after the goods arrive at the destination port.
|
|
|
|||
Detailed configuration
Direct coupling way rear axle and motor
The motor directly acts on the rear axle, without the friction of the chain, high speed, and configured high and low speed gear, strong climbing ability.Configure 72V4000W brushless motor and controller ,more powerful.
Brand:
DATAI
Brake and speed
1.Configure oil brake system，the braking ability is better
2.Configure brushless motor,
More suitable for high-altitude and low-temperature environments
3.Configure direct coupling way rear axle, it has High speed, strong climbing ability
4.Point on the controller box is conducive to the controller heat dissipation
3.Configure direct coupling way rear axle, it has High speed, strong climbing ability
4.Point on the controller box is conducive to the controller heat dissipation
Oil pump for closed processing
Some customers reported that there is a lot of dust and humidity in the mining area, which often adheres to the outer surface of the oil pump, so that the dumper looks dirty. in 2024 ,we start to make improvement.please check the picture below.
Front shock absorption
On the left is the standard configuration of the LK200E electric dumper, which uses a single row of large shock absorbers.On the right are optional configurations that use dual row shock absorbers.
Spring steel plate updated to 21kg
We use thickened and width spring Spring Steel Plate, and the weight is 21kg, The Bearing Capacity is Stronger, it is not easy to be crushed, and the shock action is better.
Battery
Standard battery: Lead-acid batteries(Water battery/Liquid battery) ,one piece weight is 40kg ,and 6 pieces batteries are used,total is 72V.
Optional battery:Dry battery,Suitable for high -altitude or cold areas,the dry battery we have 12V80AH ,12V100Ah and 12V120Ah,and the price are different.
Optional battery:Dry battery,Suitable for high -altitude or cold areas,the dry battery we have 12V80AH ,12V100Ah and 12V120Ah,and the price are different.
Mining tire
Front tire:5.00-14Rear tire:6.00-16 .large tires can be customized ,such as 6.50-16.7.00-16
Brand:HUANYAN
Brand:HUANYAN
Controller box and Air Switch
We have drilled holes in the controller box to prevent the controller from heating up,Air switches are used on vehicles, and when the vehicle is overused, the power supply will automatically disconnect to avoid damage to electrical components on the vehicle.
The thickness of the bottom plate hopper and the hings can be added
The standard thickness of the bottom plate is 5mm,it is enough for using in the mine ,But if your dump truck needs to be transferred large, the sharp stones or materials are dropped into the vehicle's hopper from the high place, you can also customize the thicker bottom plate
Workshop Show
1.New frame design, using laser cutting machine, the cargo box and the frame are mutually matched.
The first picture is the rectangular tube after laser cutting, we cut it where it needs to be bent. The second is the girder that is bent after cutting. The third picture is the finished frame, you can see that the outer edge of the finished frame is bent without any welding.
Integrated bending machine and shot blasting machine production and spray production line
One-piece bending cargo box. The cargo box and the produced frame enter the shot blasting machine for rust removal.
