Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RAY FINE TECH
-
Weight (KG):
-
55 KG
-
Marking Area:
-
optional
-
Laser Power:
-
60W 80W 100W
-
Laser source:
-
JPT MOPA
-
Laser wavelength:
-
1064nm
-
Applicable Material:
-
Metal Nonmetal Materials
-
After-sales Service Provided:
-
Online Support Video Technical Support
-
Field lens:
-
Optional
-
Lifting mode:
-
Electric lift
-
Galvanoscope:
-
OUYA
-
Power source:
-
Meanwell power supply
-
Product name:
-

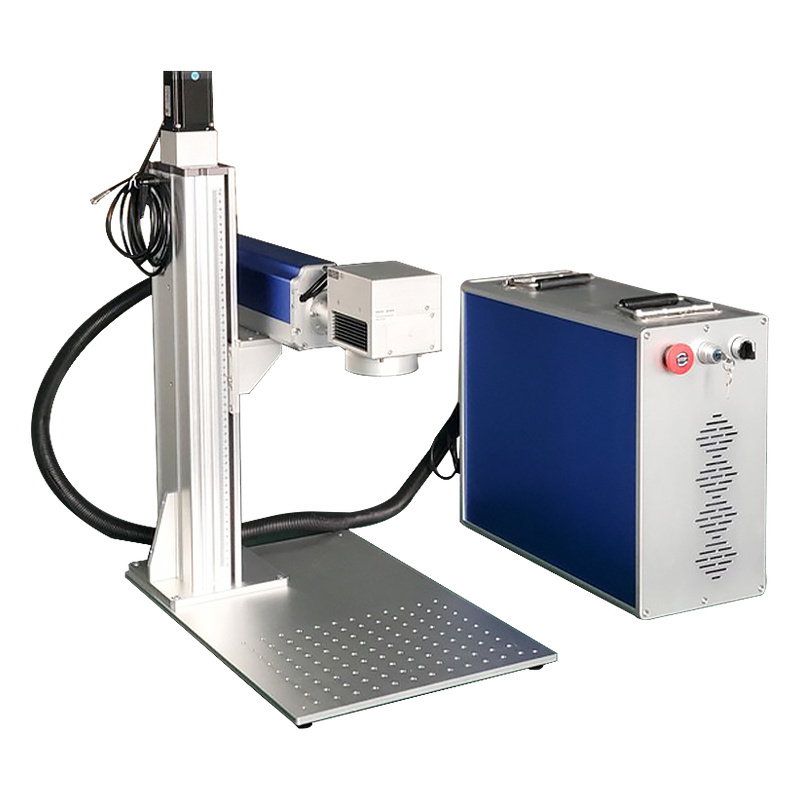

Portable Split Laser Marking Machine
Quick Details
-
Working Accuracy:
-
0.002mm
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RAY FINE TECH
-
Weight (KG):
-
55 KG
-
Marking Area:
-
optional
-
Laser Power:
-
60W 80W 100W
-
Laser source:
-
JPT MOPA
-
Laser wavelength:
-
1064nm
-
Applicable Material:
-
Metal Nonmetal Materials
-
After-sales Service Provided:
-
Online Support Video Technical Support
-
Field lens:
-
Optional
-
Lifting mode:
-
Electric lift
-
Galvanoscope:
-
OUYA
-
Power source:
-
Meanwell power supply
-
Product name:
-
Portable Split Laser Marking Machine
For more details and offer, please contact me.
Product Description
Fiber laser marking machine features
1. Long lifespan 100000 hours
2. No consumable materials, Zero-maintenance
3. Excellent beam quality to achieve fine small marking
4. Can marking various figure, character, logo, bar code, bitmap, two-dimension code, photo etc
5. Support PLT, PCX, DXF, BMP, AI, vector graphics, bitmap etc
6. Stable equipment performance, continuous 24 hours workings.
2. No consumable materials, Zero-maintenance
3. Excellent beam quality to achieve fine small marking
4. Can marking various figure, character, logo, bar code, bitmap, two-dimension code, photo etc
5. Support PLT, PCX, DXF, BMP, AI, vector graphics, bitmap etc
6. Stable equipment performance, continuous 24 hours workings.
Main configuration
Elevator wheel:
Aviation aluminum alloy material, high precision density scale. accurate view of positioning size.
High quality scan head:
The marking head comes with double red light. Convenient for your marking.
Switch button:
Humanized control system, easy to learn, safe and convenient, dust proof design.
F-theta-lens:
75*75mm 110*110mm175*175mm 220*220mm
300*300mm
Have the above size for you to choose.
300*300mm
Have the above size for you to choose.
JPT Laser source:
Good beam quality, high energy density, wide modulation frequency, high reliability, long life, maintenance-free operation
EZCAD Control card:
Genuine EZCAD control system compatible with win7/8/10.
Product Parameters
|
Laser power(w)
|
60w
|
80w
|
100w
|
||
|
Max pulse energy(mj)
|
1.5
|
2
|
1.5
|
||
|
Pulse duration(ns)
|
2-350
|
|
|
||
|
Pulse repetition rate range (KHZ)
|
1-4000
|
|
|
||
|
Laser beam quality M2
|
<1.5
|
<1.4
|
|
||
|
Min. Character size
|
0.2mm
|
|
|
||
|
Repetition Accuracy
|
<8urad
|
|
|
||
|
Wavelength
|
1064nm
|
|
|
||
|
Power consumption
|
170W
|
|
|
||
|
Cooling type
|
Air cooling
|
|
|
||
|
Supply voltage
|
AC110V 60HZ or AC220V 50HZ
|
|
|
||
|
Marking Area
|
75-300mm （option）
|
|
|
||
|
Max working speed
|
8000mm/s
|
|
|
||
|
Laser spot (110x110)
|
25.4μm
|
|
|
||
Product application
Free productions
Packing & Shipping
packing and shipping
1. Collect all accessories and spare parts one by one according to the order list, and double check all parts again to make sure all parts are included.
2. Our packaging standards:
+thick cling film
+six-sided pearl cotton
+High strength wooden box
+ Pack the belt and then secure the machine to ensure the machine is safe during transport
3. Paste the shipping mark to ensure that the buyer can easily identify the correct machine
4. A safety sign can be used to remind the transporter to keep our equipment in the course of transportation
Our Factory
FAQ
Q1: How to choose machine?
A1: You can tell us your working material, detail work by picture or video so
that we can recommend the most suitable model for you.
Q2: Are you a factory or trading company?
A2: We are the manufacturer. As only the machine made by ourselves, quality
can be trusted, and most important thing is we can do better service after
sales. We know how to fix the problem in each parts easily. So welcome to
visit to our factory.
Q3: what's the payment term?
A3: We accept: TT, Alibaba trade assurance order, L/c etc.
100% of total amount in advance Or 30% deposit in advance and 70% balance
before delivery.
Q4: How about the delivery time？
A4: For normal machines we can send out the machine within 5-7 days after
receive the full payment.
For non standard machines and customized machines according to client's
specific requirements, it would be 15 to 30 days.
Q5: How can I know your machine is work well?
A5: Before delivery, we have tested every machine and shoot some test video
for you. If you have special production condition, we can adjust machine for
you according to your work requirements.
Q6: How can I get support from you ?
A6: Our engineers are online for 24 hours, they can check the problems and
give you solution very soon.
If you don't know how to use the machine, We have English manual and CD video
for machine using and maintaining , that will be delivery with machine. And we
supply service through email, telephone, online, Whats App skype etc.
Or If you're interesting come to China, we will offer you free training until
you can use machine freely.
A1: You can tell us your working material, detail work by picture or video so
that we can recommend the most suitable model for you.
Q2: Are you a factory or trading company?
A2: We are the manufacturer. As only the machine made by ourselves, quality
can be trusted, and most important thing is we can do better service after
sales. We know how to fix the problem in each parts easily. So welcome to
visit to our factory.
Q3: what's the payment term?
A3: We accept: TT, Alibaba trade assurance order, L/c etc.
100% of total amount in advance Or 30% deposit in advance and 70% balance
before delivery.
Q4: How about the delivery time？
A4: For normal machines we can send out the machine within 5-7 days after
receive the full payment.
For non standard machines and customized machines according to client's
specific requirements, it would be 15 to 30 days.
Q5: How can I know your machine is work well?
A5: Before delivery, we have tested every machine and shoot some test video
for you. If you have special production condition, we can adjust machine for
you according to your work requirements.
Q6: How can I get support from you ?
A6: Our engineers are online for 24 hours, they can check the problems and
give you solution very soon.
If you don't know how to use the machine, We have English manual and CD video
for machine using and maintaining , that will be delivery with machine. And we
supply service through email, telephone, online, Whats App skype etc.
Or If you're interesting come to China, we will offer you free training until
you can use machine freely.
