Quick Details
-
Place of Origin:
-
Japan
-
Brand Name:
-
HRS
-
Model Number:
-
DF22A-1416SCA
-
Connector Type:
-
Contact, Socket, Header, In-line plug, Accessory
-
Operating Temperature Max:
-
85 ℃
-
Mounting Pitch:
-
7.92 mm
-
Mating/Unmating Cycles:
-
50
-
Connector Orientation:
-
Straight, Right angle
-
Operating Temperature Min.:
-
-55 ℃
-
Mounting Style:
-
THT
-
Contact Pitch:
-
7.92 mm
-
Contact Plating:
-
Gold
-
Recommended Wire Type:
-
Discrete wire
Quick Details
-
Type:
-
Wire-to-Board
-
Application:
-
Power
-
Gender:
-
Male,Female
-
Place of Origin:
-
Japan
-
Brand Name:
-
HRS
-
Model Number:
-
DF22A-1416SCA
-
Connector Type:
-
Contact, Socket, Header, In-line plug, Accessory
-
Operating Temperature Max:
-
85 ℃
-
Mounting Pitch:
-
7.92 mm
-
Mating/Unmating Cycles:
-
50
-
Connector Orientation:
-
Straight, Right angle
-
Operating Temperature Min.:
-
-55 ℃
-
Mounting Style:
-
THT
-
Contact Pitch:
-
7.92 mm
-
Contact Plating:
-
Gold
-
Recommended Wire Type:
-
Discrete wire
Specification
|
Mfr. Series
|
DF22A-1416SCA
|
|
Product Category
|
Double Rows Low Profile
Board-to-Cable Connectors
Automatic equipment board placement
|
|
Lead Time
|
1-3 Working Days
|
|
Payment Terms
|
Paypal, Credit Card, Western Union, T/T, L/C
|
|
Shipping Ways
|
By Express UPS, FedEx, DHL or by sea shipment
|
Product Description

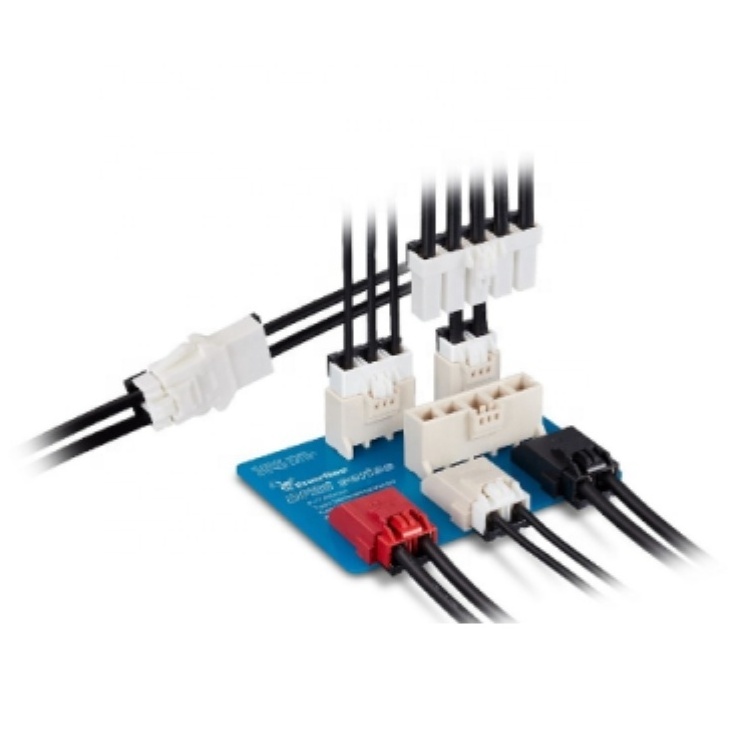

DF22
Series
Features:
1. Rated up to 30A
2. Positive Locking Function
3. Prevention of Incorrect Connections
4. Molded-in contact retention tabs
5. Prevention of incorrect board placement
6. Supports resin sealing
7. Prevention of Short Circuits between Adjacent Contacts
8. Increased Retention Force of Crimped Contacts
9. Full Line of Crimp Socket Contacts
10. In-line Connections
11. UL, C-UL, and TÜV Certified.
12. Glow Wire compliance (Compliant with IEC 60695-2-11)
Caution:
Please use a retainer to reduce the load on the Crimp socket or In-line plug connector.
Gold-plated products are standard for this product in order to support high current. Be sure to select a gold-plated product for
use in an environment with temperature changes and vibration.
*Tin and Tin Copper: Scheduled to be discontinued
