Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
WISINE
-
Product name:
-

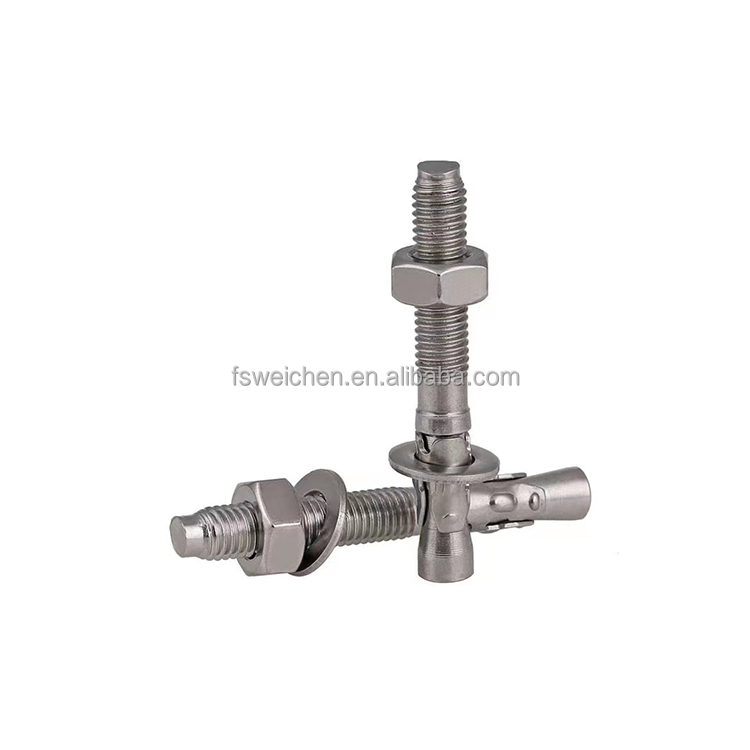

Expansion bolt stainless steel wedge anchor
-
Type:
-
Wedge anchor
-
Length:
-
50mm,65-300mm
-
Grade:
-
A2-70/A4-80
-
Keyword:
-
Anchor bolt,Expansion Bolt
-
Certificate:
-
ISO9001:2008
-
Packing:
-
Small Packing+Carton Packing+Pallet
Quick Details
-
System of Measurement:
-
INCH, Metric
-
Material:
-
Stainless Steel
-
Capacity:
-
500kg
-
Place of Origin:
-
China
-
Brand Name:
-
WISINE
-
Product name:
-
Expansion bolt stainless steel wedge anchor
-
Type:
-
Wedge anchor
-
Length:
-
50mm,65-300mm
-
Grade:
-
A2-70/A4-80
-
Keyword:
-
Anchor bolt,Expansion Bolt
-
Certificate:
-
ISO9001:2008
-
Packing:
-
Small Packing+Carton Packing+Pallet
Product Details
|
Product name
|
Wedge anchor
|
|
|
|
||||
|
Standard
|
ISO,DIN,JIS,ANSI,BS Or No standard
|
|
|
|
||||
|
Matetial
|
Stainless steel:SS303.SS304.SS316.SS201.SS410.SS420
Alloy steel:Monel400. 2205. 2507. K500.
Carbon steel:1010. 1035. 1045
Aluminum or Aluminum alloy:A16061. A16063. A17075
Brass:H59. H62
|
|
|
|
||||
|
Surface treatment
|
Plain,Zinc(white,yellow,blue,black)Hot Dip Galvanized,Black,Nickel plated
|
|
|
|
||||
|
Craft characteristic
The product surface is smooth without burr and crack, the interface is smooth, the structure is stable, the
grinding is careful,and the bearing capacity is even.
|
|
|
|
|
||||
|
Wedge
anchor
|
Bolt Size(in)
|
Drill Hole Dia. D(IN)
|
Drill Length HT(in)
|
Min.Embedment
E min.(in)
|
Max.Fixture
Thickness
Smax (in)
|
Fixture
Hole Dia
D1 (in)
|
Bolt
Length
L (in)
|
Thread
Length
LG (in)
|
|
|
5/16×3 1/8
5/16×4
5/16×4 3/4
|
5/16
|
2 1/2
|
2 1/8
|
3/4
1 1/2
2 1/4
|
3/8
|
3 1/8
4
4 3/4
|
1
1 3/4
2 1/2
|
|
|
3/8×3 1/2
3/8×4 1/4
3/8×5 1/8
|
3/8
|
2 3/4
|
2 1/2
|
9/16
1 3/8
2 1/8
|
7/16
|
3 1/2
4 1/4
5 1/8
|
1
1 3/4
2 1/2
|
|
|
1/2×4 1/4
1/2×5
1/2×5 3/4
|
1/2
|
3 3/4
|
3 1/8
|
1/2
1 1/4
2 1/16
|
1/2
|
4 1/4
5
5 3/4
|
1
1 3/4
2 1/2
|
Contact Us
Related Products
Product Display
Quality instructions
Expansion bolts
Sleeve anchors are more suitable for outdoor humid environment.Sleeve anchor can be used for light or heavy fastening,as well as a variety of base materials such as concrete,brick and block.The force is uniform,and the inner and outer parts are smooth without burrs,so it is not easy to slip when rotating. These heavy duty anchor are a quick,simple and adaptable masonry anchoring system.
