Quick Details
-
Weight:
-
15kg, 15KG/Spool
-
Flux Content:
-
0
-
Warranty:
-
1year
-
Place of Origin:
-
China
-
Brand Name:
-
TKweld
-
Model Number:
-
ER70S-6
-
Product name:
-

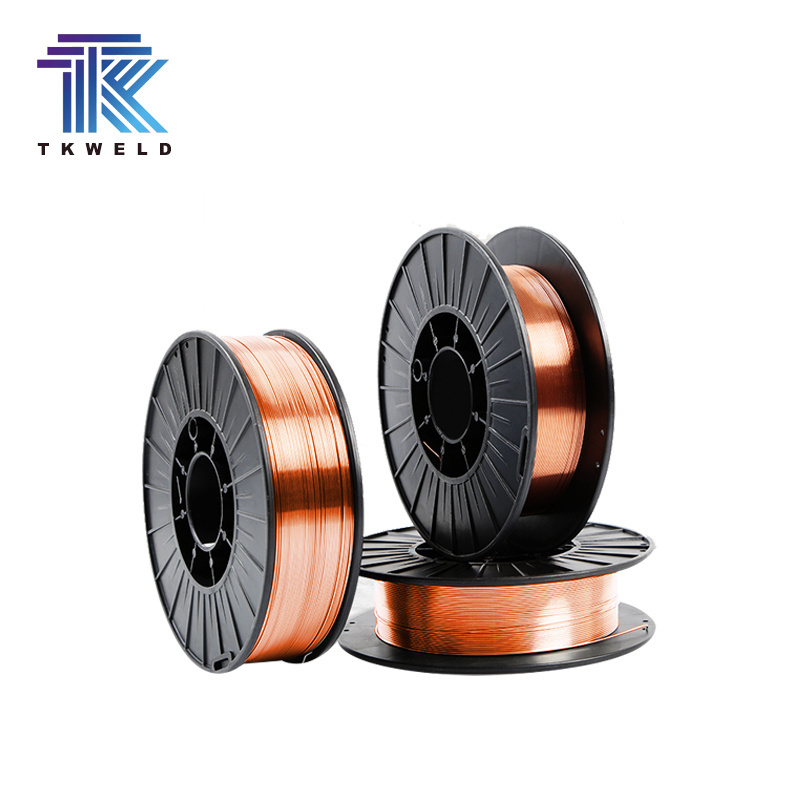

ER70S-6 Welding Wire
-
Feature:
-
Vacuum packing
-
Advantage:
-
High feedability
-
Sample:
-
Freely
-
OEM:
-
Accept
-
Quality:
-
100% Test Past/Automated production
-
Certificate:
-
ISO ABS BV CCS DNV.GL RS LR NK
Quick Details
-
Material:
-
Carbon Steel, Grade Carbon Steel, Low Alloy Steel
-
Diameter:
-
0.8-1.6
-
Melting Point:
-
1515℃, 1000℃
-
Weight:
-
15kg, 15KG/Spool
-
Flux Content:
-
0
-
Warranty:
-
1year
-
Place of Origin:
-
China
-
Brand Name:
-
TKweld
-
Model Number:
-
ER70S-6
-
Product name:
-
ER70S-6 Welding Wire
-
Feature:
-
Vacuum packing
-
Advantage:
-
High feedability
-
Sample:
-
Freely
-
OEM:
-
Accept
-
Quality:
-
100% Test Past/Automated production
-
Certificate:
-
ISO ABS BV CCS DNV.GL RS LR NK
Product Description
1> Low spatter
2> Easy to weld
3> Porosity free
4> High feedability
5> Good bead appearance
6> Feeds well into all welding machines.
7> Flows nicely, no feed issues, and has no tangle
Chemical composition of the welding wire (mass fraction) %
|
Items
|
C
|
Mn
|
Si
|
S
|
P
|
|
Standard Value
|
0.06-0.15
|
1.40 -1.85
|
0.80 -1.15
|
≤0.025
|
≤0.025
|
|
Case of Value
|
0.08
|
1.50
|
0.89
|
0.012
|
0.013
|
|
Items
|
Ni
|
Cr
|
Mo
|
V
|
Cu
|
|
Standard Value
|
≤0.15
|
≤0.15
|
≤0.15
|
≤0.03
|
≤0.50
|
|
Case of Value
|
0.03
|
0.02
|
0.002
|
0.003
|
0.11
|
X-ray Radiographic Inspection: Level Ⅱ
Mechanical properties of deposited metal: (CO2)
|
Items
|
Tensile Strength
Rm/MPa
|
Yield Strength Rel/Rp0.2 MPa
|
Elongation
A/% |
Charpy V-notch impact energy
KV2(J)-30℃ |
|
Standard Value
|
≥500
|
≥420
|
≥22
|
≥27
|
|
Case of Value
|
560
|
450
|
26
|
108
|
Welding reference current:
(DC +)
|
Welding wire diameter (mm)
|
0.8
|
1.0
|
1.2
|
1.6
|
|
Welding current (A)
|
50 - 180
|
70 - 230
|
80 - 350
|
120 - 500
|
1.Packed in a moisture-resistant film for protection
2.Easy to weld,Is an excellent general purpose welding wire.
3.Suitable for single pass and multi pass welding, all positions.
Smooth arc action, High feedability,
4.Solid Core Wire has high combination of manganese and silicon deoxidizers, permitting higher
welding currents. workpice on high welding current won’t burn through.
