Quick Details
-
Filling Accuracy:
-
1
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SAMMI
-
Dimension(L*W*H):
-
96*45*38mm
-
Weight:
-
46 KG
-
Filling capacity range:
-
can be customized
-
Technical service:
-
whole life
-
Filling precision:
-
≤±1%
-
Working head:
-
1
-
Hopper capacity:
-
30L
-
Warranty time:
-
1 year
-
Driven type:
-
electric and pneumatic
-
Quality:
-
meet export standard
Quick Details
-
Machinery Capacity:
-
500BPH
-
Packaging Material:
-
Wood
-
Filling Material:
-
Water, Oil, Juice
-
Filling Accuracy:
-
1
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SAMMI
-
Dimension(L*W*H):
-
96*45*38mm
-
Weight:
-
46 KG
-
Filling capacity range:
-
can be customized
-
Technical service:
-
whole life
-
Filling precision:
-
≤±1%
-
Working head:
-
1
-
Hopper capacity:
-
30L
-
Warranty time:
-
1 year
-
Driven type:
-
electric and pneumatic
-
Quality:
-
meet export standard
GFA series of semi-automatic filling machine piston filler. Driven by a
cylinder and piston made from materials with FIVE-way valves control the flow of
materials, and magnetic reed switch control cylinder itinerary can be regulated
filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used
pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with
the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high
accuracy.
Technical Parameters:
|
Machine model |
G1WY-100 |
G1WY-300 |
G1WY-500 |
G1WY-1000 |
G1WY-3000 |
G1WY-5000 |
|
Filling speed |
5-20b/min(take water for example) |
|||||
|
Filling range |
10-100ml |
30-300ml |
50-500ml |
100-1000ml |
1000-3000ml |
1000-5000ml |
|
Air pressure |
0.4~0.6mpa |
|||||
|
Filling error |
≤±1% |
|||||
|
Machine size |
806(L) × 180(W) ×690(H)mm |
880(L) ×230(W) ×665(H)mm |
880(L) × 230(W) ×665(H)mm |
1065 (L) ×230(W) ×665(H)mm |
1250(L) ×400(W) ×300(H)mm |
1390(L) ×420(W) ×380(H)6mm |
|
Machine weight |
30 Kg |
35Kg |
40Kg |
45Kg |
60 Kg |
80 Kg |
Machine can be customized according to customer,s requirement

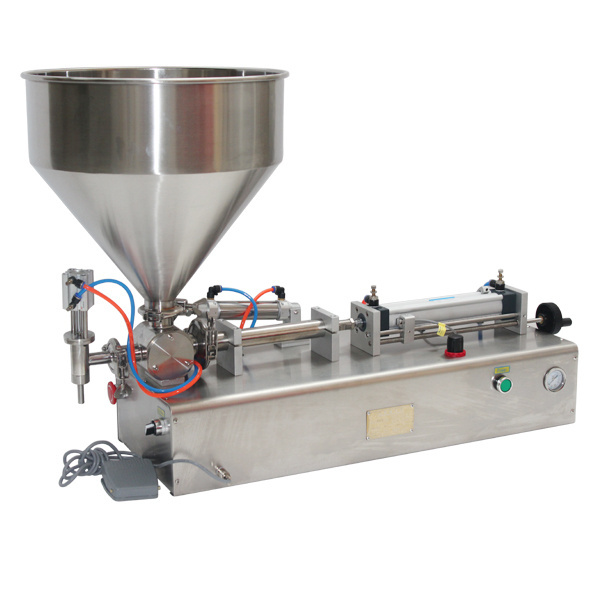

Pictures of cream filling machine
