Quick Details
-
Brand Name:
-
FCTEL
-
Model Number:
-
FCM-G8FG12
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
SFP Network Switch
-
Weight:
-
1.7Kg/piece
-
Power supply:
-
AC and DC
-
Size:
-
133mm(;length )x 120mm(width) x 40.0mm(height)
-
Working temperature:
-
-40°C ~ 85°C
-
Warranty:
-
3Years
-
MOQ:
-
1 PCS
-
OEM:
-
Yes
-
Applications:
-
Support PoE IP Cameras
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex
-
Switch Capacity:
-
52G
-
Brand Name:
-
FCTEL
-
Model Number:
-
FCM-G8FG12
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
SFP Network Switch
-
Weight:
-
1.7Kg/piece
-
Power supply:
-
AC and DC
-
Size:
-
133mm(;length )x 120mm(width) x 40.0mm(height)
-
Working temperature:
-
-40°C ~ 85°C
-
Warranty:
-
3Years
-
MOQ:
-
1 PCS
-
OEM:
-
Yes
-
Applications:
-
Support PoE IP Cameras
Product Description

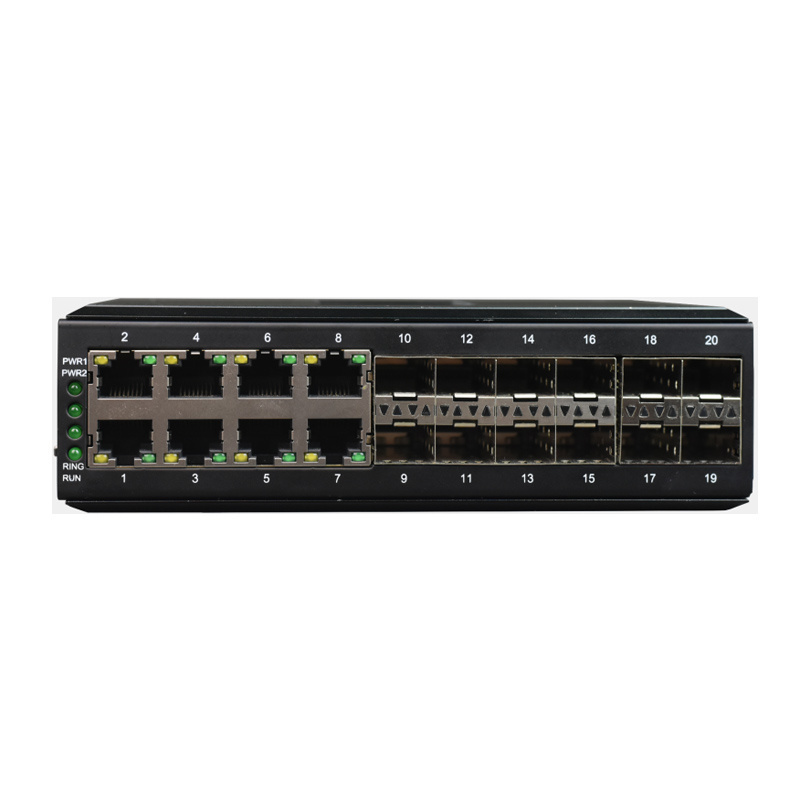

This series of product adopts industrial din-rail type. 8 GE electric ports+12 GE SFP optical ports switch is a new generation of multi-service access network managed redundant Ethernet switch, with high integration, perfect functions , stands for the highest level in the line. It has 8 GE electric ports and 12 GE SFP optical ports, specially adapts to large flow occasions like video transmission. It supports the 2nd level management protocols needed by perfect industrial switch application, supports ITU G.8032 redundant loop network protocol,can be used in various network topology structures like cascade mode, single ring,tangent ring. The self-healing time is less than 20ms, to ensure real-time and stability network. The switch adopts mature technical and open network standard, adapts to low temperature and high temperature, high electromagnet interference, salt fog and shaking, meets the demands of harsh environment in industrial site, provides a high-efficiency, reliable, and quick solution for industrial Internet of Things.
Specification
|
Model
|
FCM-G8FG12
|
|
Supported protocol
|
IEEE802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE802.1q、IEEE802.1p、IEEE802.1z、IEEE802.1d、IEEE802.1s、IEEE802.1w、IEEE802.1ax、
IEEE802.1ak |
|
Maximum frame length
|
10K
|
|
Port number
|
16 10/100/1000M RJ45 electric ports, 8 100M/1000M SFP optical ports, 1 Console port
|
|
Network media
|
1000Base-LX：using long wavelength laser（1310nm）to through multi-mode and single mode fiber，the maximum distance of multi-mode
fiber is 550m, and that of single mode is 20-120km。 |
|
|
1000Base-SX：the maximum transmission distance of 62.5μm multi-mode fiber is 275m，and that of 50μm multi-mode fiber is 550m.
|
|
|
10Base-T：CAT-3 or above CAT-3 UTP；（supported the longest transmission distance is 200m）
|
|
|
100Base-TX：CAT-5 UTP；（supported the longest transmission distance is 100m）
|
|
|
1000Base-T：CAT-5E UTP or CAT-6 UTP（supported the longest transmission distance is 100m）
|
|
VLAN address capacity
|
4K
|
|
MAC address capacity
|
8K
|
|
buffer
|
4Mbits
|
|
Back panel bandwidth
|
52Gbit
|
|
Filtering/forwarding rate
|
10Mbps：14880pps
|
|
|
100Mbps：148800pps
|
|
|
1000Mbps：1488000pps
|
|
Using environment
|
Storage temperature：-40℃～85℃；storage humidity: 0％～90％ no condensation
|
|
|
Working temperature：-40℃～85℃；working humidity: 0%～90％ no condensation
|
|
MTBF
|
＞100,000 hours
|
|
Power
|
Redundant dual power input DC9-48V/AC9-48V
Overload protection：support；reverse connection protection：support；redundant protection：support Access terminal：4 cores 5.08mm space plugged-in terminal |
|
Power consumption
|
Power consumption：15W(MAX)
|
|
Electricity and machine feature
|
Outer structure: 133mm(;length )x 120mm(width) x 40.0mm(height)
|
|
Weight
|
1.7Kg/piece
|
Application
Features
*
Full aluminum alloy shell, great heat dissipation, anodizing process, IP40 protection grade;
*
Aluminum alloy industrial din-railed design for harsh industrial environment;
*
Provide 8 GE electric ports and 12 GE SFP optical ports;
*
Each electric port or optical port supports standard ERPS ring network protocol, the self-healing time is less than 20ms;
*
Support port bandwidth limitation, port traffic control, broadcast storm suppression;
*
Support Web、CLI、Telnet management function；
*
Power-off alarm, loop alarm
*
Provide Console adjustment ；
*
Support to be POE（POE+）device；
*
Management function：
Support CLI、WEB、SNMP management
Support port line speed limitation based on ingress/egress，support half duplex back press traffic control and 802.3X full duplex traffic control
Support broadcast storm suppression function for broadcast, multi-cast, unknown single cast
Support IEEE 802.1Q 4K VLAN，support QI
Support port mirror，support Syslog，support Ping order
Support COS、DSCP，8 queues，support WRR、SP、WFQ adjustment mode，QOS strategy
Support port traffic statistics, online update
Support STP/RSTP、MSTP，support EAPS、ERPS
Support IGMP Snooping V1/V2/V3，support GMRP
Support integration by hand，support static/dynamic LACP protocol
Support a channel of relay alarm, support RMON management，TRAP alarm
Support DHCP Snooping，Option 82，support 802.1X
Support user hierarchy management, support ACL visiting control list
Support DDOS，support MAC filtering/banding based on port
Support wire cable test, convenient for project to check network wire length
Support NTP，convenient for real-time synchronous network time
Support IPV4/IPV6 static routing three layers switch technology
*
Ethernet interface with lightning protection, which is up to GB/T17626.5(IEC61000-4-5) short circuit current wave 10/700μs，open circuit peak output voltage 6KV standard;
*
Support wide range AC&DC input(9V-48V), support internal isolation，redundant dual power input power, support overload protection, reserve connection protection;
*
Comply with the demand of industrial four grade electromagnet compatibility;
*
Super lightning protection: anti lightning, anti inductive high voltage, anti surge; high efficiently heat dissipation, reducing repair time;
*
IP40shell protection grade, can withstand the test of harsh environment; railed or wall-mounted installation;
*
Wide temperature type: working temperature -40℃~ +85℃;
