Model Number:
-
PS19B
-
Product Name:
-

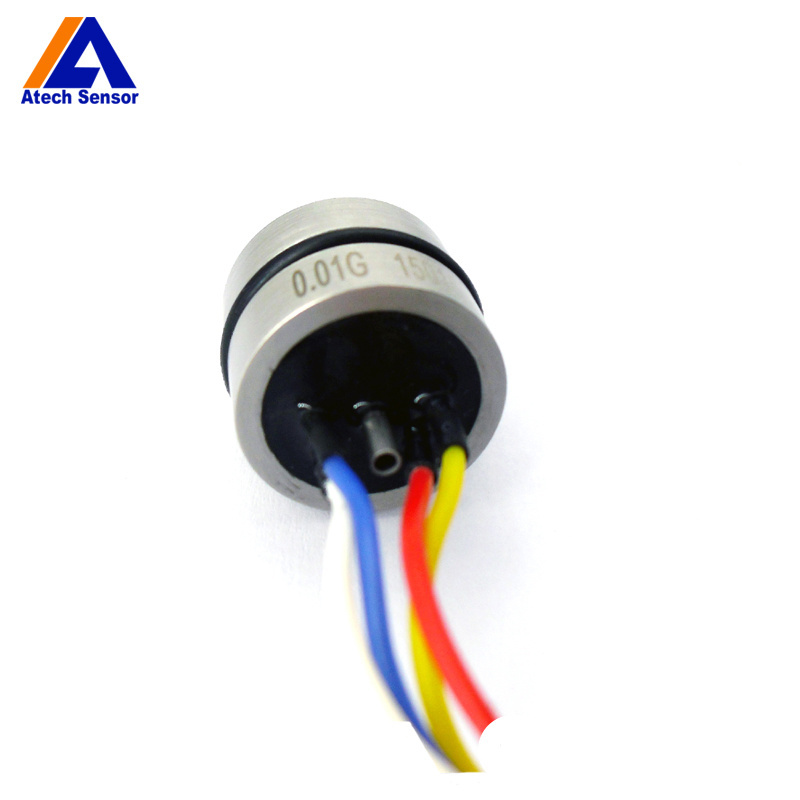

PS19B - Flush diaphragm pressure sensor chip
-
Pressure medium:
-
gas liquid compatible to stainless steel
-
Accuracy:
-
0.25%FS (standard)
-
Pressure rang:
-
10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa
-
Operating temperature range:
-
-40~+125°c
-
Pressure type:
-
gauge (G), absolute (A), sealed gauge (S)
-
Zero Temp. Coefficient:
-
0.02%F.S./ °c ( 100kpa) | 0.03%F.S. /°c (<100kpa)
-
Electrical connection:
-
6-pin or 4-wire
-
Filled oil:
-
silicon oil, or olive oil (hygienism)
-
Type:
-
pressure sensor,Drive IC,Temperature Sensor
-
Certification:
-
CE, RoHS
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Atech sensor
-
Model Number:
-
PS19B
-
Product Name:
-
PS19B - Flush diaphragm pressure sensor chip
-
Pressure medium:
-
gas liquid compatible to stainless steel
-
Accuracy:
-
0.25%FS (standard)
-
Pressure rang:
-
10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa
-
Operating temperature range:
-
-40~+125°c
-
Pressure type:
-
gauge (G), absolute (A), sealed gauge (S)
-
Zero Temp. Coefficient:
-
0.02%F.S./ °c ( 100kpa) | 0.03%F.S. /°c (<100kpa)
-
Electrical connection:
-
6-pin or 4-wire
-
Filled oil:
-
silicon oil, or olive oil (hygienism)
-
Type:
-
pressure sensor,Drive IC,Temperature Sensor
-
Certification:
-
CE, RoHS
PS19B - Flush diaphragm pressure sensor chip
PS19B - Flush diaphragm pressure sensor chip
Feature of PS19B - Flush diaphragm pressure sensor chip
1. MEMS technology
2. Imported Piezoresistive silicon chip employed
3. Sensor diameter:19mm
4. Used in food, medicine, health and wine industry etc.
Description of PS19B - Flush diaphragm pressure sensor chip
PS19B industrial pressure sensor is a standard and common sensor applied in air and chemi-industry, liquid pressure measuring. A high sensitivity silicon pressure chip is employed in the sensor. Silicon Oil-filled and isolated from measured media by a stainless steel diaphragm and body. The most important specification for industry
application is long term stability.
The PS19B sensoris designed for industry application with perfect long term stability. It have good ability on preventing fouling, crystallization and jamming of thick liquids .PS19B is widely used in food, medicine, health and wine industry etc.
Specification of PS19B - Flush diaphragm pressure sensor chip
|
Pressure medium |
gas liquid compatible to stainless steel |
||
|
Pressure ranges |
10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa, 100MPa |
||
|
Pressure type |
gauge (G), absolute (A), sealed gauge (S) |
||
|
Overload pressure |
300%F.S.( 70kPa) |200%F.S.( 25MPa) |150%F.S.( 25MPa) |
||
|
Output signal |
Zero Output 2mV 100mV (typical) 60mV (for 10kPa) | |
||
|
Accuracy |
0.25%FS (standard) |
||
|
Zero offset |
≤±2mV |
||
|
Long term stability |
<0.2%FS/year |
||
|
Excitation |
1.5mA (typical) |5VDC | 10VDC |
||
|
Compensated Temp. |
-10°c ~+70°c |
||
|
Operating Temp. |
-40~+125°c |
||
|
Storage Temp. |
-40~+125°c |
||
|
Zero Temp. Coefficient |
0.02%F.S./ °c ( 100kpa) | 0.03%F.S. /°c (<100kpa) | ||
|
Span Temp. Coefficient |
0.02%F.S./ °c ( 100kpa) | 0.03%F.S. /°c (<100kpa) |
||
|
Bridge Resistance |
Min. |
Max. |
Unit |
|
2600 |
5500 |
ohm |
|
|
Vibration |
20g (20— 5000HZ) |
||
|
Response time |
≤1ms |
||
|
Electrical connection |
6-pin or 4-wire |
||
|
Material of membrane |
316L |
||
|
Material of housing |
316L |
||
|
Sealing |
fluoro-rubber sealing ring |
||
|
Filled oil |
silicon oil, or olive oil (hygienism) |
||
|
Wire |
gold-plated kovar pins, or silicon rubber shielded flexible wires |
||
|
Net weight |
28g |
||
Outline Dimension of PS19B - Flush diaphragm pressure sensor chip
Applications of PS19B - Flush diaphragm pressure sensor chip
1.
Industrial process control
2.
Wastewater and environmental engineering
3.
Liquid pressure system and switch
4.
Refrigeration equipment and air conditioner
