Quick Details
-
Planing table size(mm):
-
1085*253
-
Thicknessing table size(mm):
-
248*600
-
Cutter block size(mm):
-
75
-
Cutting knift(pcs):
-
3
-
Feeding block diameter(mm):
-
32
-
Fence tilt(degree):
-
0-45
-
Max.thicknessing height(mm):
-
195
-
Max.thicknessing width(mm):
-
250
-
Thicknessing feed speed(m/minute):
-
8
-
Weight:
-
148KG/178KG
-
Certification:
-
CE
-
Power:
-
1500W
Quick Details
-
Place of Origin:
-
Shandong, China
-
After-sales Service Provided:
-
Online support
-
Model:
-
PT250
-
Planing table size(mm):
-
1085*253
-
Thicknessing table size(mm):
-
248*600
-
Cutter block size(mm):
-
75
-
Cutting knift(pcs):
-
3
-
Feeding block diameter(mm):
-
32
-
Fence tilt(degree):
-
0-45
-
Max.thicknessing height(mm):
-
195
-
Max.thicknessing width(mm):
-
250
-
Thicknessing feed speed(m/minute):
-
8
-
Weight:
-
148KG/178KG
-
Certification:
-
CE
-
Power:
-
1500W
Product Description

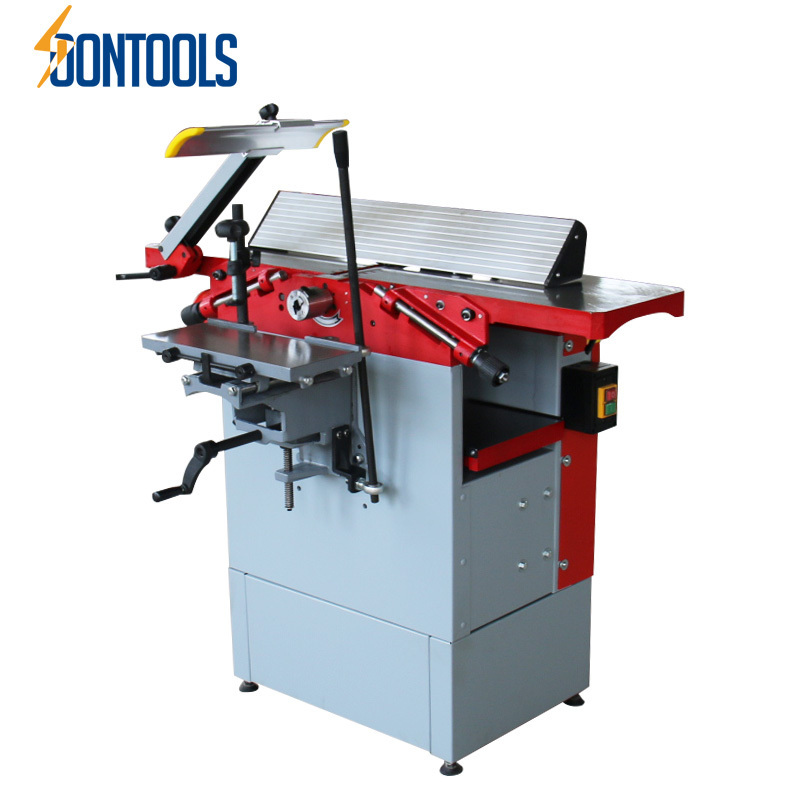

10'' planer&thicknesser,high quality woodworking Planer Thicknesser for DIY home hobbyist or trade use,combined planer thicknesser and jointer
• Precision Ground Cast Iron Beds
• 2hp Induction Motor
• 3 Knife Cutterblock for Superior Finish
• 10'' Planing Capacity
• 2hp Induction Motor
• 3 Knife Cutterblock for Superior Finish
• 10'' Planing Capacity
• 10'' x 7'' Thicknessing Capacity
• Rubber Coated Outfeed Roller
• 100mm diameter Dust Extraction Outlet
• Optional Wheel Base Available
|
Model No
|
PT250
|
|
Motor(w)
|
1500
|
|
Planing table size(mm)
|
1085*253
|
|
Thicknessing table size(mm)
|
248*600
|
|
Cutter block size(mm)
|
75
|
|
Cutting knift(pcs)
|
3
|
|
Feeding block diameter(mm)
|
32
|
|
Cutting block speed-50HZ(rpm)
|
4000
|
|
Cutting block speed-60HZ(rpm)
|
4800
|
|
Fence tilt(degree)
|
0-45
|
|
Max.depth of cut/plane/thickness(mm)
|
5/2.5
|
|
Max.thicknessing height(mm)
|
195
|
|
Max.thicknessing width(mm)
|
250
|
|
Thicknessing feed speed(m/minute)
|
8
|
|
Packing size(mm)
|
113*50*74
|
Detailed Images
Precision ground cast iron beds and a long tilting fence which can be positioned at any point across the table make this machine a delight to use. The 3 knife cutterblock is powered by a 2hp induction motor and is capable of a cut up to 5mm deep in a single pass.
To gain better visibility and access for thicknessing, both of the planing beds are hinged and swing out of the way, without using any tools. A dust hood / cutter gaurd is then swung into position and the conversion to Thicknesser is complete.
Packing & Delivery
Our Company
Our Service
Our company mainly manufactures:
1. Woodworking tools and machines such as:wood planer thicknesser ,mortising machine ,spindle moulder,combination machine ,drill bench ,wood sander,wood band saw,wood table saw ,wood lathe,edge bander ,scroll saw;Tools like clamp bench,miter saw stand,saw horse,roller conveyor,rollre stand,mobile base ,dovetail jig,ect.
2.Metalworking machines such as : metal cutting bandsaw ,metal sander ,grinder,ect.
3.Construction machinery such as :brick cutting machine ,brick clamp tools ,drywall panel hoist ,and so on 4.Forest and garden machinery such as :log splitters ,sweepter ,etc .
5.We promise to reply to you upon receipt of your inquiry within 12 hours .
6.After the machine reached you ,please check the machine to see if they are going well ,if there is any question ,please also do not hesite to contact with us ,we will try our best to give you the solution within 2 days.
FAQ
Q1: How to install?
A1:We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
Q2:How to ensure the safety?
A2:There have the overload and over heat protection, it ensure working people safety.
Q3:How long the table saw machine can be used?
A3: It depends how you use your table saw, if use it in good maintenance, at least 8-10 years.
Q4:what is the Delivery time?
A4: Our delivery time is around 30 days. Before the machine arrive at the port, the shipping company will call you.
Q5:Where is your company located?
A5:We are Chinese company. Our city is Laizhou. It is the biggest seaport in the north of China.
Q6:Are there any requirements for the dealer?
A6:There is no special conditions to be our dealer. You buy from us and sell to your customers. We introduce customers to you.
