Quick Details
-
Brand Name:
-
VOTE
-
Motor Power:
-
55KW
-
Speed of Mixing Drum:
-
16turn/Minute
-
Water Supply Mode:
-
Automatic
-
Discharge Way:
-
Automatic
-
Outline Dimension:
-
6600x3350x2850
-
Weight (KG):
-
6500 kg
-
Product name:
-
Mixer Truck
-
Keywords:
-
Concrete Mixer
-
Name:
-
Concrete Mixer Truck
-
Application:
-
Construction works
-
Type:
-
Concrete Mixer Wiyh Pump
-
Engine:
-
Water Cooling Diesel
-
Color:
-
Customer's Requirement
-
Weight:
-
85OOKG
-
After-sales Service Provided:
-
Online support
Quick Details
-
Mixing Power:
-
7.5KW
-
Productivity:
-
7M³/H
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
VOTE
-
Motor Power:
-
55KW
-
Speed of Mixing Drum:
-
16turn/Minute
-
Water Supply Mode:
-
Automatic
-
Discharge Way:
-
Automatic
-
Outline Dimension:
-
6600x3350x2850
-
Weight (KG):
-
6500 kg
-
Product name:
-
Mixer Truck
-
Keywords:
-
Concrete Mixer
-
Name:
-
Concrete Mixer Truck
-
Application:
-
Construction works
-
Type:
-
Concrete Mixer Wiyh Pump
-
Engine:
-
Water Cooling Diesel
-
Color:
-
Customer's Requirement
-
Weight:
-
85OOKG
-
After-sales Service Provided:
-
Online support
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

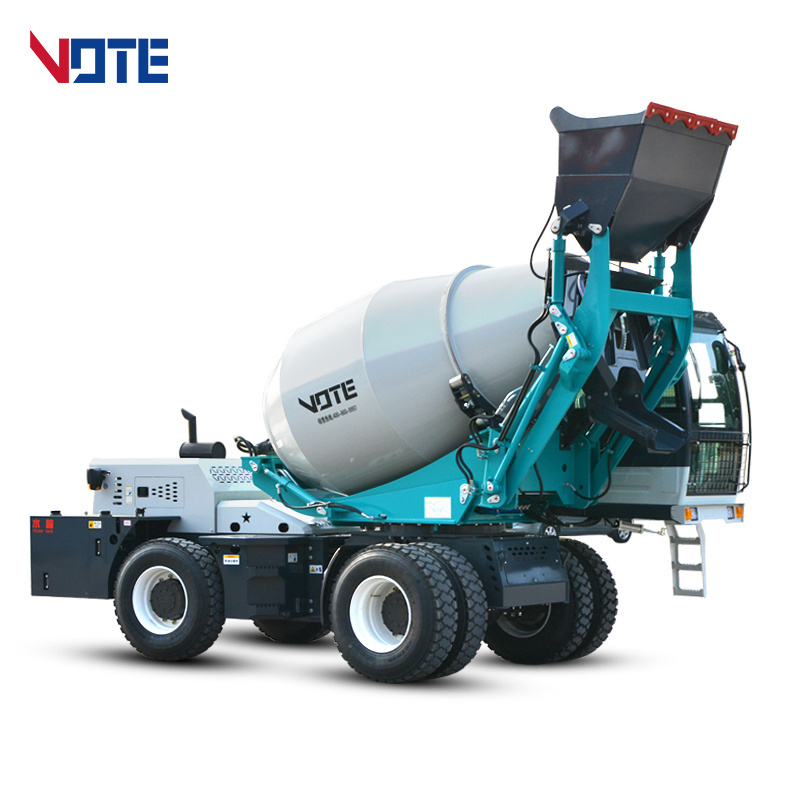

1.VOTE VTCM Series Self Loading Concrete Mixer Truck is a kind of unique vehicle which combines concrete mixer, transit mixer and wheel loader.
2.
The hub reducer driving axle and full hydraulic transmission case make the mixer truck travel well on kinds of complex off road.
3.
It makes mixer truck more safe and stable by using wet brake of front axle, air brake, double brake systemand double front tires.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
|
VTCM-3500 Basic Parameter
|
|
|
|
Mixing volume
|
3.5 M3
|
|
|
Concrete output
|
3.5 M3 / batch, 14 M3 / hour
|
|
|
Drum rotation speed
|
16 rpm
|
|
|
Loading bucket capacity
|
300L
|
|
|
Loading times to full drum
|
3 times
|
|
|
Max. water suction capacity
|
250 L/min, self-priming electric water pump
|
|
|
Water tank capacity
|
720 L
|
|
|
Max. travel speed
|
30 km/h
|
|
|
Gradeability
|
30°
|
|
|
88Operating weight
|
8500KG
|
|
|
Overall Dimension (L×W×H)
|
5450x2700x2850mm
|
|
|
|
|
|
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
The color can be customized! With synchronous steering function (
the cab and the mixing pump rotatetogether
), it is suitable for mountain winding roads, mountain forests, rural roads, and safety first!
