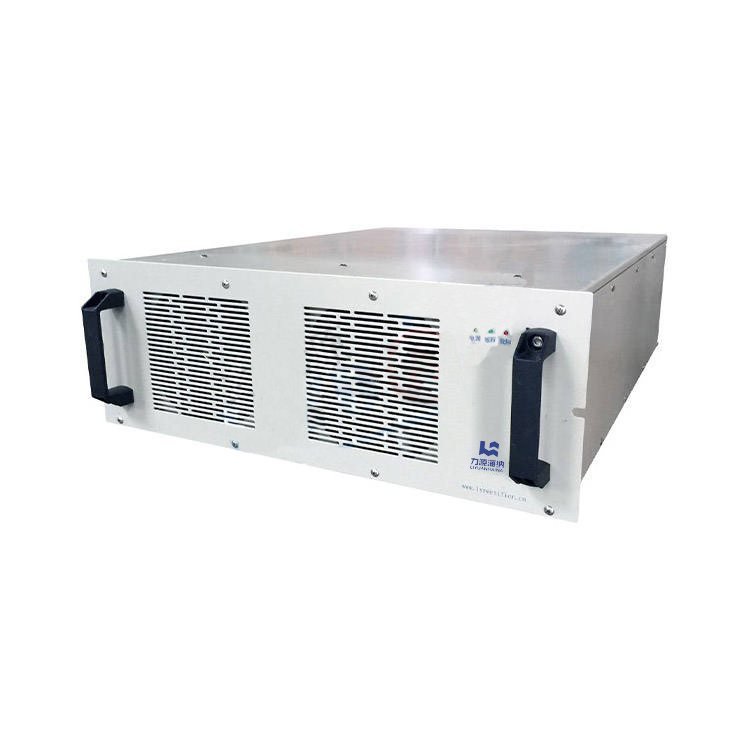

Quick Details
-
Brand Name:
-
Liyuan
-
Model Number:
-
TBFB-5000A/12V
-
Output Frequency:
-
50HZ
-
Output Current:
-
DC 0~5000A
-
Cooling mode:
-
Air-cooled
-
Power Factor:
-
≥0.95
-
Ambient temperature:
-
-20℃~40℃
-
Application:
-
Electroplating Rectifier
-
Dimension:
-
H283mm*W500mm*D1120mm
-
Type:
-
High frequency power supply
-
Warranty:
-
2 Years
-
Protections:
-
Overvoltage, overcurrent, overload, short circuit, overheating
-
MOQ:
-
1pcs
-
Output:
-
Customer's Requests
Quick Details
-
Input Voltage:
-
Three-phase, AC380V±10%
-
Output Voltage:
-
DC 0~12V
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Liyuan
-
Model Number:
-
TBFB-5000A/12V
-
Output Frequency:
-
50HZ
-
Output Current:
-
DC 0~5000A
-
Cooling mode:
-
Air-cooled
-
Power Factor:
-
≥0.95
-
Ambient temperature:
-
-20℃~40℃
-
Application:
-
Electroplating Rectifier
-
Dimension:
-
H283mm*W500mm*D1120mm
-
Type:
-
High frequency power supply
-
Warranty:
-
2 Years
-
Protections:
-
Overvoltage, overcurrent, overload, short circuit, overheating
-
MOQ:
-
1pcs
-
Output:
-
Customer's Requests
Specification
|
Power types
|
|
High-frequency Power Supply
|
|
|||
|
Model
|
|
TBFB-5000A/12V
|
|
|||
|
Cooling mode
|
|
Air-cooled
|
|
|||
|
Input Voltage
|
|
Three-phase, AC380V±10% ,50~60HZ
|
|
|||
|
Input Power
|
|
67.2KVA
|
|
|||
|
Input Current
|
|
AC 102A
|
|
|||
|
Output Voltage
|
|
DC 0～12V
|
|
|||
|
Output Current
|
|
DC 0～5000A
|
|
|||
|
Efficiency
|
|
≥94%
|
|
|||
|
Power Factor
|
|
≥0.95
|
|
|||
|
Operating temperature
|
|
-20℃～45℃
|
|
|||
|
Control Mode
|
|
PLC, ADDA, Ethernet, RS485 and RS232 available
|
|
|||
|
Stabilized Current Precision
|
|
≤1%（Rated Current)
|
|
|||
|
Dimension (L * W * H)
|
|
H283mm×W500mm×D1120mm
|
|
|||
|
Protection
|
|
With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function
|
|
|||
|
*OK to Customized according to requirements*
|
|
|
|
|||
Application Industry
Liyuan electroplating rectifiers are widely used in chrome, zinc, nickel, copper, gold, silver, metal and PCB plating. With high control precision, efficiency and power factor, low ripple factor. Digital network control is adopted to ensure high output precision.
