Quick Details
-
Product name:
-
hdmi switch
-
Input:
-
4 HDMI
-
Output:
-
1 HDMI Output
-
Function:
-
selecting signal
-
Material:
-
Aluminum Alloy
-
Warranty:
-
1 Year
-
Resolution:
-
4Kx2K
-
Application:
-
Multimedia
-
HDMI version:
-
1.4
Quick Details
-
Model Number:
-
HY-SW4401-A-S
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
hdmi switch
-
Input:
-
4 HDMI
-
Output:
-
1 HDMI Output
-
Function:
-
selecting signal
-
Material:
-
Aluminum Alloy
-
Warranty:
-
1 Year
-
Resolution:
-
4Kx2K
-
Application:
-
Multimedia
-
HDMI version:
-
1.4

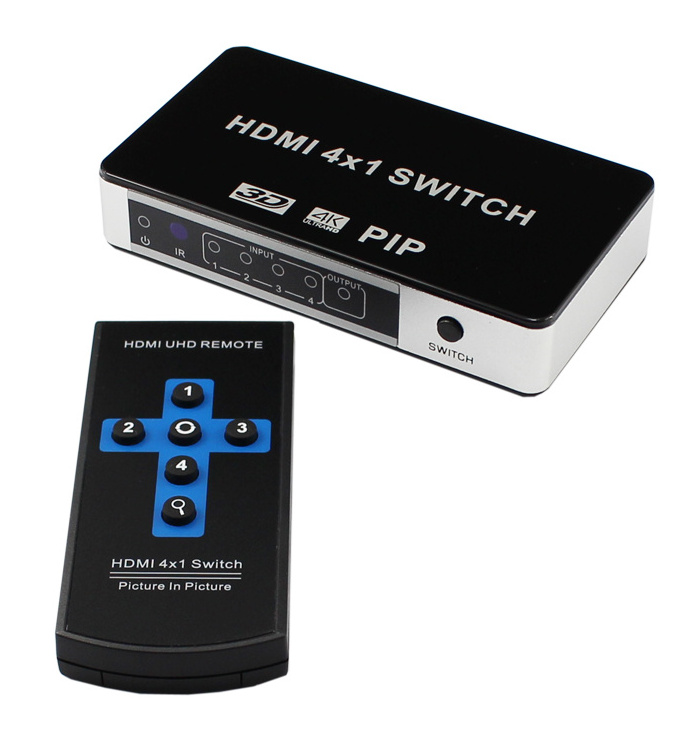

HDMI Switch seamless with PIP support 4K HDMI V1.4 HDCP ARC CEC 4 ports with IR remote controller
Intruduction:
When the switcher works in single picture mode, short press the switch button, it will switch from the 4 video sources.
Long press the switch button for 3 seconds will make it work in PIP mode. In that mode, short press the switch button, it will choose from the 3 video sources showing on the left corner of the screen.
Long press the switch button for 3 seconds will make it display the video source you chose and return to single picture mode.
Feature:
1. Supports 4 HDMI input ports.
2. Supports 1 HDMI output port.
3. Compliant HDMI 1.4 specification.
4. Supports screen preview (Screen preview function only works in 1080p or lower resolutions).
5. Supports fast switching.
6. Supports deep color 30bit, 36bit.
7. Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC.
8. Digital audio format, as DTS-HD/ -trueHD/LPCM7.1/DTS/ -AC3/DSD.
9. Supports signal retiming.
10. Supports Equalizer TMDS Output: 25MHz–300MHz TMDS clock. 11.Supports up to 300MHz TMDS clock rate(4Kx2K)for HDMI input. 12.Supports EDID RAM.
13. Supports 1080P input up to 15 meters AWG26 HDMI standard cable length, output up to 20 meters AWG26 cable length.
14. Inputs can be switched with the IR remote control, also can be controlled by button.
15. Extend the transmission distance and improve transmission signal.
16. Compatible with DVI through a HDMI to DVI adapter.
17. Supports hot plug-and-play.
18. LED indicate signal and power mode.
19. No loss of quality.
Installs in minutes.
|
Specifications: Maximum Single Link Range 24/25/30fps/4Kx2K HDMI version........................................................HDMI 1.4, HDCP 1.4 HDMI resolution 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p |
|
Supports video color format 24bit/deep color 30bit , 36bit Vertical Frequency Range 1080p@60Hz; 4K x 2K@30Hz Supports audio format…......................DTS-HD/ -trueHD/LPCM7.1 |
|
/DTS/ -AC3/DSD Max bandwidth 300MHz Max band rate 10.2Gbps Input/Output TMDS signal 0 . 5 ~ 1 . 5Volts p - p ( TTL ) Input/Output DDC signal 5Volts p - p ( TTL ) 1080P Input cable distance ≤ 15m AWG26 HDMI standard cable 1080P Output cable distance ≤ 20m AWG26 HDMI standard cable |
|
4K X 2K Input cable distance……......... ≤ 5m AWG24 HDMI standard cable 4K X 2K Output cable distance ≤ 10m AWG24 HDMI standard cable Max working current 350mA |
|
Operating Temperaturer (- 15 to + 55 ℃) |
|
Operating Humidity range 5 to 90 % RH ( No Condensation ) Dimension ( L x W x H ) 110x60x20mm Weight 105g |
PRODUCT PICTURES
All Kinds of Scenes Freely Applied
Widely used in video conferencing, conference lectures, home theater, office, teaching improve work efficiency
Single Product Packaging Content :
1. HDMI 4×1 Switch x 1
2. Remote controller x1
3. User Manual x 1
DC 5V Power Adapter x1
