Quick Details
-
Optical Resolution:
-
203 dpi, 1200dpi
-
Scan Speed:
-
200 scans/second, 200 scans/second
-
Brand Name:
-
RADALL, Radall
-
Place of Origin:
-
Guangdong, China
-
Light Resource:
-
CMOS
-
Product Type:
-
Bar Code Scanner
-
Model Number:
-
RD-90
-
Certification:
-
CE FCC ROHS ISO9001 ISO14001
-
Product name:
-
wall mounted scanner
-
Driver:
-
No need, plug and play
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
CMOS
-
Max Paper Size:
-
A4
-
Optical Resolution:
-
203 dpi, 1200dpi
-
Scan Speed:
-
200 scans/second, 200 scans/second
-
Brand Name:
-
RADALL, Radall
-
Place of Origin:
-
Guangdong, China
-
Light Resource:
-
CMOS
-
Product Type:
-
Bar Code Scanner
-
Model Number:
-
RD-90
-
Certification:
-
CE FCC ROHS ISO9001 ISO14001
-
Product name:
-
wall mounted scanner
-
Driver:
-
No need, plug and play
Radall Embedded Scanning Module 1D 2D QR Barcode Scan Head USB/RS232 Industrial Fixed Scan Engine Mount Barcode Scanner RD-90

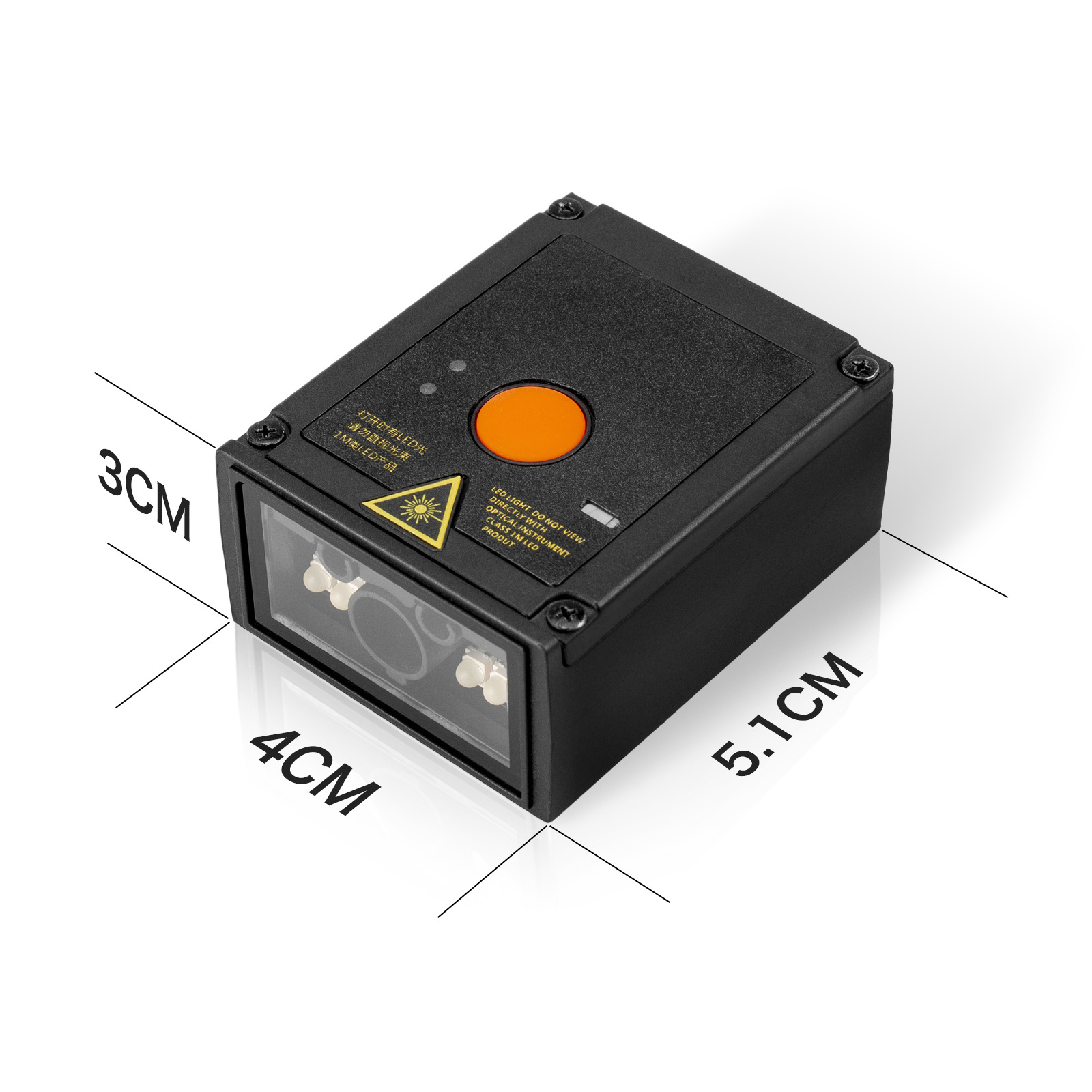

RD-90 Industrial IP54 2D Fixed Mount Barcode Scanner with IR/Light Sensor
Wide-range in application: parcel locker, supermarket locker, ticket machine, logistics, hospital, etc. FEATURES IR/Light Triggers The combination of IR sensor and light sensor exhibits an improved sensitivity in activating the scanner to scan barcodes as they are presented, to achieve higher throughput and productivity. Automatic Exposure Control (AEC) The sensor in the RD-90 automatically adjusts the supplementary lighting duration based on the light reflected off barcode. IP54-sealed Housing The RD-90 is environmentally sealed to an IP54 rating to prevent dust, moisture and other contaminant from entering it. Unmatched Reading Performance The RD-90 is capable of reading 1D as well as high-volume 2D barcodes on the screen covered with protective film. Highly Visible Laser Aimer The RD-90 provides a laser-generated cross hair aiming pattern that is clear and bright even in bright sunlight, ensuring first time accurate aim. 1.5m Drop Resistance The scanner withstands multiple 1.5m drops to concrete (for six sides, three drops per side).
SPECIFICATIONS
Pixel:1280 x 800 CMOS Light Source:Lightening White LED, Green LED Reading Code System: 2D: PDF 417, QR Code, DataMatrix, AZTEC, Hanxin Code, Maxicode, Micro QR, Micro PDF417, GM, Code One, etc. 1D: EAN13, EAN8, UPCA, UPCE, Code 128, Code39, Codabar, UCC/EAN 128, RSS, Interleaved 25, ITF14, ITF6, Standard 25, Matrix 25, COOP25, Industrial 25, Plessey, MSI Plessey, Code 11, Code93, Code49, Code16k, etc. Reading Accuracy: Greater or equal to 15mil Scan Angle Roll: 360°, Pitch: ±55°, Skew:±55°Scan Angle Cable USB (Used to connect the scanner to a host device) RS-232 (Used to connect the scanner to a host device) Power Adapter DC5V adapter to power the scanners with RS-232 cable. Operating Voltage 5VDC±5% Min. Symbol Contrast 25% Interface USB HID-KBW, USB Virtual Serial Port, USB HID-POS, TTL-232, RS-232 Field of View Horizontal 32°, Vertical 20° Drop Height : Six surface drop on 1.5 meters of surface of concrete (one each on six sides) Protection Class: IP54 Certificates: FCC Part 15 Class B, CE EMC Class B
