PRISMA 125
this workshop/construction site welding machine is suitable for the
socket fusion of pipes and fittings
up to an OD of 125 mm (¾” to 4”), in accordance with the standards in force.

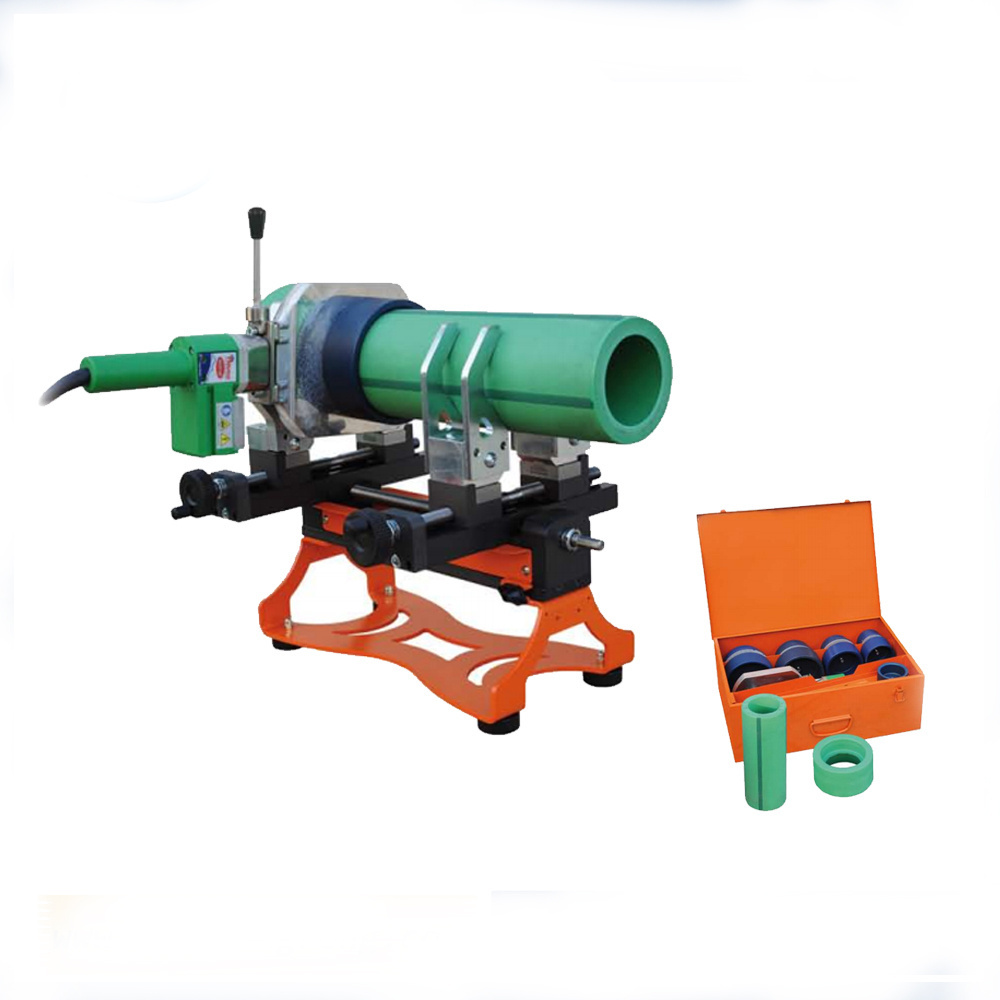

The PRISMA 125 is composed of a machine body featuring a selector for the welding depths of the different diameters, four self-centering steel clamps for locking pipes and fittings (different brands), a self-centring socket welder with electronic temperature control, a device for the maximum heating depth, a sliding trolley, a tripod to support the pipe, a set of sockets and spigots for socket fusion from Ø 25 to Ø 125 mm with steel case.
The welding machine is available in two versions, depending on the type of sockets & spigots supplied:
PRISMA 125 type A and PRISMA 125 type B.
- Product Details
- {{item.text}}
Quick Details
-
Dimensions:
-
1080*840*580, 1080*840*580
-
Weight:
-
20
-
Use:
-
Pipe Welding
-
Voltage:
-
110/230
-
Power:
-
1400
-
Weight (KG):
-
20 KG
-
Power (kW):
-
1400
-
After-sales Service Provided:
-
Overseas service center available
-
Product name:
-
Socket Joint Machine TSC-125
-
Working range:
-
25~125mm
-
Weight(machine body):
-
100KG
-
Power supply:
-
50-60Hz
-
Total absorbed power:
-
1400W/1400W
-
Pressure working range:
-
0~150 bar
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
CR
-
Tube Diameter:
-
25~125
-
Dimensions:
-
1080*840*580, 1080*840*580
-
Weight:
-
20
-
Use:
-
Pipe Welding
-
Voltage:
-
110/230
-
Power:
-
1400
-
Weight (KG):
-
20 KG
-
Power (kW):
-
1400
-
After-sales Service Provided:
-
Overseas service center available
-
Product name:
-
Socket Joint Machine TSC-125
-
Working range:
-
25~125mm
-
Weight(machine body):
-
100KG
-
Power supply:
-
50-60Hz
-
Total absorbed power:
-
1400W/1400W
-
Pressure working range:
-
0~150 bar
Product Description
PRISMA 125
STANDARD COMPOSITION
- Machine body complete with an electronic socket welder
- Steel case complete with sockets and spigots from Ø 25 to Ø 125 mm and tool kit
- Pipe support tripod
- Sliding trolley
- Steel case complete with sockets and spigots from Ø 25 to Ø 125 mm and tool kit
- Pipe support tripod
- Sliding trolley
ON REQUEST (ACCESSORIES)
-Transport wooden case
|
Technical features:
|
|
|
|
Working range
|
Ø 25 ÷ 125 mm (¾” to 4”)
|
|
|
Power supply
|
110 V or 230 V single phase 50/60 Hz
|
|
|
Total absorbed power
|
1400 W
|
|
|
Working temperature
|
180° ÷ 280° C
|
|
|
Ambient temperature range
|
-5° ÷ 40° C
|
|
|
Materials
|
HDPE, PP, PP-R, PVDF, PB
|
|
|
Dimensions
|
1080 x 840 x 580 mm
|
|
|
Wooden case
|
1500 x 800 x 1300 mm
|
|
|
Weight
|
100 Kg
|
|
