Marine Horizontal electric window wiper

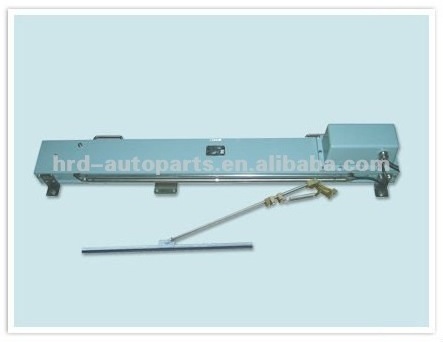

WGP2 type horizontal electric window wiper is a kind of electrical window wiper to be used for side scuttles in pilothouse and operating cab in a vessel. It is powered via an speed-adjustable motor. Its guide rail is made of aluminum alloy, which drives rubber wiper blade mounted at lower end of stainless steel swing rod to wipe the glass horizontally; thus to wipe off sea Water,Rainwater and snow, as a result, to obtain a clear visual field. This product is appropriate for various naval vessels and civil vessels.

This product complies with CB1366-2002: General Specification for Naval Vessel Window Wiper.
Main Technical Data:
1.Power supply:AC 220V,AC 110V,DC 24V
2.Frequency:50Hz/60Hz
3.Wipe speed:0.3~1.2m/sec
4.Consumed power of motor:≤120W
5.Consumed power of heater:≤450W
6.Protection grade:IP56
7.Outline dimension of control box(only for reference):
Box(mm): 88×80×98
Faceplate(mm): 120×100×4
8.Power box external dimensions:
Box(mm): 88×80×98
Mounting dimensions:210×265
9.Installation: Main unit is mounted above outdoor side scuttle with the rod swinging downwards. If needing other installation method, both parties should confirm a special design and note it in technical specification.
10.weight:≤26Kg
