Quick Details
-
Dimension(L*W*H):
-
8990*2400*3300mm
-
Weight:
-
7800 KG
-
Drilling Depth:
-
Max.400m
-
color:
-
blue
-
cab:
-
double cabin
-
Feature:
-
Multi-functional
-
Engine type:
-
Diesel Power
-
Drilling depth:
-
400m
-
Application:
-
Geological Exploration
-
Drilling method:
-
Top Drive Hydraulic Rotary Drilling
-
Drill rod length:
-
1.5m 2.0m 3.0m
-
Lifting force:
-
12KN
-
Rotary torque:
-
890N.m/2200N.m
Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Lilong
-
Voltage:
-
Diesel Engine Driven
-
Dimension(L*W*H):
-
8990*2400*3300mm
-
Weight:
-
7800 KG
-
Drilling Depth:
-
Max.400m
-
color:
-
blue
-
cab:
-
double cabin
-
Feature:
-
Multi-functional
-
Engine type:
-
Diesel Power
-
Drilling depth:
-
400m
-
Application:
-
Geological Exploration
-
Drilling method:
-
Top Drive Hydraulic Rotary Drilling
-
Drill rod length:
-
1.5m 2.0m 3.0m
-
Lifting force:
-
12KN
-
Rotary torque:
-
890N.m/2200N.m
Main purpose and characteristics
1.Water Well Drilling is used in urban village, agricultural irrigation, industrial and other water wells drilled, engineering construction such as high-rise buildings, Bridges, geological mining ports, ports, DAMS and other basic pile drilling, borehole of ground source heat pump, exploration and geological survey

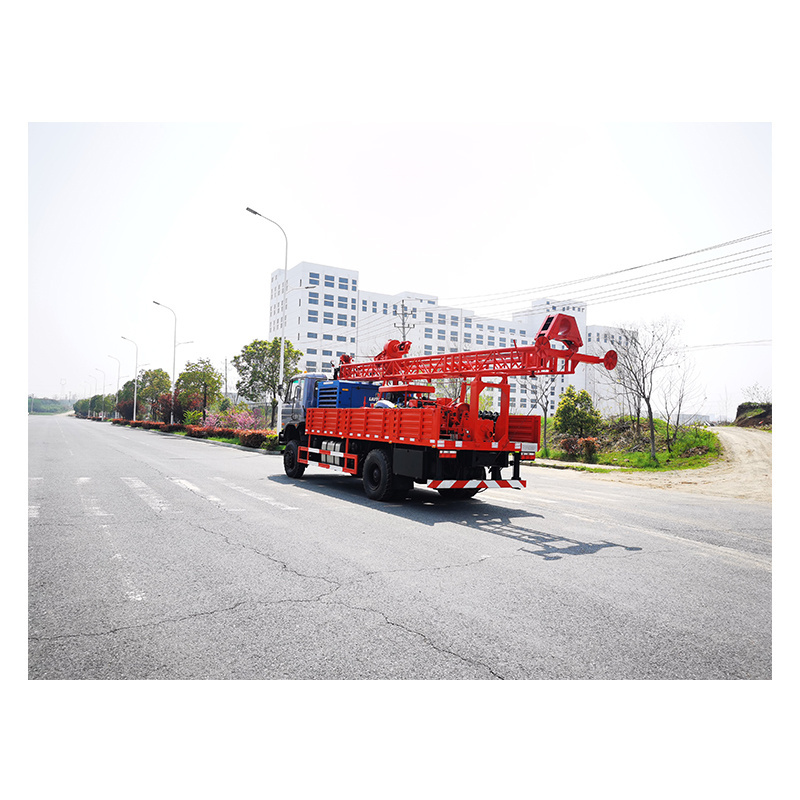

2.It is a self-propelled vehicle used four-drive cross-country chassis with strong power strong climbing, suitable for mining area and harsh environments. Diesel engine, gearbox, the reversing box, power head, lifting hoist, the derrick, chassis, control system, orifice device, hydraulic system, BW600/30 mud pumps, generators, etc are all installed on the chassis.
3.The machine can be used in mud drilling and air drilling technology, suitable for construction work of clay layer, sand soil layer and rock layer.
4.The machine has large torque, large lift force, strong power, simple operation and easy to add unloading pipe. Low investment and high efficiency is the best choice for users.
Specification
Detailed images
Drilling Techlogy
