Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Vrcooler
-
Liquid Flow Rate:
-
0.1~10 M/s
-
Maximum Working Pressure:
-
40bar
-
Weight:
-
5 KG
-
Dimension(L*W*H):
-
DESIGNED
-
Warranty:
-
12 Months
-
Product Name:
-
air to water heat exchanger with fan
-
Tube material:
-
Copper
-
Fin material:
-
Aluminium
-
Tube type:
-
Smooth
-
Fin type:
-
Corrugated
-
Frame material:
-
Galvanized steel
-
Original:
-
Jiangsu, china
-
Fin surface:
-
Bare
-
Application:
-
Boiler
-
Type:
-
Tube fin type
Quick Details
-
Structure:
-
Tube Heat Exchanger
-
Voltage:
-
220v/380v/customized
-
Core Components:
-
heat exchanger
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Vrcooler
-
Liquid Flow Rate:
-
0.1~10 M/s
-
Maximum Working Pressure:
-
40bar
-
Weight:
-
5 KG
-
Dimension(L*W*H):
-
DESIGNED
-
Warranty:
-
12 Months
-
Product Name:
-
air to water heat exchanger with fan
-
Tube material:
-
Copper
-
Fin material:
-
Aluminium
-
Tube type:
-
Smooth
-
Fin type:
-
Corrugated
-
Frame material:
-
Galvanized steel
-
Original:
-
Jiangsu, china
-
Fin surface:
-
Bare
-
Application:
-
Boiler
-
Type:
-
Tube fin type
Product description
Production Description

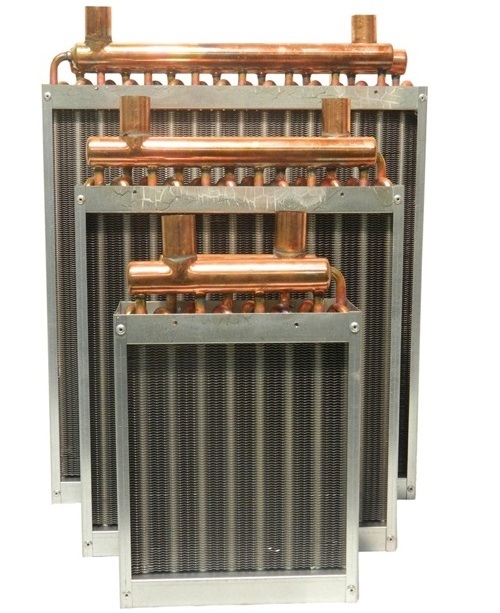

Air to water heat exchangers are an excellent fit for various heating and cooling applications.
These compact units are designed to maximize heat transfer by utilizing a series of 3/8"copper tubes with a high density of aluminum fins.
These fins are spaced such that the fin density is 12 fins per inch.
Despite such high fin density, there is minimal pressure drop through these coils.
Applications:
•
Apartment Buildings and
•
Condominiums
•
Residential Heating
•
Hybrid Systems
•
Air Conditioning
•
Dehumidification
• Residential and commercial
• Forced air heating and cooling (liquid or water to air heat transfer applications)
• Liquid chilling (air to water or liquid heat transfer applications)
• Outdoor or indoor wood boilers, gas / propane boilers or electric boilers
• Garage heaters
• Auxiliary heating or cooling
Technical Details:
•
Tube Coil is manufactured entirely of 3/8" seamless copper
•
Plate Fin is made from Aluminum
•
The core housing is made from galvanized steel
•
Header is made from Copper and has a 1" ID
•
The Tube side is rated at 175 psig/350F
•
Plate Fin Spacing is 12 per inch
All connections are 1“ ID soldered
Models
|
Model
|
|
Dimension (inches)
|
|
|
|||
|
|
|
A
|
B
|
C
|
|||
|
HE1212
|
|
12.25
|
12
|
3.5
|
|||
|
HE1215
|
|
12.25
|
15
|
3.5
|
|||
|
HE1218
|
|
12.25
|
18
|
3.5
|
|||
|
HE1224
|
|
12.25
|
24
|
3.5
|
|||
|
HE1418
|
|
14.25
|
18
|
3.5
|
|||
|
HE1518
|
|
15.25
|
18
|
3.5
|
|||
|
HE1616
|
|
16.25
|
16
|
3.5
|
|||
|
HE1618
|
|
16.25
|
18
|
3.5
|
|||
|
HE1620
|
|
16.25
|
20
|
3.5
|
|||
|
HE1818
|
|
18.25
|
18
|
3.5
|
|||
|
HE1820
|
|
18.25
|
20
|
3.5
|
|||
|
HE1822
|
|
18.25
|
22
|
3.5
|
|||
|
HE1920
|
|
19.25
|
20
|
3.5
|
|||
|
HE2020
|
|
20.25
|
20
|
3.5
|
|||
|
HE2222
|
|
22.25
|
22
|
3.5
|
|||
|
HE2225
|
|
22.25
|
25
|
3.5
|
|||
|
HE2424
|
|
24.25
|
24
|
3.5
|
|||
|
HE3030
|
|
30.25
|
30
|
3.5
|
|||
|
HE3636
|
|
36.25
|
36
|
3.5
|
|||
Details of materials
Raw Materials
|
TUBE
|
Copper
|
Titanium
|
Aluminum
|
Carbon steel
|
|
|
Stainless steel 304
|
Stainless steel 316
|
Cu-Ni(90/10)
|
Cu-Ni(70/30)
|
|
FIN
|
Copper
|
Aluminum
|
Stainless steel
|
|
|
|
Carbon steel
|
Titanium
|
|
|
|
FRAME
|
Galvanized
|
Aluminum
|
Stainless steel
|
|
TUBES
We make tubes of different diameters, with a greater number of thicknesses and different materials such as copper, stainless steel and cupronickel. The tube expansion, during the flaring phase, allows a perfect contact between the tubes and the fins and as a consequence it assures efficient thermal exchange.
FINS
The fins, made of aluminium, prevarnished aluminium or copper, are pressed by means of a particular ondulation that increases the thermal exchange between the air and the fin reducing the load losses on the air side and encouraging at the same time the flow of condensation or defrosting water.
The fins can also be made from 316L stainless steel for installations where the thermal exchange is in aggressive environments such as the food sector or exchangers used in salty environments.
The main geometries, achievable according to the chosen material, are reported following below; besides, according to the application chosen by the customer and to the thickness of the requested strap, it will be possible to make a major or minor pitch between the fins.
Engineering Data
We have customized products for many customers, following are some projects we did before.
We can provide designing data and production drawings.
We promise we use the
design software
sold by a well-known
European HAVC software
company.
Through 8 years of cooperation with them, we have designed, processed and exported dry coolers to various countries all around the world.
All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.
Customer feedback photos
Russia epoxy coating project
Thailand chiller project
New Zealand gold fin evaporator for heat pump project
Italy 7mm fan coil unit coil
British Blygold project
Australia U-type coil project
Our Company
MORE THAN 15 YEARS OF SUCCESS
Changzhou Vrcoolertech Refrigeration Co.,Ltd specializes in researching, manufacturing and exporting Heat Exchangers, Evaporators, Condensers, air cooler and other heat transfer equipments for the varied industries since 2004.
OUR MISSION
We are committed to quality products and services to meet our customer's expectations and the needs of industrials. We are dedicated to our mission and goal and we believe in long term business relationship with our customers which is based on integrity, responsiveness and quality
A STRATEGIC LOCATION
Address: Qingsitang, Henglin Town, Wujin Dist, Changzhou, Jiangsu, China.
Tel: +86-0519-81695177
E-mail: info@vrcooler.com ; sales@vrcooler.com
Website: www.vrcoolertech.com ; www.vrcooler.com
Packing and delivery
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ
1.What is your delivery time?
20---30days.
2.What are the payment terms?
50% T/T before production and balance before shipment.
3.What is your warranty?
One year after shipping..
4.What is the valid time of the quotation?
30 days.
5.Can we do our OEM logo?
Yes, we can do OEM logo for you.
