Quick Details
-
RF flatness in band:
-
+-0.75
-
power adapter:
-
12/1A
-
power consumption:
-
6W
-
Output Level:
-
2*85dBuV
-
Dimension:
-
100*85*35mm
-
Level adjust range:
-
-20~0dBm
-
ODM/OEM:
-
Yes
-
Product name:
-
FTTH CATV optical node
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Bandwidth:
-
47-1000MHz
-
Nominal Optical power input:
-
-10~3dBm
-
RF flatness in band:
-
+-0.75
-
power adapter:
-
12/1A
-
power consumption:
-
6W
-
Output Level:
-
2*85dBuV
-
Dimension:
-
100*85*35mm
-
Level adjust range:
-
-20~0dBm
-
ODM/OEM:
-
Yes
-
Product name:
-
FTTH CATV optical node
FTTH CATV optical node with AGC for Cable TV
FEATURE
-
5-1000MHz optimization circuit design, digital display key working status.
-
By single chip microcomputer to monitor the status of receiver, digital display key working status, attenuation and the equalizer.
-
We can adjust and control the device accurately by the button locally.
-
With High sensitivity PIN O/E converter,high working reliability.Digital display optical power input.
-
External power adapter which makes easy maintenance.
TECHNICAL PARAMETERS
|
Item |
Unit |
Specification |
|
working bandwidth |
MHz |
47 - 1000 |
|
Nominal input power |
dBm |
-10~+3 |
|
RF Flatness in Band |
dB |
±0.75 |
|
Output reflection loss |
dB |
≥16(47~550MHz) / ≥14(550~862MHz/1000MHz) |
|
Link C/N |
dB |
≥51 |
|
Link C/CSO |
dB |
≥60 |
|
Link C/CTB |
dB |
≥ 65 |
|
Output level |
dBμV |
2 way distribution 85 |
|
Level adjust range |
dB |
-20 to 0 |
|
Power adapter |
V |
12V/1A |
|
Power consumption |
W |
≤6 |
|
Dimension |
Mm |
100*85*35 |
Application

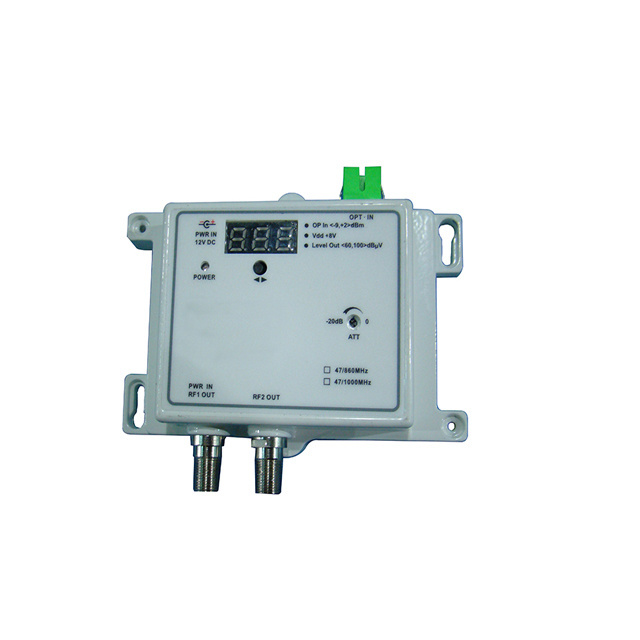

PRODUCT PICTURE
