Quick Details
-
Place of Origin:
-
China
-
Model Number:
-
TX0504XK
-
application:
-
modulators
-
Application:
-
Digital Television Front End System
-
input:
-
tuner ((DVB-S2, DVB-C, DVB-T, ISDBT optional)
-
output:
-
IP output;RF output
-
Streaming Protocol:
-
UDP/RTP/http/rtsp
-
Language:
-
Chinese and English language
-
Management:
-
web-NMS
-
Power:
-
100-240VAC
-
Size:
-
482mm*360mm*44mm
Quick Details
-
FTA(Free To Air):
-
Yes
-
Type:
-
Digital
-
High Definition:
-
Yes
-
Place of Origin:
-
China
-
Model Number:
-
TX0504XK
-
application:
-
modulators
-
Application:
-
Digital Television Front End System
-
input:
-
tuner ((DVB-S2, DVB-C, DVB-T, ISDBT optional)
-
output:
-
IP output;RF output
-
Streaming Protocol:
-
UDP/RTP/http/rtsp
-
Language:
-
Chinese and English language
-
Management:
-
web-NMS
-
Power:
-
100-240VAC
-
Size:
-
482mm*360mm*44mm

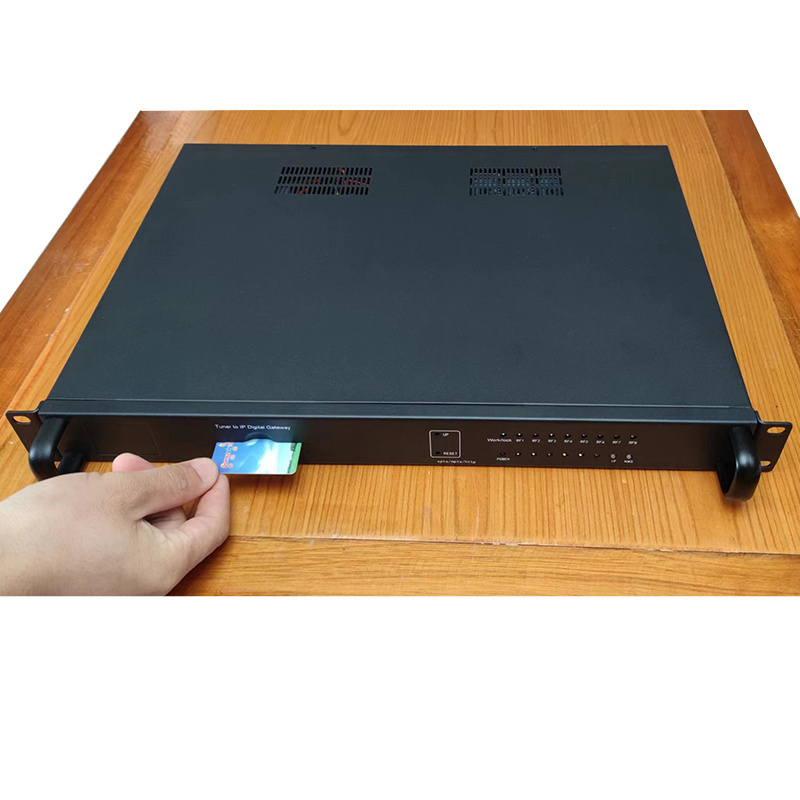

5-Channel Digital Receiver Modulator is a high performance and cost-effective receiver developed by our company for digital TV signal source in commercial place. The device supports 5+5 tuner receivers with 5 frequency point descrambling only.4 Carrier DVB-T/ISDBT/DVB-C Output RF output frequency can be adjusted arbitrarily The device adopts high-performance, low-cost, and pluggable structure design, and the module can be replaced as needed. Ideal for digital TV front-end systems in hotels, clubs and schools. Supports DVB-S2/ T2/ C optional isdbt RF signals (any two combinations) Input, output DVB-T/ISDBT DVB-C and IP multicast signals (rtp, udp) as well as unicast http signals, supports irdeto Access (Ideide), NDS, Nagravision, France Viaccess, Conax, China Digital Video, YSP, DX CA descrambling, etc.
Please note that not every encryption version is supported, as there are many versions of each encryption system.
|
Main Features
Supports 5 channels of signal input, each channel can be DVB-S/S2, DVB-T, DVB-C mode.
Supports 4 channels of DVB-T signal output, and the frequency can be set freely.
Supports IPTV input, unicast HTTP protocol, UDP multicast.
Supports external USB and video file playback
Supports IPTV unicast output of HTTP protocol, which can be played directly through network set-top box.
Support HDMI output interface for TV setup
|
|
Q1,What is your shipping method?
A1, FedEx, UPS, DHL, TNT, EMS and other international express shipping are supported. Normally, it takes 3-7 days from China to you, we will choose the best way for you based on our historical data to ensure that the package is received safely and smoothly.
Q2, Can I get some samples?
Q2, Can I get some samples?
A2, yes, of course, we are honored to provide you some samples for testing, but the samples are not free. In order to ensure the correct and safe purchase of the product, we will provide an online test.
Q3, Can you provide OEM service according to our requirements? Is it free?
Q3, Can you provide OEM service according to our requirements? Is it free?
A3, with our professional and experienced design team, we can replace your company's logo on the chassis, software interface and carton to provide OEM service.
Q4, How about your warranty?
Q4, How about your warranty?
A4, 1 year warranty free repair or replacement. We provide online technical support through remote assistance, and repair services are provided by experienced after-sales specialists.
Q5, about delivery time?
Q5, about delivery time?
A5, our fast delivery time is within 3 days after payment. In case of special circumstances, we guarantee to arrange delivery within 7 days after receipt of payment. If you would like more information about delivery time, please contact us.
Q6, about import duties?
Q6, about import duties?
A6, in most countries, imported goods need to pay import tax, all our quotations and prices do not include import tax, as for the specific price, please consult the local customs, thank you for your understanding
