Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
WORKMATES
-
Model Number:
-
EA-A
-
Product name:
-
Polyester Round Sling
-
Material:
-
PES
-
Application:
-
Lifting Goods
-
Color:
-
Customers Require
-
Safety factor:
-
5:1 6:1 7:1 8:1
-
Length:
-
Customized Length
-
Width:
-
25-300mm
-
Standard:
-
EN 1492-1:2000+JB1T8251-2007
-
Lifting Capacity:
-
1Ton-3000 Ton
-
Advantage:
-
Light Weight High Strength Safety
Quick Details
-
Type:
-
Round Sling
-
Shape:
-
Round
-
Warranty:
-
1 year
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
WORKMATES
-
Model Number:
-
EA-A
-
Product name:
-
Polyester Round Sling
-
Material:
-
PES
-
Application:
-
Lifting Goods
-
Color:
-
Customers Require
-
Safety factor:
-
5:1 6:1 7:1 8:1
-
Length:
-
Customized Length
-
Width:
-
25-300mm
-
Standard:
-
EN 1492-1:2000+JB1T8251-2007
-
Lifting Capacity:
-
1Ton-3000 Ton
-
Advantage:
-
Light Weight High Strength Safety
Product Description
Product Features:

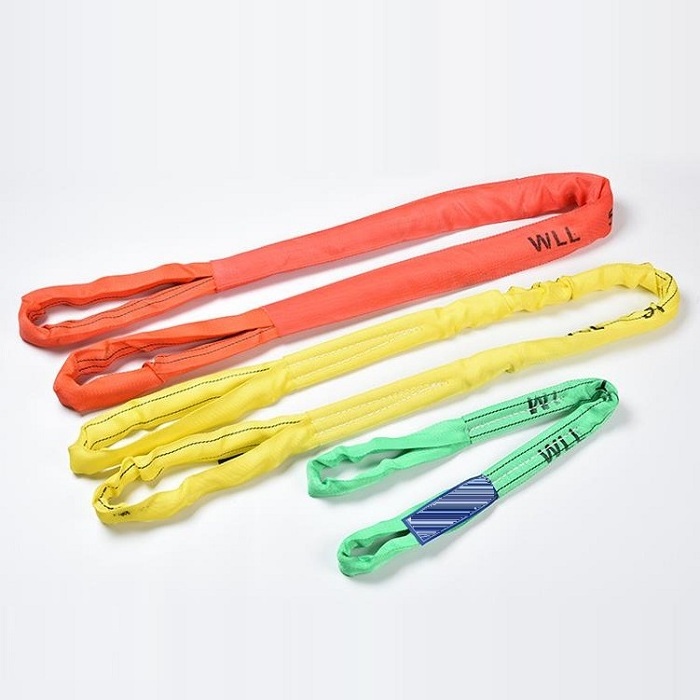

Round sling has the maximum load up to 3000T, effective length up to 100m, safety factor adopted is normally 7:1, 6:1. Round sling is made of high tension industrial yarn(100%PES), the strands inside are as a form of endless cycle.
1. Especially suitable for loading round object.
2. The surface of round sling is smooth, does not cause damages to tender objects loaded.
3. Various loading methods, including dragging or pulling loaded object.
4. Various loading methods and load is bear evenly, enable the sling's usage life last longer.
5. High strength/weight ratio.
6. Anti-abrasion and anti-incision protection sleeve can be attached.
7. Has special label, working load is
distinguished
by colors according to international standard. Easy to
recognize
even if the sling has been abrased.
8. Light and soft, can be used in small narrow space.
9. Non-electric conductive, no danger of electric stroke.
10. In compliance with European Standard EN 1492-:2000 and Chinese Standard JB/T8521-2007.
|
Sling S.F
|
5:1
|
|
6:1
|
|
7:1
|
|
8:1
|
|
||||
|
WLL
|
Width
|
M.B.S.
|
Width
|
M.B.S.
|
Width
|
M.B.S.
|
Width
|
M.B.S
|
||||
|
1T
|
25mm
|
5T
|
25/38mm
|
6T
|
30mm
|
7T
|
30mm
|
8T
|
||||
|
2T
|
50mm
|
10T
|
50mm
|
12T
|
60mm
|
14T
|
60mm
|
16T
|
||||
|
3T
|
75mm
|
15T
|
75mm
|
18T
|
90mm
|
21T
|
92mm
|
24T
|
||||
|
4T
|
100mm
|
20T
|
100mm
|
24T
|
120mm
|
28T
|
120mm
|
32T
|
||||
|
5T
|
100mm
|
25T
|
125/150mm
|
30T
|
150mm
|
35T
|
150mm
|
40T
|
||||
|
6T
|
125/150mm
|
30T
|
150mm
|
36T
|
180mm
|
42T
|
180mm
|
48T
|
||||
|
8T
|
150mm
|
40T
|
200mm
|
48T
|
240mm
|
56T
|
240mm
|
64T
|
||||
|
10T
|
200mm
|
50T
|
250mm
|
60T
|
300mm
|
70T
|
300mm
|
80T
|
||||
|
Standard
|
Special
|
|
JB/8521
|
|
EN-1492:1
|
|
AS/NSN
|
|
||||
