Quick Details
-
Brand Name:
-
OEM
-
Use:
-
cctv
-
Warranty Time:
-
1years
-
Product name:
-
3g-sdi over optic fiber converter 4 channels
-
Keywords:
-
4 port fiber optical media converter
-
Function:
-
Optical
-
Material:
-
Metal
-
Application:
-
Smart Home System
-
Item:
-
8CH
-
OEM:
-
Accetable
-
Fiber Type:
-
Single Fiber Single Mode
-
Connector:
-
SC LC FC ST MU
Quick Details
-
Type:
-
Fiber optic media converter, Digital Projector
-
Model Number:
-
SX-ST1D4T
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Use:
-
cctv
-
Warranty Time:
-
1years
-
Product name:
-
3g-sdi over optic fiber converter 4 channels
-
Keywords:
-
4 port fiber optical media converter
-
Function:
-
Optical
-
Material:
-
Metal
-
Application:
-
Smart Home System
-
Item:
-
8CH
-
OEM:
-
Accetable
-
Fiber Type:
-
Single Fiber Single Mode
-
Connector:
-
SC LC FC ST MU
System Design

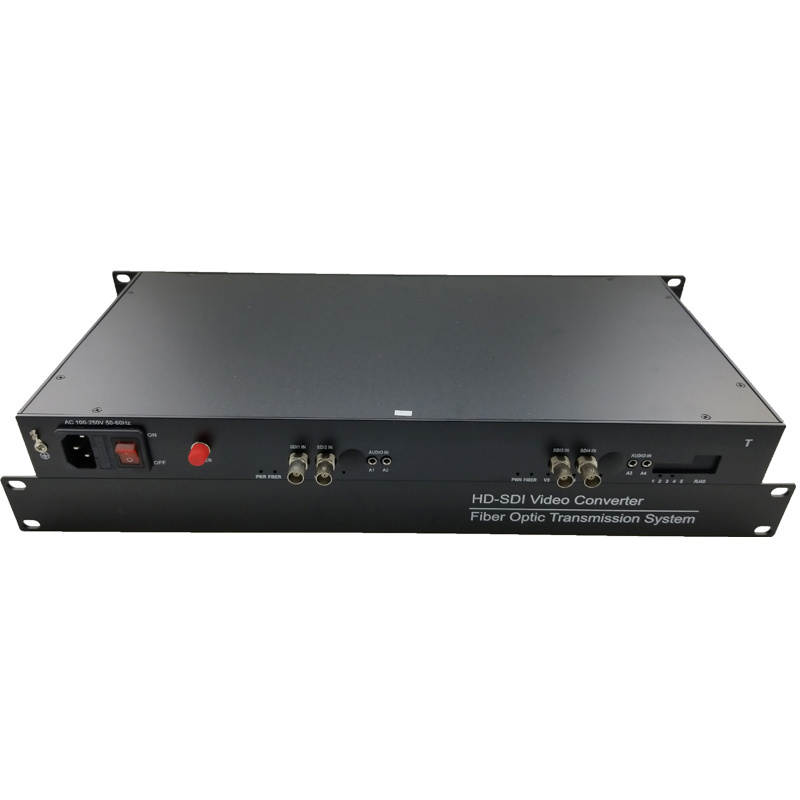

Fiber Optic Video Transmitter & Receiver
SDI series can transmission 8-Channels
3G/HD-SDI video over single core fiber.
Single-Mode
3G/HD-SDI units are designed to support LC /PC Optical connector
We can offer free patch cord + adaptor for your request for SC/PC or ST/PC or FC/PC optical connector.
The Transmission distance Range according to the Optical Budget.
Manufacturers default standard is single mode 20Km .
Features
•8 Channels Video of 3G/HD-SDI can be transmitted via single fiber
• The Max rate of work is 1.485Gb/s
• Support standard of 1.485Gbps/M(HD-SDI/ SD-SDI)
• Out wavelength range is 1310nm、1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)
• LED Status Indication to monitor the working conditions
• Video transmission system can support many application branches structure
•The fiber port Support SFP transceiver hot-plugged
Typical application
•The Optical Power Budget fit Single-Mode(9/125 m).
•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
•Maximum transmission distance is also limited by fiber bandwidth.
•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.
•Please feel free to contact factory for any special requirement and customization
Specifications
Video
Number of channels : 8 channels
Input/out put Connector : BNC 75Ω
Input/output voltage: 1.0 Volt p-p
Video SDI Standards: 270Mbps(SD-SDI)
1.485Gbps/M(HD-SDI)
Data
Data encode : RS485/RS422/RS232/Manchester
Physical interface : Industrial standard screw terminal
Frequency/Rate support : 0~400K bps
Fiber Optic
Number of Optical port : 1
Connector : Simplex FC
Transmission Distance: Single-mode 20Km
Wavelength:Single-mode:1310/1550nm (Option)
Connectors Video : BNC 75Ω
Fiber Optical : Simplex FC
Stand-alone power: DC JACK
Rack power: AC line cord
Electrical & Mechanical
Power adaptor : AC 100-240V to DC 5V 2A
Power consumption : <3W
Environmental
Operating Temperature : - 5C~+75 C
Storage Temperature : - 5 C~+85 C
Relative Humidity : 0%~95% (non-condensing)
MTBF : >100,000 hours
With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.
HD optical fiber video extender system
HDMI 1 fiber optic 8 HDMI video system
4ch Fiber optic 4ch HDMI video system
(1) UltraHD 4K/6G/12G Solution.
(2) SDI Broadcast Solution.
(3) EFP with Data,Audio,Intercom,Tally,Ethernet,Telephone to Fiber Converter.
(4) HDMI/DVI/VGA/KVM Video to Fiber Converter.
(5) Balanced Audio to Fiber Converter.
(6) 10/100Mbps and 10/100/1000bps Multi-ports Ethernet.
(7) TVI/CVI/AHD/CVBS 4 in 1 Video to Fiber Converter.
The complete product portfolio applies the latest technologies in the areas of digital and analog signal processing. we widely use of programmable technology enables rapid product adaptations as the market demands without having to develop new hardware.
This new technology has resulted in a powerful, high quality solution. All products were customized and developed in close cooperation with European and America Broadcasters who helped refine and specify features and set performance levels. All modules have been extensively field-tested by broadcasters and are widely using all over the world.
With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.
Packing
1. OEM Manufacturing welcome: Product, Package...
2. Sample order MOQ:1 pcs is ok to assess quality first
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
5.Our Delivery Terms is upon your choose
Q1: What about the lead time?
A1:Sample needs 3-5 days,mass production time needs 1-2 weeks for order quantity more than 100 PC.
Q2:How about the payment terms?
A2:We accept T/T, paypal or cash as payment .
Q3:What are your strengths?
A3:Our biggest advantage is the ODM service.
Q4:If we I am not clear about the how to use the products, what should I do?
A4:Each of our products has a manual, you can read it or you may contact with us.
