Quick Details
-
Brand Name:
-
FEXIK
-
Voltage:
-
Depends on machine model
-
Power:
-
Depends on machine model
-
Dimension(L*W*H):
-
Depends on machine model
-
Weight:
-
1500 kg
-
Marketing Type:
-
New Product 2022
-
Name:
-
Small toilet paper making machine
-
Jumbo roll width:
-
1350mm,1450mm, 1750mm,2000mm,2150mm,2400mm,2850mm
-
Output:
-
3-10 tons per day
-
Automatic type:
-
Full automatic production line
-
Control system:
-
PLC control system
-
Cutting Diameter:
-
90-300mm
-
finished roll diameter:
-
90-300 mm
-
laminaton unit:
-
yes
-
toilet paper packing machine:
-
2 rolls to 48 rolls package
-
kitchen towel packing machine:
-
2 rolls to 16 rolls package
Quick Details
-
Production Capacity:
-
200 m/min
-
Processing Type:
-
Small toilet paper making machine
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
FEXIK
-
Voltage:
-
Depends on machine model
-
Power:
-
Depends on machine model
-
Dimension(L*W*H):
-
Depends on machine model
-
Weight:
-
1500 kg
-
Marketing Type:
-
New Product 2022
-
Name:
-
Small toilet paper making machine
-
Jumbo roll width:
-
1350mm,1450mm, 1750mm,2000mm,2150mm,2400mm,2850mm
-
Output:
-
3-10 tons per day
-
Automatic type:
-
Full automatic production line
-
Control system:
-
PLC control system
-
Cutting Diameter:
-
90-300mm
-
finished roll diameter:
-
90-300 mm
-
laminaton unit:
-
yes
-
toilet paper packing machine:
-
2 rolls to 48 rolls package
-
kitchen towel packing machine:
-
2 rolls to 16 rolls package

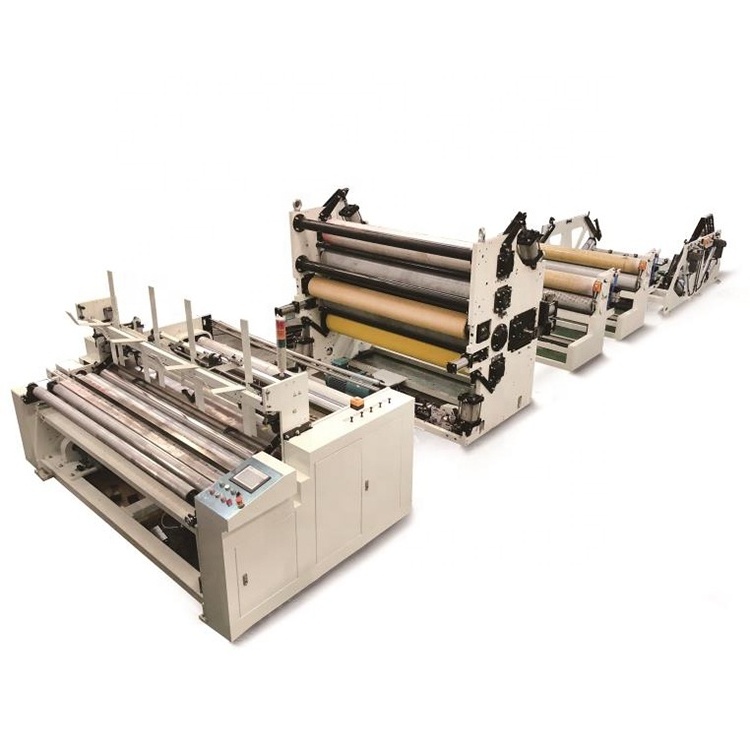

Small Manufacturing Machines Toilet Roll Tissue Paper Making Machine And Production Line
Product Application:
This is the Complete production line for toilet paper and kitchen towel. From the rewinding machine, cutting machine to packing machine.
This equipment is adjustable to meet the requested finished product of toilet paper and kitchen towel. This model is the ideal equipment for paper making factory and paper converting factory.
Automatic Rewinding machine
1. When the core unit can not detect core or core will use up, the machine will alarm to tell operator or workers to put some cores on the core bracket.
2. Degree of tightness can be adjusted while a log is rewinding.It can produce different degree of tightness in one log.
3. When a log is rewinding,the next core is ready.
4. When the finished log come to tail sealer, trimming, glue spraying and sealing can be finished at the same time.
5. Embossing unit and glue lamination,edge embossing unit,printing system is order by customer.
|
Jumbo roll width
|
1350mm, 1450mm, 1750mm, 1930mm,2150mm,2750mm,2850mm, 2950mm
|
|
|
||
|
Finished roll diameter
|
90-300 mm
|
|
|
||
|
Perforation
|
4PCS sprial upper perforation knives,improve the durability
|
|
|
||
|
Control system
|
Siemens PLC,inverter,etc.
|
|
|
||
|
Glue Lamination unit
|
According to customer's requirements
|
|
|
||
F-T8 Toilet paper and kitchen towel wrapping machine
Main Features:
The rolls are coming by five channels conveyor; they are launched in the number of lanes according to packaging configuration needed, which is set by HMI, in the single layer or double layers into infeed section, where they are transported and stacked by group of carbon bars mounted on trimming belts. Carbon bars convey the group of rolls on the elevator, which leads them into the area of folding. The foil positioning section brings the packaging film directly above the rolls by transport belts. The folding process is performed by universal side folders, as well bottom folder and counter folder. Side folding is done by innovative air supported mechanical folders. The overhead pack transport section continuously moves the pack through section of side folding and rotating bottom sealer and deliver pack to side sealing section. All motions and functions are fully controlled by the 27 independent servo axis.
|
Items
|
|
Technical parameters
|
|
||
|
Packing speed
|
|
160+ bags/min (steady speed)
180 bags/min (max) |
|
||
|
Size rang bag
|
|
Max L630*W265*H300(mm)
|
|
||
|
Roll diameter
|
|
90-160(200)mm
|
|
||
|
Power supply
|
|
380V 50HZ
|
|
||
|
Air consumption
|
|
<500L/min
|
|
||
|
Wrapping material
|
|
PE/LDPE
|
|
||
|
Infeed
|
|
5 lanes
|
|
||
|
Power consumptoin
|
|
18 KW
|
|
||
|
Machine weight
|
|
8000kg
|
|
||
|
Color
|
|
White or custom
|
|
||
Possible Packs Configurations:
Packaging:
• Cover with plastic film.
• Packed with wood tray or wood case, it depends on the machine model.
Delivery terms:
• 30% with the order as down-payment.
• 70% after machine completion, but before shipment.
• Will finished manufacturing in 60days after received the down-payment.
Pre-Sales Service
* Solutions provide services
* Sample testing support
* View our Factory
After-Sales Service
* One year warranty
* Training how to install and use the machine
* Engineers available to do machinery service overseas
Related Products:
Liuzhou Fexik Intelligent Equipment Co., Ltd.
Liuzhou Fexik Intelligent Equipment Co., Ltd
is a a professional high technology company. As a leading manufacturer and exporter of tissue paper machinery in China. Serve the facial tissue converting and packing production line, toilet tissue and kitchen towel rewinding and packing production line, hand towel folding and packing production line around the world. Our main market is Europe and America, Middle East, South America.
Fexik Machinery had passed international certification I S O 9 0 0 1 and several national invention patents, with full independent intellectual property rights. Our strength is our powerful research and development team that can rapidly customize unique solutions to meet the ever-changing market demands and special requirements from customers. We can provide solutions to customers from products choosing, designing, installing and training. From upfront engineering to ongoing technical support, our designs are focused on meeting the regulations of human and product safety as well as the environment in every market that we serve.
We have been attended many exhibitions all over the world, such as Tissue world in Milan, Miami, Turkey, and Egypt.
Customer Care !
Q1.How does your factory do regarding quality control?
A1: We control the quality from very beginning.All products process to be detailed. There is also independent QC team who has full time control the production quality.
Q2.Do you offer guarantee for the machine?
A2: Yes, we offer 12 months guarantee for the machine.
Q3.Can you offer the OEM for us?
A3: We welcome you to be OEM client and we are willing to discuss all the details and requirements with you before we issue a formal plan.
Q4.Why choose us?
A4: We focus on tissue paper processing machinery manufacturing for more than 6 years. We establish cooperative relationship with big company and sale out many machines all over the world. Providing excellent quality reasonable price and best service always is our mission.
