Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfect Laser
-
Marking Head Brand:
-
SINO
-
Weight (KG):
-
62 KG
-
Machinery Test Report:
-
Provided CE Certificate
-
Woking area:
-
110*110mm
-
Marking Speed:
-
1-8000mm/s
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Machine includes:
-
pre-loaded legitimate computer
-
marking material:
-
Metals and Nonmetals
-
Marking Depth:
-
0.01-4mm
-
Product Name:
-
3D Fiber Laser Mark Machine for Metals and Nonmetals
-
Marking material:
-
ss aluminum metal plastic
-
Laser head:
-
Galvenometer Head
-
Lifespan of laser device:
-
100,000 hours
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfect Laser
-
Marking Head Brand:
-
SINO
-
Weight (KG):
-
62 KG
-
Machinery Test Report:
-
Provided CE Certificate
-
Woking area:
-
110*110mm
-
Marking Speed:
-
1-8000mm/s
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Machine includes:
-
pre-loaded legitimate computer
-
marking material:
-
Metals and Nonmetals
-
Marking Depth:
-
0.01-4mm
-
Product Name:
-
3D Fiber Laser Mark Machine for Metals and Nonmetals
-
Marking material:
-
ss aluminum metal plastic
-
Laser head:
-
Galvenometer Head
-
Lifespan of laser device:
-
100,000 hours

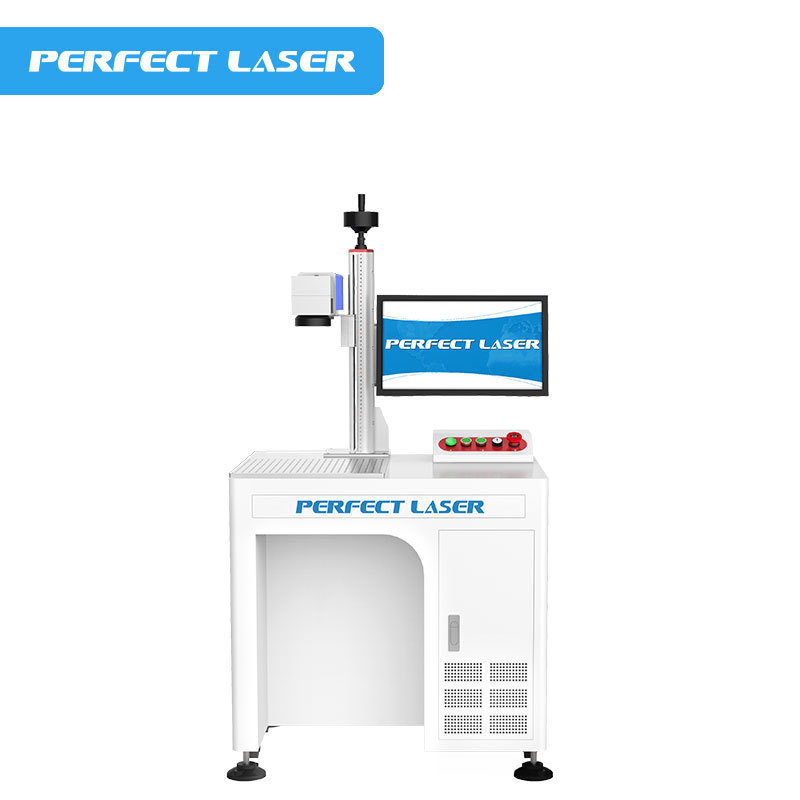

20W 30W 50W 100W 3D dynamic Curved Surface MAX Raycus IPG Fiber Laser Marker Etcher Engraver Etching Engraving Marking Machines
(Model:PEDB-400D)
Product Description
Perfect Laser can control the software and hardware through the 3D mark, Configured with specialized 3D vibrating mirror,and the laser beam can mark on arbitrary 3D sculptured surface. It can work on sculptured surface without defocus.
This type 3D mark machine is suitable for rotary marking or flat marking in high speed ,large format and high flexibility.,so widely praised at home and abroad.
This type 3D mark machine is suitable for rotary marking or flat marking in high speed ,large format and high flexibility.,so widely praised at home and abroad.
Machine Features
1. 3D mark machine using the German IPG fiber laser, the beam quality is much better than the traditional, the spot is smaller,suitable for precision fine marking
2. 3D mark machine using the US import scanning system and scanning head, infrared focusing system (optional) without measuringthe focal length, so that work more convenient.
3. Spot quality of 3D mark machine is good, power stability, 3D marker's life more than 100,000 hours.
4. Free off Maintenance.
5. High precision of 3D positioning technology, high-speed focusing and scanning system, short pulse, high-peak power and HPRF (High Pulse Repetition Frequency). Our 3D marker work efficiency than similar models increased by 20%
6. 3D marker Software control system can automatically calculate the arc radian, automatically adjust the focal length
7. 3D marker can be marked on multi-level large format,on the three-dimensional surface, on the plane, according to the need to configure various types of lasers.
8. 3D mark machine with High Photoelectric conversion rate , up to 30%, the whole power less than 800W, saving energy consumption.
9. 3D marker with friendly operation interface, it is suit for many file formats, such as dxf, plt, cnc, step, iges, etc.,
10. 3D marker with High electro-optic conversion efficiency, long life and easy maintenance.
11. 3D marker with fast marking speed and high processing efficiency.
2. 3D mark machine using the US import scanning system and scanning head, infrared focusing system (optional) without measuringthe focal length, so that work more convenient.
3. Spot quality of 3D mark machine is good, power stability, 3D marker's life more than 100,000 hours.
4. Free off Maintenance.
5. High precision of 3D positioning technology, high-speed focusing and scanning system, short pulse, high-peak power and HPRF (High Pulse Repetition Frequency). Our 3D marker work efficiency than similar models increased by 20%
6. 3D marker Software control system can automatically calculate the arc radian, automatically adjust the focal length
7. 3D marker can be marked on multi-level large format,on the three-dimensional surface, on the plane, according to the need to configure various types of lasers.
8. 3D mark machine with High Photoelectric conversion rate , up to 30%, the whole power less than 800W, saving energy consumption.
9. 3D marker with friendly operation interface, it is suit for many file formats, such as dxf, plt, cnc, step, iges, etc.,
10. 3D marker with High electro-optic conversion efficiency, long life and easy maintenance.
11. 3D marker with fast marking speed and high processing efficiency.
Samples&Application
This type 3D mark machine is suitable for all kinds of metals and nonmetals laser marking on 3D surface. It’s widely used in
mobile manufacture, cubic circuits, medical equipments, moulds, 3C electronics, auto parts, electronic communication, etc.
mobile manufacture, cubic circuits, medical equipments, moulds, 3C electronics, auto parts, electronic communication, etc.
Machine details
Specification
|
Model
|
PEDB-400M
|
|
|
||
|
Laser Source
|
Imported Fiber laser
|
|
|
||
|
Wavelength
|
1064nm
|
|
|
||
|
Output Power
|
20W
|
30W
|
50W
|
||
|
Plane maximum marking format
|
160*160mm
|
|
|
||
|
Surface maximum marking format
|
120*120mm
|
|
|
||
|
Beam quality M2
|
＜1.2
|
|
|
||
|
Pulse Repeatable Frequency
|
10kHz~200kHz
|
|
|
||
|
Cooling Method
|
Air cooling
|
|
|
||
|
Marking way
|
XYZ Triaxial dynamic focusing
|
|
|
||
|
Focusing range
|
≤±30mm
|
|
|
||
|
highest machining speed
|
350 character/s
|
|
|
||
|
Repeat marking accuracy
|
8urad
|
|
|
||
|
Operating Ambient Temperature
|
Temperature：10℃~35℃ Humidity：5%~75%
|
|
|
||
|
Power Demand
|
Single phase AC110V/220V 10A
|
|
|
||
|
Power consumption
|
≤750W
|
≤1200W
|
≤1500W
|
||
