Quick Details
-
Brand Name:
-
DJYOKE
-
Model Number:
-
HY-60W-24V2.5A-WZ
-
Output Frequency:
-
0
-
Output Current:
-
2.5(A)
-
Warranty:
-
2 Years
-
Type:
-
Constant Voltage
-
Weight:
-
150
-
Output:
-
24V
-
MOQ:
-
100pcs
-
Color:
-
yellow
-
Packing:
-
Carton
-
SHIPPING WAY:
-
DHL\UPS\Fedex\TNT\EMS\ARAMEX
-
Quality:
-
High Quality
-
Usage:
-
Electronic Products
Quick Details
-
Input Voltage:
-
110-265V
-
Output Voltage:
-
DC24(V)
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DJYOKE
-
Model Number:
-
HY-60W-24V2.5A-WZ
-
Output Frequency:
-
0
-
Output Current:
-
2.5(A)
-
Warranty:
-
2 Years
-
Type:
-
Constant Voltage
-
Weight:
-
150
-
Output:
-
24V
-
MOQ:
-
100pcs
-
Color:
-
yellow
-
Packing:
-
Carton
-
SHIPPING WAY:
-
DHL\UPS\Fedex\TNT\EMS\ARAMEX
-
Quality:
-
High Quality
-
Usage:
-
Electronic Products
Main products
Product Description

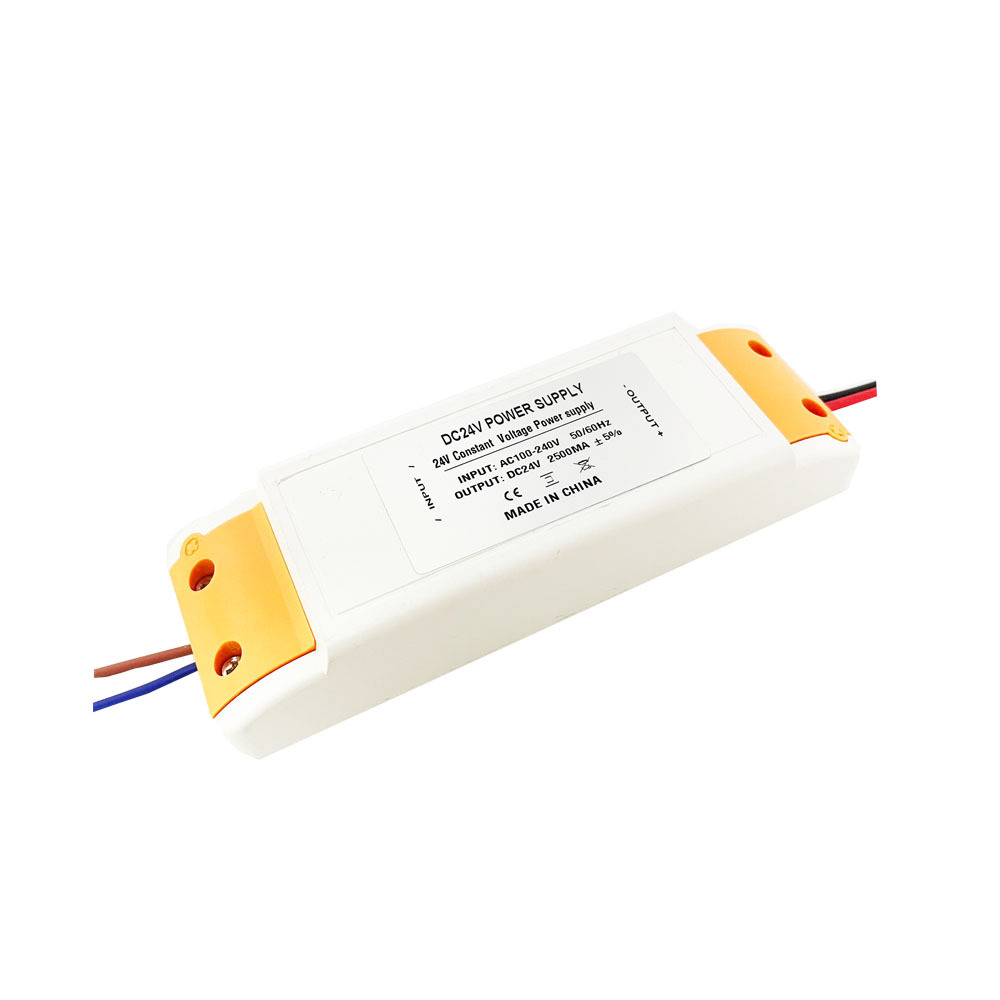

60W High quality led driver 24v 2.5a fan power and other electronic products external constant voltage power supply 03
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
DJYOKE
|
|
Model Number
|
24V2.5A-1404528
|
|
Output Power
|
24V2.5A
|
|
Input Voltage
|
24(V)
|
|
Output Voltage
|
DC24(V)
|
|
Output Current
|
2.5(A)
|
|
Product Name
|
external constant voltage power supply
|
|
Warranty
|
after-sale service
|
|
Type
|
power swicth
|
|
Packing
|
paper carton
|
product details
|
1.Input parameters
|
Parameters
|
Unit
|
Test description
|
Minimum
|
Typical
|
Maximum
|
||||
|
|
Input Voltage
|
V(AC)
|
Normal
|
110
|
220
|
265
|
||||
|
|
Input frequency
|
HZ
|
Normal
|
43
|
50
|
65
|
||||
|
|
Power factor
|
PF
|
Normal
|
0.456
|
0.73
|
0.793
|
||||
|
|
Input Inrush Current
|
A
|
Cold start under normal conditions
|
|
|
|
||||
|
2.Output parameters
|
Parameters
|
Unit
|
Minimum
|
Typical
|
Maximum
|
|
||||
|
|
Output current
|
MA
|
0
|
2500
|
2500
|
|
||||
|
|
Output voltage
|
V
|
24
|
24
|
24.3
|
|
||||
|
|
Output ripple
|
MV
|
|
|
|
|
||||
|
|
Constant current accuracy
|
%
|
1%
|
3%
|
5%
|
|
||||
|
3.Overall performance
|
AC Input
|
|
Output
|
|
|
|
||||
|
|
Input Voltage(V)
|
Power consumption(W)
|
Output voltage(V)
|
Output current(MA)
|
Power Factor
|
Efficiency
|
||||
|
|
110
|
76.3
|
24.28
|
2500
|
0.728
|
0.80
|
||||
|
|
120
|
75
|
24.29
|
2500
|
0.793
|
0.81
|
||||
|
|
170
|
73.6
|
24.3
|
2500
|
0.76
|
0.83
|
||||
|
|
220
|
73.2
|
24.3
|
2500
|
0.73
|
0.83
|
||||
|
|
240
|
73
|
24.3
|
2500
|
0.718
|
0.83
|
||||
|
|
265
|
72
|
24.3
|
2500
|
0.705
|
0.84
|
||||
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
||||
|
Using environment
Parameters
|
Parameters
|
Unit
|
Test description
|
Minimum
|
Typical
|
Maximum
|
|
|
Working ambient temperature
|
℃
|
Full load operation
|
-18
|
+40
|
+60
|
|
|
Storage ambient temperature
|
℃
|
|
-25
|
25
|
+75
|
