Pulleys and auto parts production line fully automatic horizontal and vertical green sand molding machine

Pulleys and auto parts production line fully automatic horizontal and vertical green sand molding machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $200000

≥3 Sets

US $190000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 3000

Product name:: Automatic sand molding machine

Usage:: Foundry sand processing

After Warranty Service:: Video Technical Support

Suitable metal:: Clay sand

Technology:: Green Sand Casting Technology

Spare parts:: Lifetime service

ODM:: Yes

Delivery time:: about 7 days

Test before delviery:: Yes

Capacity:: Customized

Quick Details

Place of Origin:: Shandong, China

Machine Type:: Automatic sand molding

Brand Name:: JICHUAN

Weight (KG):: 3000

Product name:: Automatic sand molding machine

Usage:: Foundry sand processing

After Warranty Service:: Video Technical Support

Suitable metal:: Clay sand

Technology:: Green Sand Casting Technology

Spare parts:: Lifetime service

ODM:: Yes

Delivery time:: about 7 days

Test before delviery:: Yes

Capacity:: Customized

Automatic sand casting flaskless molding machine is for automatic mass production of small and medium clay sand castings. Especially for casting weight is below 50kg and without sand core or simple core. Such as machinery parts, auto and motorcycle parts, valves, bearings, cylinder head, flywheel housing and brake caliper, but also pipe fitting, shaft and cover, like T joint, elbow and clampetc . More competitive for those products require inner sand core

Flaskless molding machine has the advantages of light equipment, small footprint, high safety performance, simple modeling, high precision, make low noise and wide application range.

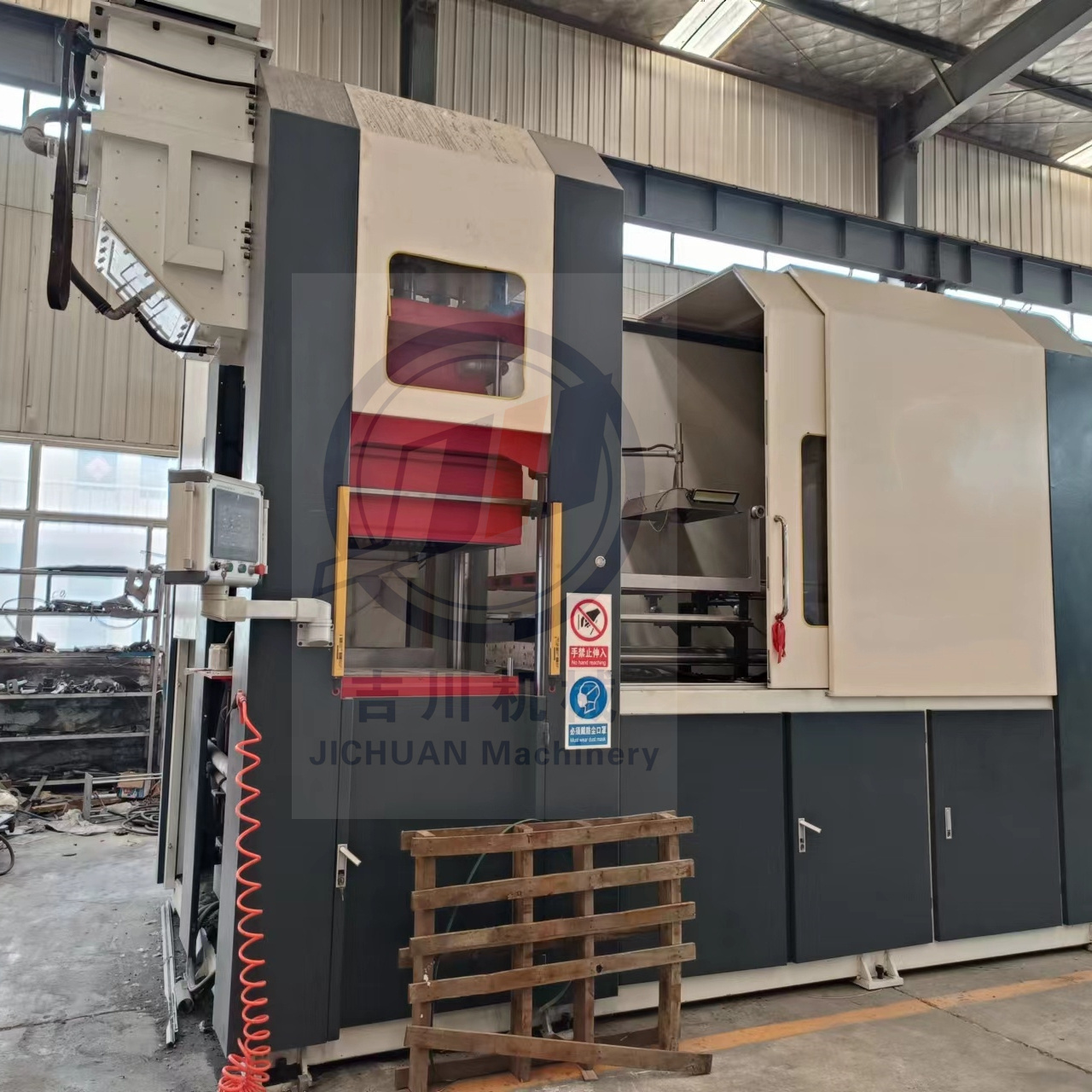

Automatic Sand Molding Machine, Continuous Horizontal Flaskless Casting Line

The Automatic Sand molding line adopts PLC control, stable and reliable, can realize automatic operation, simple and convenient operation, small area, high productivity, suitable for the production of automotive parts, such as cylinder head, flywheel shell, brake pliers, etc. Also suitable for the production of pipe, valve, shaft, cover plate parts, such as through, three links, bends, pipe clamps and so on. Is the most popular molding equipment in the foundry.

Advantages:

1..The Unique Principle of Sand Adding and Shooting

2. Four column guide, hydraulic cylinder anti-stuck system

3. Adjustable height of sand mold, saving sand

4.Fully automatic one key operation

5. Mould plate is easy to install

6. The hardness of casting is adjustable

7. high speed of molding

Parameter:

Model	JCZD5565	JCZD6070	JCZD7080
Size (mm)	550*650	600700 700700	700800 800800
Height (mm)	Top box 200-260(adjustable) Bottom box 200-260(adjustable)	Top box 200-260(adjustable) Bottom box 200-260(adjustable)	Top box 200-260(adjustable) Bottom box 200-260(adjustable)
Capacity (s/m)	40-45	45-50	45-50
Pressure (Mpa)	0.7-0.9	0.7-0.9	0.7-0.9
Air consumption (m3/h)	1.2	1.5	2
Oil pressure	8.5	9	10
Power (kW)	15	18.5	18.5
Sand consumption (T/h)	16-18	16-18	20-24

Model	JCZS426	JCZS427	JCZS428	JCZS4210
Size (mm)	610508130-180 660508130-180	700600130-180 600600130-180	800700200-250 800800200-250	1000800200-280 10001000200-280
Capacity (s/m)	40-45	45-50	50-55	55-60
Pressure (Mpa)	0.7-0.9	0.7-0.9	0.7-0.9	0.7-0.9
Air consumption (m3/h)	1	1.2	1.6	2
Oil pressure	10.6	9.2	8.9	8.5
Power (kW)	15	18.5	22	30
Sand consumption (T/h)	10.5-17	12-22	23-30	30-40
