Quick Details
-
Attenuation Range:
-
0-30db
-
Operating Wavelength:
-
SM:1310/1550nm; MM: 850 /1300n
-
Type:
-
Plug-in type
-
Return Loss(dB):
-
PC:≥50 UPC: ≥55 APC: ≥60
-
Insertion Loss:
-
IL<0.2DB
-
Durability:
-
>1000 matings
-
Application:
-
Telecommunication
-
Certification:
-
ISO9001:2008,ROHS
-
Mode:
-
SM/MM
-
Operating Temperature:
-
-40--+85°C
Quick Details
-
Model Number:
-
Fiber optic attenuator
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Foclink/OEM
-
Attenuation Range:
-
0-30db
-
Operating Wavelength:
-
SM:1310/1550nm; MM: 850 /1300n
-
Type:
-
Plug-in type
-
Return Loss(dB):
-
PC:≥50 UPC: ≥55 APC: ≥60
-
Insertion Loss:
-
IL<0.2DB
-
Durability:
-
>1000 matings
-
Application:
-
Telecommunication
-
Certification:
-
ISO9001:2008,ROHS
-
Mode:
-
SM/MM
-
Operating Temperature:
-
-40--+85°C

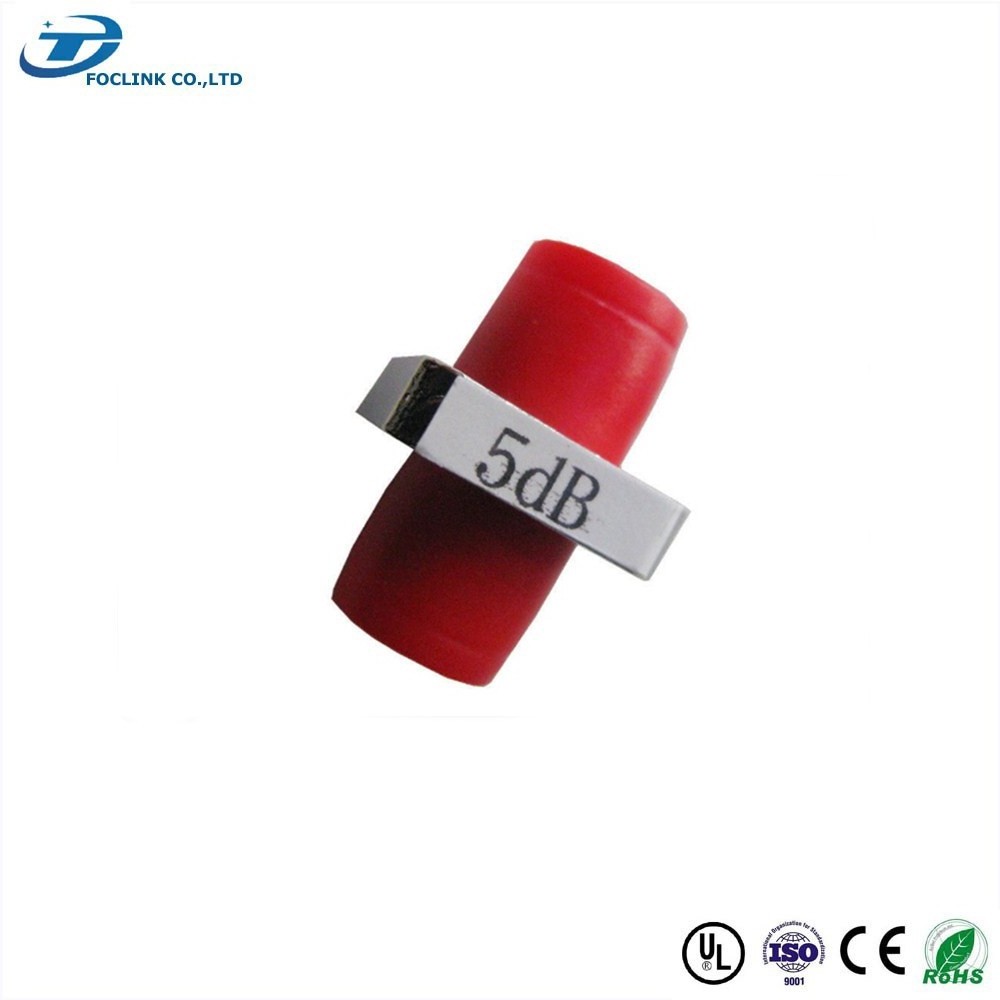

2017 NEW CATV RF attenuator,optical attenuator/attenuation fiber,variable attenuator/step
Features
1.
Low back reflection and Low PDL
2.
High precision attenuation value
3.
Precision control of attenuation range
4.
Wide attenuation range
5.
Precision ceramic ferrule
6.
FC, SC, ST, LC … optional
7.
Plastic or metal housing material
Attenuator applications
1. EDFA, DWDM, Long-haul
2. Wide-Area Networks
3. Telecommunication networks
4. Gigabit applications ( ATM,Ethernet )
Technical parameters
|
Item |
Specification |
||
|
PC |
UPC |
APC |
|
|
Operating Wavelength (nm): |
1310/1550 |
||
|
Return Loss (dB): |
≥50 |
≥55 |
≥60 |
|
Attenuator Value: |
According to custom request make 1—30dB |
||
|
Maximum Optical Input Power: |
200mW |
||
|
Bellcore Compliant: |
Wavelength Independent (DWDM) |
||
|
Operating Temperature: |
-40--+85°C |
||
|
Attenuation Accuracy: |
+/-0.5 (1-10) +/-1.0 (11-30) |
||
|
Durability (well over 100mw): |
Simple and Reliable Structure |
||
|
Storage Temperature: |
-40--+85°C |
||
- Certified with ISO9001:2000 and ISO14001:2004
- QMS covers all processes from design and development through product shipment and post shipment support.
