Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Diese
-
Model Number:
-
2201MW+WP27
-
Operating Temperature:
-
-30 ℃ -70 ℃
-
Working voltage:
-
AC85V-240V
-
Output Input Volt:
-
1-250V
-
Max current:
-
10A
-
RF Frequency:
-
433MHz
-
Frequency:
-
2.4GHz WIFI
-
Amount of storage remote controls:
-
20pcs
-
Size:
-
47*42*23 mm
-
Encoding Type:
-
1527 Learning code /2262 fixed code
-
Feature1:
-
Smart phone app control,Wireless switch control,Alexa voice control
-
Feature2:
-
Tuya or Smart Life
Quick Details
-
Max. Current:
-
10A
-
Max. Voltage:
-
250V
-
Customized support:
-
Logo
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Diese
-
Model Number:
-
2201MW+WP27
-
Operating Temperature:
-
-30 ℃ -70 ℃
-
Working voltage:
-
AC85V-240V
-
Output Input Volt:
-
1-250V
-
Max current:
-
10A
-
RF Frequency:
-
433MHz
-
Frequency:
-
2.4GHz WIFI
-
Amount of storage remote controls:
-
20pcs
-
Size:
-
47*42*23 mm
-
Encoding Type:
-
1527 Learning code /2262 fixed code
-
Feature1:
-
Smart phone app control,Wireless switch control,Alexa voice control
-
Feature2:
-
Tuya or Smart Life
Product Description

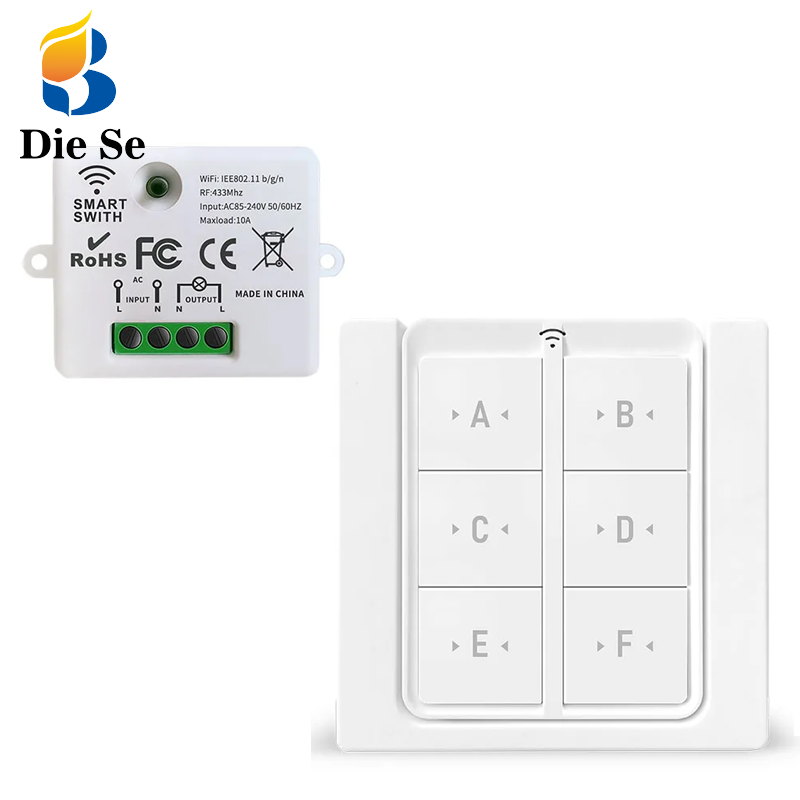

Wifi Curtain
|
|
|
Working volt
|
AC85V-240V
|
|
Max Current
|
10A
|
|
Output/Input vlotage
|
1~250V
|
|
Wifi Frequency
|
433.92MHZ +2.4GHz WIFI
|
|
Range
|
0-50meters(open space)
|
|
Relay Plastic Box
|
42*47*23mm
|
|
Quiescent Current
|
<5MA
|
|
Receiving Sensitivity
|
>97dbm
|
|
Amount of storage remote controls
|
20pcs
|
|
Support encoding
|
1527 Learning code /2262 fixed code
|
|
RF Operating mode
|
ASK superheterodyne wireless reception
|
|
Wall Panel Switch
|
|
|
RF frequency
|
433MHz
|
|
Support encoding
|
1527 Leaning code
|
|
Battery
|
2pcs CR2016(Include)
|
|
Transmitting range
|
Open space is more than 50 meters
|
How to use
Work in RF way
Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds;
Step 2: Press A button once. Wait for 3 seconds.Toggle mode Succeed.
Now press A, this light switch will work, press A again, light switch will stop;
Do the same thing again to pair with B button-light switch 2, C button-light switch 3.....
How to clear the signals
Only one step :Press the learning button(on the light switch) 8 times. Wait for 3 seconds;
Work in RF way
Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds;
Step 2: Press A button once. Wait for 3 seconds.Toggle mode Succeed.
Now press A, this light switch will work, press A again, light switch will stop;
Do the same thing again to pair with B button-light switch 2, C button-light switch 3.....
How to clear the signals
Only one step :Press the learning button(on the light switch) 8 times. Wait for 3 seconds;
Work in WiFi
1 : Search "Smart Life or Tuya Smart" on APP store, Google Play or scan the QR code on user manual to download and install it.
2 : Press the button on switch until the indicator light flash. You can also hear a voice too.
3 : Open "Smart Life or Tuya Smart App", discovery and add device in the app, and then finish configuration according to the guide.
1 : Search "Smart Life or Tuya Smart" on APP store, Google Play or scan the QR code on user manual to download and install it.
2 : Press the button on switch until the indicator light flash. You can also hear a voice too.
3 : Open "Smart Life or Tuya Smart App", discovery and add device in the app, and then finish configuration according to the guide.
Packing&Shipping
Company Introduction
FAQ
1 .What are the advantages of your company?
A .We have our own factory and we are trading many years;
B. Meet the requirements of the quantity OEM & ODM order available;
C.CE& FCC certification;
D.Offer samples to test.
2. How to proceed an order ?
A: Firstly let us know your requirements or application.
Please confirm the frequency first: 315mhz 433mhz or 868mhz
Then please confirm the chip: rolling code : HCS301, HCS300, HCS200 etc.
Learning code: PT2240, EV1527 etc. Fixed code :SC2260 , SC2262, etc.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.。
3. How can we contact you?
A:Whatsapp:+86 15202080449
B:Wechat:15202080449
C:Email:diese_ali@163.com
4. What about the lead time?
A:Sample needs 2-5 days, 1000 piece production time needs 1 weeks for order quantity more than
5. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
6. What services can we provide?
Accepted Delivery Terms: CIF,EXW;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
7. Is it OK to print my logo on Remote control and receiver product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
8: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
9: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new one to you immediately.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
