Quick Details
-
Place of Origin:
-
GUA
-
Brand Name:
-
BesView
-
Model Number:
-
BC-IP51YRW-8M6-PM
-
Video Compression Format:
-
H.264/H.265
-
Product name:
-

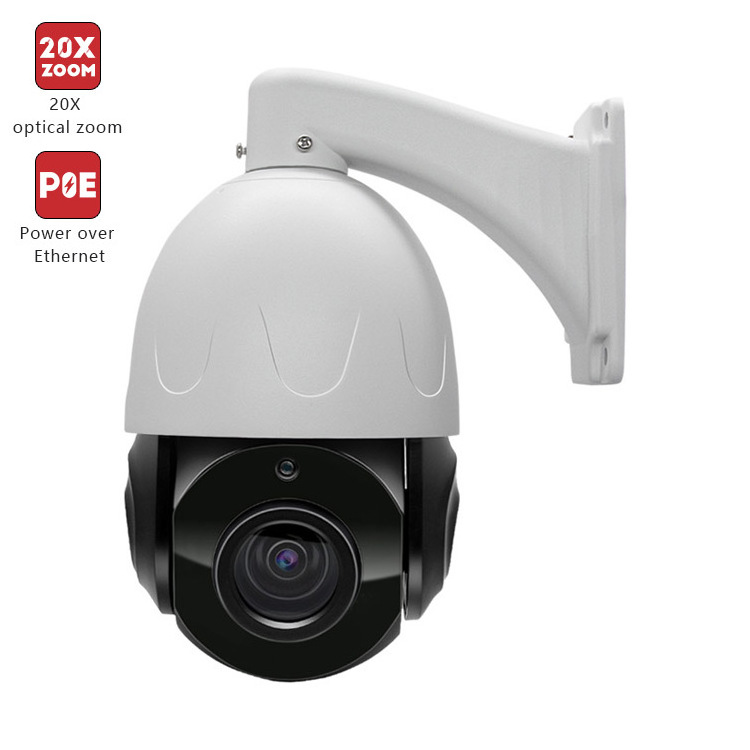

4K IP 20X high Speed Dome Camera
-
Resolution:
-
8MP@15fps
-
Image Sensor:
-
1/2.7'' Cmos Sensor
-
Lens:
-
20X 4.7-94mm Motor Lens
-
IR Distance:
-
100m
-
PTZ:
-
Pan:0-360°/Tilt:0-90°@45°/s/Zoom 20X
-
IR LED:
-
8PCS LEDS
-
Waterproof:
-
IP66
-
Color:
-
White
Quick Details
-
Special Features:
-
NIGHT VISION, One-way Audio, Human Motion Tracking, Motion Detection, Vandal-proof, Waterproof / Weatherproof, PAN-TILT
-
Function:
-
Waterproof / Weatherproof, Wide Angle, One-way Audio, Vandal-proof, PAN-TILT, NIGHT VISION, Built-in Mic
-
Customized support:
-
Online technical support, Customized logo, Software reengineering, OEM, ODM
-
Place of Origin:
-
GUA
-
Brand Name:
-
BesView
-
Model Number:
-
BC-IP51YRW-8M6-PM
-
Video Compression Format:
-
H.264/H.265
-
Product name:
-
4K IP 20X high Speed Dome Camera
-
Resolution:
-
8MP@15fps
-
Image Sensor:
-
1/2.7'' Cmos Sensor
-
Lens:
-
20X 4.7-94mm Motor Lens
-
IR Distance:
-
100m
-
PTZ:
-
Pan:0-360°/Tilt:0-90°@45°/s/Zoom 20X
-
IR LED:
-
8PCS LEDS
-
Waterproof:
-
IP66
-
Color:
-
White
Product Description
8
MP High Speed Dome PTZ IP Camera Features:
• Max.
3840*2160
@15fps(50Hz/60Hz)
• Support RTSP&Onvif(17.2 Version).Compatible with many third-party NVRs and CMS
• Support multiply Web Browsers: IE/Firefox/Chrome/Safari etc.
• P2P Cloud service
• Free PC Client Software and Smartphone APP(P2P)
• Support Alarm Snapshot to Email and FTP
• Day/Night, AWB/MWB,BLC, 3D-DNR,Shutter, IR-CUT, D-WDR,Mirror, Image Flip etc. Functions
• 20X 5-90mm Motor Lens
• IR range: up to 100m
• Pan:0-360°/Tilt:0-90°@45°/s/Zoom 20X
• Support 256 Preset Points/Cruise functions
Dimension Figure:
Related Products
H.265/H.264 8MP 20X
Auto Tracking PoE IP PTZ Camera
Product Paramenters
|
Camera:
|
|
|
|
Image Sensor:
|
1/2.7'' Cmos Sensor
|
|
|
Signal System:
|
PAL/NTSC
|
|
|
Min. Illumination:
|
Color: 0.05lux @(F1.2, AGC ON), 0 lux with IR
|
|
|
Shutter Time:
|
1/25 s to 1/100,000 s
|
|
|
Lens:
|
20X 5-90mm Motor Lens
|
|
|
Day&Night:
|
IR cut filter with auto switch
|
|
|
Image Enhancement:
|
BLC/3D DNR/D-WDR
|
|
|
Motion Detection
|
Support
|
|
|
Privacy Protection
|
Support(4 Self-customized Areas)
|
|
|
Wather-Proof:
|
IP66
|
|
|
Illumination for Infrared Switching:
|
0.5~3Lux
|
|
|
Infrared Wavelength:
|
850nm
|
|
|
Mimimum Illumination:
|
0 Lux(IR ON)
|
|
|
IR Range:
|
8PCS LEDS//100m IR
|
|
|
Compression Standard:
|
|
|
|
Video Compression:
|
H.265/H.264/MJPEG
|
|
|
Video Bit Rate:
|
512Kbps~3072Kbps(main stream H.265)
64kbps~512Kbps(sub stream H.265)
|
|
|
Audio Compression:
|
G711U/G711A
|
|
|
Dual Streams:
|
Yes
|
|
|
Triple Streams:
|
No
|
|
|
Image:
|
|
|
|
Max. Image Resolution:
|
3840*2160@15fps(8MP)
|
|
|
Frame Rate:
|
25fps(5MP).MAX main stream
30fps（D1) .MAX sub stream
|
|
|
Image Settings:
|
3D NR, D-WDR, Image Flip, Saturation, Brightness, Contrast, Sharpness adjustable via client software, web browser or Smartphone App
|
|
|
Day/Night Switch:
|
EXT/Day/Night/Auto/Time
|
|
|
Audio
|
|
|
|
Line IN/line OUT：
|
Support（1ch）
|
|
|
Build-in MIC/SPK：
|
Optional
|
|
|
Volnume adject：
|
Yes
|
|
|
Network:
|
|
|
|
Network Protocols:
|
HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, IP Search(Support P6S IP camera, DVR, NVS etc.)
|
|
|
System Compatibility:
|
ONVIF(17.2)/P6S
|
|
|
On-line Viewing
|
Max. Support 6 Users Simultaneously
|
|
|
Interface:
|
|
|
|
Communication Interface:
|
1 RJ45 10M / 100M Ethernet Interface
|
|
|
RCA Audio Interface:
|
RCA Audio input/output Interface (Optional)
|
|
|
Alarm in/out interface：
|
Support（1ch） （Optional）
|
|
|
SD card interface
|
Support TF card（micro TF card，up to 128G） （Optional）
|
|
|
DC Power Plug:
|
DC Power Femate Interface
|
|
|
PTZ
|
|
|
|
Angle
|
Pan:0~360° / Tilt:0~90°
|
|
|
speed
|
Pan: about 45°/s / Tilt: about 45°/s
|
|
|
preset
|
support 256 preset
|
|
|
General:
|
|
|
|
Operating Conditions:
|
-10 °C ~ 60 °C
|
|
|
|
Humidity 95% or less (non-condensing)
|
|
|
Power Supply:
|
12 V DC ± 10%/PoE(Optional)
|
|
|
Power Consumption:
|
Max Power Comsumption Less than 8W (When the infrared lamps turn on)
|
|
|
Weight:
|
2.4KG
|
|
