Quick Details
-
Warranty:
-
1 Year
-
Brand Name:
-
Yuneng, YUNENG
-
Model Number:
-
ZJ, ZJ-70, 150, 300, 600, 1200
-
Place of Origin:
-
Chongqing, China, Chongqing, China (Mainland)
-
Cable Length:
-
Pls contact us
-
Outlet Size:
-
Pls contact us
-
Power:
-
as per capacity
-
motor:
-
as per capacity
-
Type:
-
Electric Air Pump
Quick Details
-
Application:
-
Vacuum Pumping Machine, for Transformer oiling and drying
-
Pressure:
-
High Pressure
-
Voltage:
-
as request
-
Warranty:
-
1 Year
-
Brand Name:
-
Yuneng, YUNENG
-
Model Number:
-
ZJ, ZJ-70, 150, 300, 600, 1200
-
Place of Origin:
-
Chongqing, China, Chongqing, China (Mainland)
-
Cable Length:
-
Pls contact us
-
Outlet Size:
-
Pls contact us
-
Power:
-
as per capacity
-
motor:
-
as per capacity
-
Type:
-
Electric Air Pump

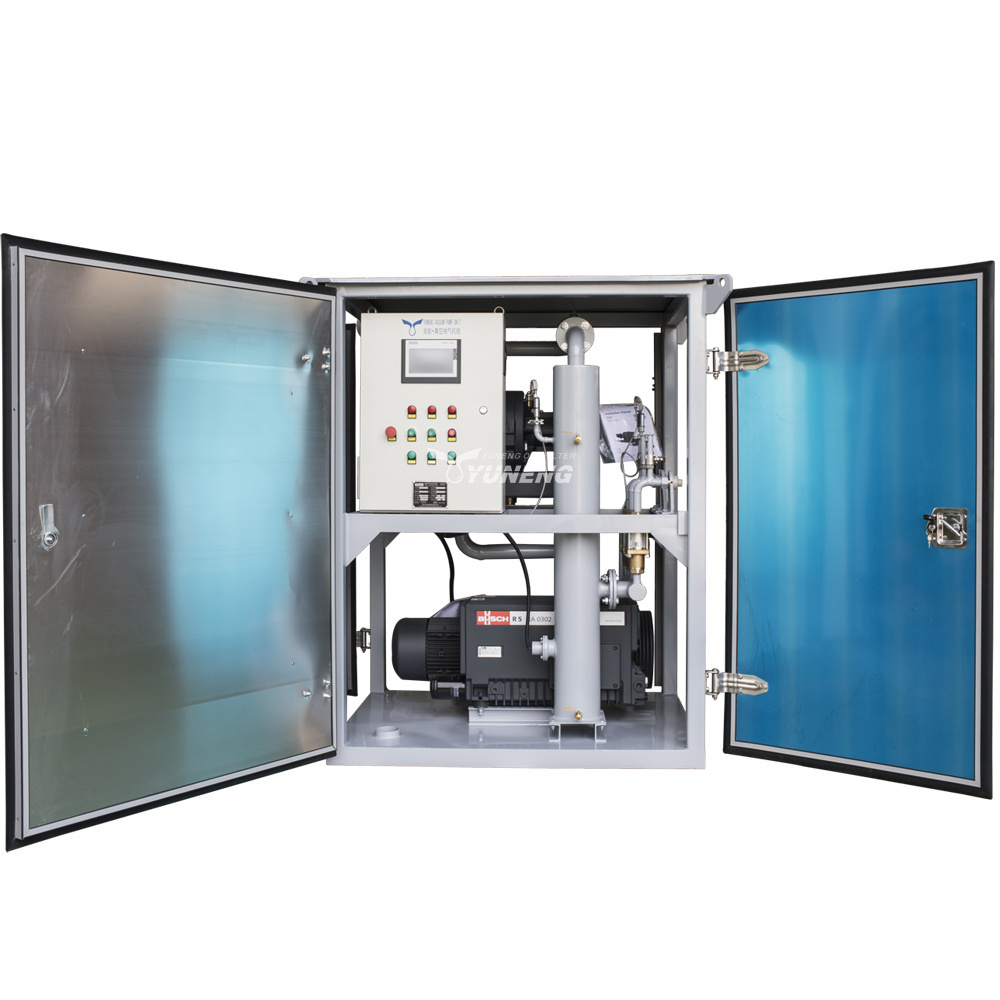

Mobile Vacuum Pumps and Roots Booster Pumping Unit for Power Transformer Vacuum Forming, Vacuum Pumping Machine
Mobile Vacuum Pumps and Roots Booster Pumping Unit for Power Transformer Vacuum Forming, Vacuum Pumping Machine is mainly used for vacuum drying and vacuumization while injecting oil in high voltage electrical transformer such as 220KV, 500KV, ±800KV, 1000KV, By selecting world famous German vacuum pumps, the working vacuity can reach up to 10Pa, limit vacuity up to 1Pa. And the GIS interface and vacuum degree intelligent setting are available according to customer's requirement. The advantages include anti-sucking, fast startup, quick pumping, stable performance and simple operation.
Product Feature
1. GIS connection available
2. Digital vacuum degree management
3. Anti-absorption
4. Machine can start fast
5. Strong vacuum pumping capacity
6. Stable performance
7. Easy operation
There is a combination of axial fan and condenser to deal moisture and gas from vacuum pump and roots pump, it can prolong time to change vacuum oil while meet emission standard.
Technical Parameter
| Name of Parameter | Unit | Model | |||||
| Pumping Speed | L/s | ZJ-70 | ZJ-150 | ZJ-300 | ZJ-600 | ZJ-1200 | |
| Limit Vacuity | Pa | ≤3 | ≤3 | ≤3 | ≤3 | ≤1 | |
| Pumping Level | 2 | 2 | 2 | 2 | 3 | ||
| Working Power |
(380V-50Hz) 3-Phase 4-Wires, or as per buyer's option |
||||||
| Power | KW | 4 | 6 | 10 | 14 | 27 | |
| Diameter of Vacuum Connection | DN | 25 | 40 | 50 | 65 | 80 | |
| Size | Length | cm | 120 | 130 | 150 | 160 | 250 |
| Width | cm | 95 | 100 | 115 | 115 | 175 | |
| Height | cm | 150 | 160 | 185 | 200 | 200 | |
| Weight | Kg | 310 | 430 | 520 | 780 | 2200 | |
Chongqing Yuneng Oil-Filter Manufacturing Co., Ltd. is a new and high-tech joint-stock enterprise established on the basis of the former Chongqing Yuneng Oil-Purifier Factory. Our company, covering an area of about 14,500 square meters, specializes in the R&D, manufacturing, and marketing of turn-key projects in oil purification, water and gas filtration, and other reclamation products.
We gather a group of specialized talents with years of working experience and technological development. Now we have 168 employees, and 60% of them have received an educational background at or above the junior college level. We can produce 1,000 sets of oil-filtering equipment and purification equipment for other fluids every year. We are one of the world competitive companies specializing in high-tech oil purifier research and manufacture. We attach great importance to product quality, specialization, dedication and constant improvement......
