Quick Details
-
brake drum:
-
350-650mm
-
brake plate:
-
180-400mm
-
rotating speed of workpiece:
-
30,49,88rpm
-
Max Travel of Tool:
-
256mm
-
Overall Dimensions(L*W*H):
-
1750*800*815mm
-
Packing Dimensions(L*W*H):
-
1165*956*915mm
-
N.W:
-
650kg
-
G.W:
-
600kg
-
Motor Power (KW):
-
1.1kw
-
brand:
-
almaco
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ALMACO
-
Warranty:
-
1 Years
-
brake drum:
-
350-650mm
-
brake plate:
-
180-400mm
-
rotating speed of workpiece:
-
30,49,88rpm
-
Max Travel of Tool:
-
256mm
-
Overall Dimensions(L*W*H):
-
1750*800*815mm
-
Packing Dimensions(L*W*H):
-
1165*956*915mm
-
N.W:
-
650kg
-
G.W:
-
600kg
-
Motor Power (KW):
-
1.1kw
-
brand:
-
almaco
Recommend Products
Product Description

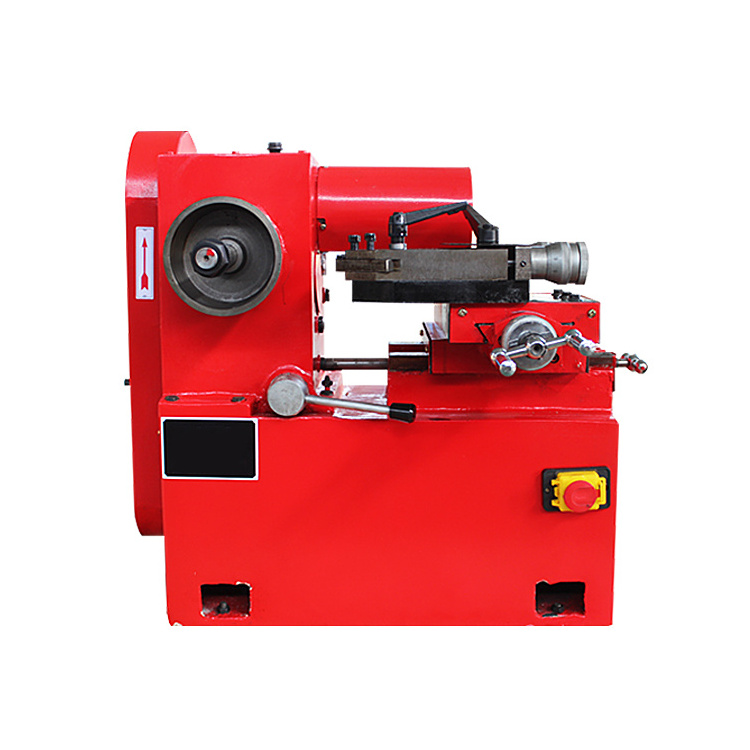

Brake Lathe C9365
It can fulfill the reparation of the brake drum disc and shoe of auto-mobiles from mini-car to medium heavy trucks.
Lead screw and light bar:
used to connect the feed box and the slide box, and transmit the motion and power of the feed box to the slide box, so that the slide box can obtain longitudinal linear motion. The lead screw is specially used for turning all kinds of threads. When turning other surfaces of the workpiece, only the smooth screw is used instead of the lead screw. Students should distinguish the difference between light bar and lead screw according to the content of slide box.
Specification
|
Main Specifications
|
|
Unit
|
C9365
|
C9350A
|
C9335
|
DCT48
|
DCP32A-K
|
|
|
range of processing
|
brake drum
|
mm
|
350-650
|
152-500
|
180-350
|
350-480
|
|
|
|
|
brake plate
|
mm
|
180-400
|
180-330
|
180-350
|
350-480
|
≤400
|
|
|
rotating speed of workpiece
|
|
rpm
|
30,49,88
|
70,80,118
|
90
|
7,35
|
90
|
|
|
Max Travel of Tool
|
|
mm
|
256
|
175
|
100
|
230
|
100
|
|
|
Overall Dimensions(L*W*H)
|
|
mm
|
1750*800*815
|
|
695*565*635
|
1100*624*950
|
|
|
|
Packing Dimensions(L*W*H)
|
|
mm
|
1165*956*915
|
|
750*710*730
|
1250*810*1300
|
450*950*650
|
|
|
N.W/G.W
|
|
kg
|
650/800
|
180
|
200/260
|
175/225
|
40/55
|
|
|
Motor Power (KW)
|
|
kw
|
1.1
|
0.75
|
0.75
|
0.75
|
0.2
|
|
