Quick Details
-
Voltage:
-
220V
-
Power:
-
/
-
Dimension(L*W*H):
-
550*350*550mm
-
Weight (KG):
-
50
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Model:
-
DHG-9123A
-
system:
-
air duct and circulation system
-
Liner material:
-
stainless steel
-
temperature controller system:
-
MCU microcontroller technology
-
controlling:
-
Micro-computer controlling,with timing function
-
Brand:
-
TOPTION
-
Timing range:
-
1~9999 min
-
Temp range:
-
RT+10℃~250℃
-
Working room size (mm):
-
550*350*550
Quick Details
-
Type:
-
Drying Oven
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
TOPTION
-
Voltage:
-
220V
-
Power:
-
/
-
Dimension(L*W*H):
-
550*350*550mm
-
Weight (KG):
-
50
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Model:
-
DHG-9123A
-
system:
-
air duct and circulation system
-
Liner material:
-
stainless steel
-
temperature controller system:
-
MCU microcontroller technology
-
controlling:
-
Micro-computer controlling,with timing function
-
Brand:
-
TOPTION
-
Timing range:
-
1~9999 min
-
Temp range:
-
RT+10℃~250℃
-
Working room size (mm):
-
550*350*550
Product Description

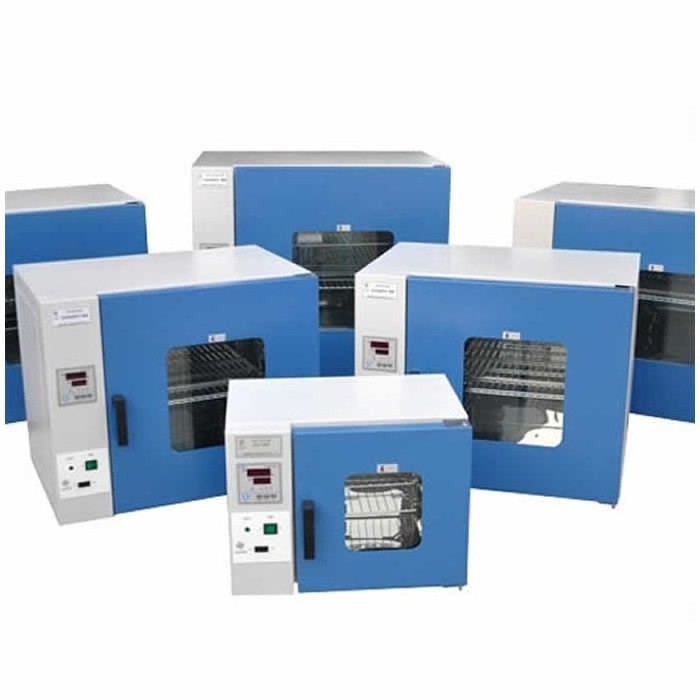

DHG-9123A Chemical Bentch top Blast Drying Oven Machine
Description of Blast Drying Oven:
Widely used in mining industry, laboratory, scientific research institute, etc for drying, heating, testing, high temp aging, sterilization, etc.
Features:
1. Unique China Streamline arc design, shell is made of cold-roll steel sheet with surface electrostatic plastic spraying; Liner is made of high quality stainless steel, and the arc corner makes it easier for cleaning.
2. MCU microcontroller technology for temperature controller system, with functions of temp controlling, timer, and over-temp alarm.
3. Reasonable air duct and circulation system, ensure the working room with good temp even rate; Adopts good performance motor and blades and also air convection breeze device, makes the air in working room can be updated and circulated.
4. Height and Number of rack in the working room can be adjusted according to customers’ requests.
Widely used in mining industry, laboratory, scientific research institute, etc for drying, heating, testing, high temp aging, sterilization, etc.
Features:
1. Unique China Streamline arc design, shell is made of cold-roll steel sheet with surface electrostatic plastic spraying; Liner is made of high quality stainless steel, and the arc corner makes it easier for cleaning.
2. MCU microcontroller technology for temperature controller system, with functions of temp controlling, timer, and over-temp alarm.
3. Reasonable air duct and circulation system, ensure the working room with good temp even rate; Adopts good performance motor and blades and also air convection breeze device, makes the air in working room can be updated and circulated.
4. Height and Number of rack in the working room can be adjusted according to customers’ requests.
Detailed Images
|
Main description of TOPTION Blast Drying Oven
1.Digital display 2.Micro-computer controlling，with timing function. 3.Timing range: 1~9999 min 4. Double glass observation window, the wind of inlet and outlet can be adjusted, stainless steel liner. 5. Corners arc-shaped design Optional: Intelligent programmed temperature controller |
|
|
|
|||
|
Temp range
|
Name
|
Model
|
Working room size (mm)
|
|||
|
RT+10℃~250℃
|
Desktop Blast Drying Oven
|
DHG-9023A
|
300*300*270
|
|||
|
|
|
DHG-9053A
|
420*350*350
|
|||
|
|
|
DHG-9123A
|
550*350*550
|
|||
|
|
|
DHG-9203A
|
600*550*600
|
|||
|
RT+10℃~300℃
|
|
DHG-9023B
|
300*300*270
|
|||
|
|
|
DHG-9053B
|
420*350*350
|
|||
|
|
|
DHG-9123B
|
550*350*550
|
|||
|
|
|
DHG-9203B
|
600*550*600
|
|||
|
RT+10℃~250℃
|
Vertical type Blast Drying Oven
|
DHG-9030A
|
340*320*320
|
|||
|
|
|
DHG-9070A
|
400*350*500
|
|||
|
|
|
DHG-9140A
|
450*550*550
|
|||
|
|
|
DHG-9240A
|
500*600*750
|
|||
|
|
|
DHG-9420A
|
600*550*1300
|
|||
|
|
|
DHG-9620A
|
800*600*1300
|
|||
|
|
|
DHG-9640A
|
800*800*1000
|
|||
|
|
|
DHG-9920A
|
1000*600*1600
|
|||
|
RT+10℃~300℃
|
|
DHG-9030B
|
340*320*320
|
|||
|
|
|
DHG-9070B
|
400*350*500
|
|||
|
|
|
DHG-9140B
|
450*550*550
|
|||
|
|
|
DHG-9240B
|
500*600*750
|
|||
|
|
|
DHG-9420B
|
600*550*1300
|
|||
|
|
|
DHG-9620B
|
800*600*1300
|
|||
|
|
|
DHG-9640B
|
800*800*1000
|
|||
|
|
|
DHG-9920B
|
1000*600*1600
|
|||
Our Company
TOPTION is professional lab solution provider,and all devoted to provide the best solutions & products for global customers, who are work in chemistry, biology, environment analysis, food, academic research, etc. Regardless of the field you work in, we keep striving for the same goal: to provide you with the most suitable solutions & products, to make your research more accurate & efficient.
TOPTION has passed the “ISO9001:2008 Quality Management System”certification and most of products have passed CE certification,the quality can be assured.
