Quick Details
-
Power:
-
142kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YUANXING
-
Maximum Digging Height:
-
14070mm
-
Maximum Digging Depth:
-
11074mm
-
Machine Weight:
-
29500 kg
-
Rated Speed:
-
4km/h
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
Amphibious Excavator
-
Keywords:
-
Digging Machine Excavator
-
Type:
-
Hydraulic Crawlerl Excavator
-
Name:
-
29.5 Ton Amphibious Excavator Digger
-
Engine:
-
CUMMINS
-
Color:
-
customizaed
-
Application:
-
sea pond river
-
Feature:
-
easy to operate
-
Origin:
-
China Shandong Province
-
Certification:
-
CE ISO
Quick Details
-
Operating Weight:
-
29.5 ton
-
Bucket capacity:
-
0.5m3
-
Engine Brand:
-
Cummins
-
Power:
-
142kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YUANXING
-
Maximum Digging Height:
-
14070mm
-
Maximum Digging Depth:
-
11074mm
-
Machine Weight:
-
29500 kg
-
Rated Speed:
-
4km/h
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
Amphibious Excavator
-
Keywords:
-
Digging Machine Excavator
-
Type:
-
Hydraulic Crawlerl Excavator
-
Name:
-
29.5 Ton Amphibious Excavator Digger
-
Engine:
-
CUMMINS
-
Color:
-
customizaed
-
Application:
-
sea pond river
-
Feature:
-
easy to operate
-
Origin:
-
China Shandong Province
-
Certification:
-
CE ISO
Product features:

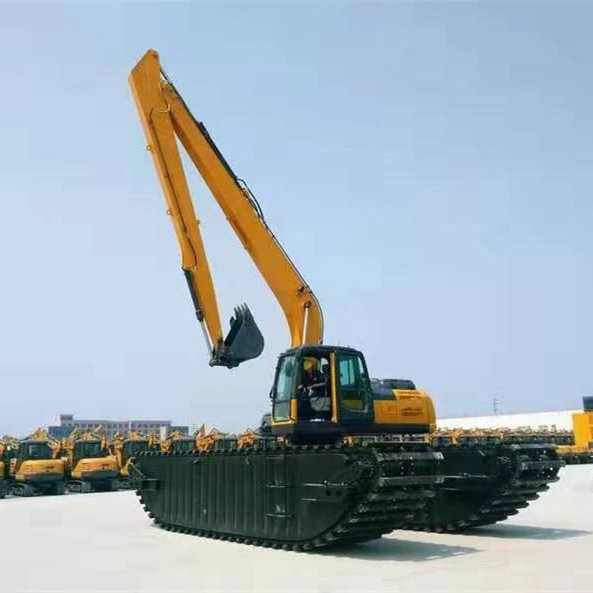

Amphibious excavators are widely used in river dredging, watershed management, wet embankment and other work, on the river, river, lake, sea, beach resources development and environmental remediation operations are of great help.
The vehicle is equipped with imported engine and hydraulic system, and the operation efficiency and reliability are higher.
Walking device with sealed box, 5 times the conventional excavator grounding area can be adapted to very soft ground, wetlands, swamps.
Three rows of walking chains ensure safe and reliable walking in the water.
|
Operating weight |
29500 kg |
|
|
Bucket capacity |
0. 5 m³ |
|
|
Engine |
Model |
CUMMINSQSB7.0 |
|
Max.Rated power |
142 kw/ 1950 rpm |
|
|
Main
|
Speed |
4.0 km/h |
|
Slewing speed |
11.1 r/min |
|
|
Setting pressure |
34.3 KPa |
|
|
Tank
|
Fuel tank |
350 L |
|
Hydraulic tank |
246 L |
|
|
Dimension |
Overall length |
15150 mm |
|
Overall width |
5815 mm |
|
|
Overall height (to top of cab) |
3 950 mm |
|
|
Pontoon width |
183 0mm |
|
|
Pontoon height |
1 85 0mm |
|
|
Pontoon length |
9770 mm |
|
|
Operating
|
Max.Digging height |
14070 mm |
|
Max.Dumping height |
1120 0mm |
|
|
Max.Digging depth |
11074 mm |
|
|
Max.Digging reach |
15100 mm |
|
|
Min.Slewing radius |
3975 mm |
|
|
Arm length |
6300mm |
|
|
Boom length |
8200mm |
|
|
Max float force |
43T |
|
|
Max water depth |
1500mm |
|
Details:
Packaging : 40'container
Shipping : Qingdao Port
