Quick Details
-
Application:
-
Apartment
-
Design Style:
-
Modern
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
ZJT
-
Model Number:
-
0818
-
Size:
-
2440X1220X22MM
-
Product name:
-
calcium silicate boards
-
Material:
-
Calcium Silicate
-
Advantage:
-
Fire Resistance
-
Color:
-
Customized
-
Usage:
-
Construction Building
-
Sample:
-
Offered
-
Keyword:
-
Calcium Silicate Board
-
Thickness:
-
22mm
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Apartment
-
Design Style:
-
Modern
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
ZJT
-
Model Number:
-
0818
-
Size:
-
2440X1220X22MM
-
Product name:
-
calcium silicate boards
-
Material:
-
Calcium Silicate
-
Advantage:
-
Fire Resistance
-
Color:
-
Customized
-
Usage:
-
Construction Building
-
Sample:
-
Offered
-
Keyword:
-
Calcium Silicate Board
-
Thickness:
-
22mm

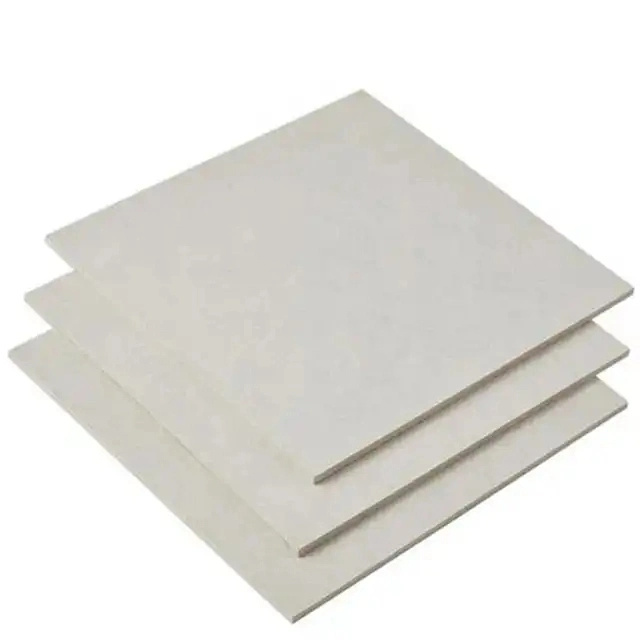

Low Price Sound-Proof Water-Proof Fire-Proof Calcium Silicate Board in Building Material Wall Panel Calcium Silicate Boards for Material Building
| Item | Fiber cement calcium silicate board |
| R aw material | C ement,Quartz sand, fiber |
| Fireproof rate | Grade A |
| N on- combustibility (min) | >= 240 |
| Bending Strength ( MPa ) | >=12 |
| Density (g/cm3) | 1.2-1.4 |
| Water Contain: | ≤ 10% |
| Swelling ratio | ≤ 0.25 % |
| Shrinking ratio | ≤ 0.5 % |
| damp proof rate | Af ter wetting, the strength drops by 20-40%, recovers by 100%after drying |
| Surface | Un-sanded / Sanded |
| Edge | S quare / Recessed |
| Specification | S tandard size: 1200/1220*2400/2440/3000*6~ 30 MM |
|
Tolerance:Length/Width: ±/3mm;
Thickness: ±/0.3mm; Edge Squareness : ≤3mm/m; Diagonal difference: ≤4mm |
Applications Of Calcium Silicate Board
- electrical equipment heat insulation
- metallurgical equipment heat insulation
- glass furnace equipment heat insulation
- all kinds of furnace body heat insulation
- Cement kiln heat insulation
- Shipyard cabin heat insulation
- petrochemical industry heat insulation
- Regenerative Heating Furnace thermal insulation
- Industrial coke oven heat insulation
Features Of Calcium Silicate Board
-
Obvious cooling :
As a backing insulation materials,they have a very marked effect of energy consevation,as a result of less accumulation of heat and bigger heat protection. -
Good durability:
After long used,the boards do not shrink,out of shape and turning powder out,insulation performance does not decline. -
High rate strength:
The rate strength of calcium silicate board is the highest in the thermo inorganic material.During the design,it can lighten the all-up weight of the kiln and stove greatly. -
Easy construction:
Using common woodworking tools can be cut to any necessary form,and can be glued and formed with other materials easily. -
Environmental protection:
No corrosives and toxicity,there are not exhaust gas and peculiar smell under the high temperature,will not cause the injury and pollution to the human body and environment.It's belong to the products of environment protection.
