Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
maskura
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
4G LTE Wifi Wireless Router
-
Network:
-
4G/3G/2G
-
Antenna:
-
4* 5dBi Antennas
-
SIM card slot:
-
1 SIM Card Support
-
Keywords:
-
Cpe Outdoor
-
Wireless Speed:
-
2.4GHz 300Mbps
Quick Details
-
Max. LAN Data Rate:
-
300Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
maskura
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
4G LTE Wifi Wireless Router
-
Network:
-
4G/3G/2G
-
Antenna:
-
4* 5dBi Antennas
-
SIM card slot:
-
1 SIM Card Support
-
Keywords:
-
Cpe Outdoor
-
Wireless Speed:
-
2.4GHz 300Mbps

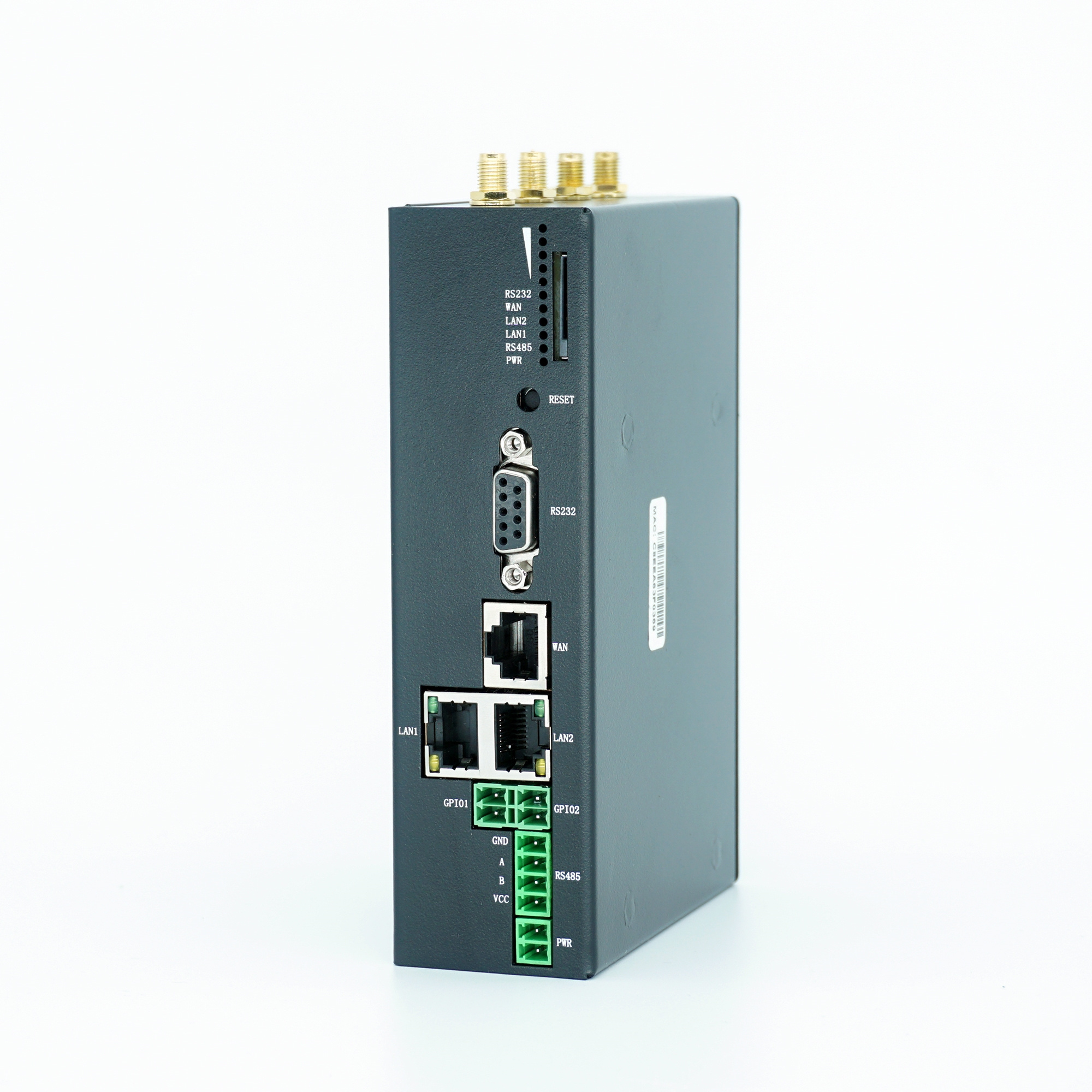

BL U02 is an industrial-grade 3G/ 4G LTE wireless DTU (Data Transmit Unit, also known as M2M equipment or IP Modem). It a dopts Me diaTek MT7628 chipset, comply with IEEE 802.11b/g/n standard, the Wi-Fi data rate is up to 300Mbps. With built-in mini PCI-E slot for 3G/4G modem. It supports FDD-LTE/TDD-LTE worldwide full frequencies up to 150Mbps 4G LTE download speed. It p rovide s standard industrial serial port RS232 , RS485 and additional GPIO port . Support data transparent transmission, real-time online / activation online, remote reset. Embedded TCP / IP protocol stack, suitable for industrial control industry, real-time online, small amount of data, serial data transmission equipment, wireless data transmission.
Main Features:
Ø Comply with IEEE 802.11b/g/n Standard, the Wi-Fi data rate is up to 300Mbps.
Ø Built-in mini PCIE slot for 4G module
Ø 2* 10/100Mbps LAN,1* 10/100Mbps WAN
Ø Industrial design for stable operation in harsh environment, with built-in hardware watchdog, ESD and surge protection, wide temperature working range - 30 ℃ ~ +70 ℃ , automatic reconnection after disconnection to ensure that the equipment is always online
Ø Compact steel housing design suitable for installation in various application environments, support DIN r ail mounting clip
Ø 4G LTE DTU with standard RS232 / RS485 serial port and additional GPIO interfaces
Ø S upport multiple protocols VPN ( GRE , PPTP,L2TP , IPsec ), ICMP , TCP, UDP, Telnet, FTP, HTTP, HTTPS , SNMP, Modbus, RTU, MQTT
Ø Support wide range DC input 9V-60V, support POE OUT 48V 802.3af/at
Hardware Specification
|
CPU Chipset |
MT7628 |
|
Protocols Comply |
IEEE802.11 b/g/n, IEEE802.3, IEEE802.3u |
|
DDR |
128Mbyte |
|
FLASH |
16Mbyte |
|
Power Supply |
DC input 9-60V |
|
Ethernet Ports |
2x 10/100M LAN, support POE OUT 48V 802.3af/at |
|
1 x 10/100M WAN, support POE OUT 48V 802.3af/at |
|
|
4G Modem |
1x mini PCI-E slot |
|
SIM Slot |
1, support 1.8V/3V SIM |
|
2.4G Antenna |
2x 5dBi omnidirectional antenna |
|
4G Antenna |
2x 5dBi omnidirectional antenna |
|
R e s e t B u tt o n |
Restore to factory default settings |
|
DTU S erial Port |
RS232,RS485, GPIO |
|
LED Indicator |
PWR , RS485 , LAN1, LAN2, WAN,RS232, RSSI |
|
P roduct Size |
1 45 × 95 × 4 5mm |
|
Watch d og |
Hardware WDT function |
|
Data Transfer Rate |
2 .4GHz: 300M bps |
|
Modulation Type |
OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK |
|
Fr equen c y R ang e |
2.412 GHz ~ 2.472 GHz ( Channel 1 ~13 ) |
|
RF P o w e r |
2.4GHz: 20 ± 2 dBm |
|
Working Temperature |
-30~+70 ° C |
|
Working Humidity |
10%~95% RH ( Non-condensing ) |
|
Storage Temperature |
-40~+80 ° C |
|
Storage Humidity |
10%~95% RH ( Non-condensing ) |
|
Environmental Compliance |
RoHS |
