Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
ECOME
-
Model Number:
-
MT-660
-
Dimensions:
-
145 x190 x47mm
-
Frequency Range:
-
VHF: 136-174MHz / UHF: 400-490MHz
-
color:
-
black
-
weight:
-
1.2kg
-
Output Power:
-
VHF: 10W/25W/65W UHF: 45W/25W/10W
-
Channel Spacing:
-
5/6.25/8.33/10/12.5/15/20/25/30/50KHz
-
Freruency Stability:
-
2.5ppm
-
Audio Distortion:
-
<5%
-
Operating Voltage:
-
13.8V DC 15%
-
Radio Type:
-
Car Mobile Radio
-
Applications:
-
Outdoor
-
Frequency Stability:
-
2.5ppm
Quick Details
-
Talk Range:
-
3-10km
-
Terminal style:
-
Vehicle Mouted
-
Storage Channel:
-
200
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
ECOME
-
Model Number:
-
MT-660
-
Dimensions:
-
145 x190 x47mm
-
Frequency Range:
-
VHF: 136-174MHz / UHF: 400-490MHz
-
color:
-
black
-
weight:
-
1.2kg
-
Output Power:
-
VHF: 10W/25W/65W UHF: 45W/25W/10W
-
Channel Spacing:
-
5/6.25/8.33/10/12.5/15/20/25/30/50KHz
-
Freruency Stability:
-
2.5ppm
-
Audio Distortion:
-
<5%
-
Operating Voltage:
-
13.8V DC 15%
-
Radio Type:
-
Car Mobile Radio
-
Applications:
-
Outdoor
-
Frequency Stability:
-
2.5ppm

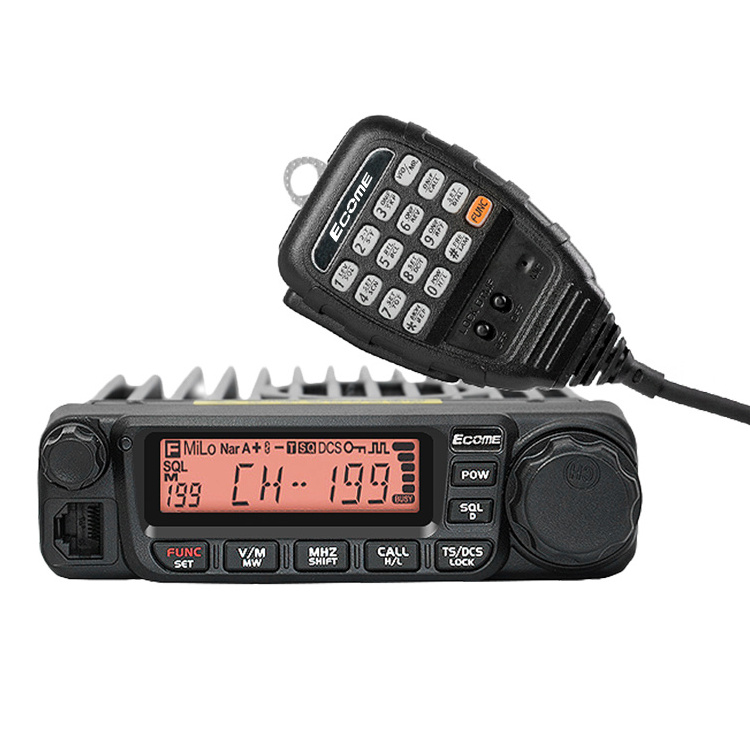

Ecome MT-660 longe range walkie talkie cb ham base vhf uhf mobile radio with microphone
- Remote kill/ stun/ activate/ revive
- Wide/Narrow band setting
- Scrambler Function(Optional)
- Contact Backup
- Remote Stun. Remote Activate.
- 1750Hz Tone
- CTCSS / DCS
- Busy Channel Lock-Out
- Channel name editing
- Battery voltage display
- High / Middle / Low output power selectable
| GENERAL SPECIFICATIONS | |
|
Band
|
VHF: 136-174MHz UHF: 400-490MHz |
| Power Output |
VHF: 10W/25W/65W UHF: 10W/25W/45W |
| Channel Spacing | 5/6.25/10/12.5/20/25/50kHz |
| Channel Capacity | 200 |
| Dimensions(HXWXD) | 145 X 190 X47 mm |
| Weight | 1.2Kg |
| Operating Temperature | -20°C ~ + 60°C |
| Power Supply(Nominal) | DC 13.8V |
| TRANSMITTER SPECIFICATIONS | |
| Modulation |
11kΦF3E / 16kΦF3E |
| Modulation Distortion | <5% |
| FM Noise |
≥36dB 25KHz ≥40KHz 12.5KHz |
| Adjacent Channel Power |
≥60dB 12.5KHz ≥70KHz 25KHz |
| Audio Response | +1-+3dB |
| RECEIVER SPECIFICATIONS | |
| Sensitivity |
0.25 μV / 0.35 μV |
| Operating Bandwidth |
60dB 12.5KHz 70dB 25KHz |
| Adjacent Channel Selectivity |
60 dB 12.5 kHz 70 dB 25 kHz |
| Spurious Rejection |
70 dB |
| FM Hum&Noise |
≥40dB 25KHz ≥45KHz 12.5KHz |
