Quick Details
-
Brand Name:
-
jiulong
-
Car Model:
-
deutz
-
Model Number:
-
226B-12160519
-
Application:
-
226B-12160519 connecting rod
-
Product Name:
-
Connecting rod assembly
-
MOQ:
-
6 Piece
-
Packaging:
-
Box
-
Part Number:
-
deutz
-
Payment:
-
T/T
-
Material:
-
Forged Steel/aluminum/titanium
-
Size:
-
Standard Size
Quick Details
-
OE NO.:
-
226B-12160519
-
Warranty:
-
3 months, 1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
jiulong
-
Car Model:
-
deutz
-
Model Number:
-
226B-12160519
-
Application:
-
226B-12160519 connecting rod
-
Product Name:
-
Connecting rod assembly
-
MOQ:
-
6 Piece
-
Packaging:
-
Box
-
Part Number:
-
deutz
-
Payment:
-
T/T
-
Material:
-
Forged Steel/aluminum/titanium
-
Size:
-
Standard Size

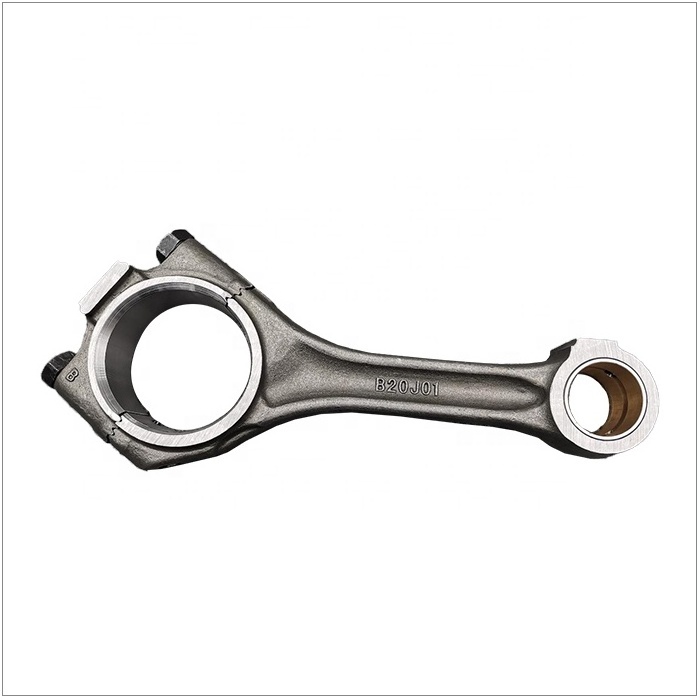

226B-12160519 connecting rod for WEICHAI DEUTZ 226B WP6 engine connecting rod
Product Description
The function of the connecting rod is to connect the piston with the crankshaft, so that the reciprocating linear motion of the piston becomes the rotary motion of the crank, so as to output power.
The connecting rod body is composed of three parts, and the part connected with the piston pin is called connecting rod small end; The part connected with the crankshaft is called the big end of the connecting rod, and the part connecting the small end and the big end is called the connecting rod body. In order to reduce the wear between the connecting rod and the piston pin, a thin-walled bronze Bush is pressed into the small end hole. Drill or mill grooves on the small head and bushing to make the splashed oil droplets enter the mating surface of the lubricating bushing and piston pin. The connecting rod body is a long rod, and it has a large force in the work. In order to prevent its bending deformation, the rod body must have enough stiffness.
226B-12160519 connecting rod for WEICHAI DEUTZ 226B WP6 engine connecting rod
Specification
|
item
|
value
|
|
OE NO.
|
226B-12160519 Connecting Rod
|
|
Warranty
|
3 months
|
|
Place of Origin
|
China
|
|
Brand Name
|
jiulong
|
|
Certification
|
IOS9001
|
|
Car Model
|
deutz
|
|
Application
|
deutz
|
|
Product Name
|
Connecting rod assembly
|
|
Condition
|
100% Brand-new
|
|
Warranty
|
1 Year
|
|
MOQ
|
1 Piece
|
|
Packaging
|
Box
|
|
Part Number
|
226B-12160519 Connecting Rod
|
|
Payment
|
T/T
|
|
Material
|
Steel/aluminum
|
|
Size
|
Standard Size
|
226B-12160519 connecting rod for WEICHAI DEUTZ 226B WP6 engine connecting rod
Details Images
226B-12160519 connecting rod for WEICHAI DEUTZ 226B WP6 engine connecting rod
The two ends of the linkage are hinged with the driving and driven members respectively to transfer motion and force. For example, in reciprocating piston power machinery and compressors, connecting rod is used to connect piston and crank. The connecting rod is mostly made of steel. The cross section of its main part is mostly round or I-shaped. There are holes at both ends. Bronze bushing or needle roller bearing is installed in the hole to form hinge joint for installing axle pin. The connecting rod is
It is an important part of automobile engine, which connects the piston and crankshaft. Its function is to change the reciprocating motion of the piston into the rotary motion of the crankshaft, and transfer the force acting on the piston to the crankshaft to output power.
In addition to the pressure produced by the combustion chamber gas, the connecting rod also bears the longitudinal and transverse inertial force. Therefore, the connecting rod works in a complex stress state, which is subject to both alternating tension and compression stress and bending stress.
The main damage forms of connecting rod are fatigue fracture and excessive deformation. Generally, the fatigue fracture is located in the three high stress regions of the connecting rod. The working conditions of the connecting rod require that the connecting rod has high strength and anti fatigue performance; It also requires enough steel and toughness.
226B-12160519 connecting rod for WEICHAI DEUTZ 226B WP6 engine connecting rod
Recommend Products
Packing & Delivery
details1. Our packing uses export wooden cases, plastic boxes, cartons or pallets. All the package are very strong, the wooden box is firmly bound, the package is covered with a waterproof film to prevent water or damage during transportation.Before packing, we can also stick corresponding labels and shipping marks according to your needs. All our goods are well packed.
2. According to the quantity, we can use express delivery, air transportation or ocean transportation, automobile transportation, railway transportation, etc. we have our own freight forwarders, and we can also use the designated freight forwarders of customers, which can meet various delivery requirements of customers, such as EXW, FOB, CIF, etc.It can also be exported from many ports in China.
Such as Qingdao port, Ningbo port, Lianyungang port, Tianjin port, Suifenhe River and Alashankou in China.
3. We can also send the goods by express if the customers have less goods. According to customer's request, we can use express such as DHL, TNT, EMS, FedEx, etc. the delivery time is 3-7. Safe, fast and convenient. It's also a good choice for you.
2. According to the quantity, we can use express delivery, air transportation or ocean transportation, automobile transportation, railway transportation, etc. we have our own freight forwarders, and we can also use the designated freight forwarders of customers, which can meet various delivery requirements of customers, such as EXW, FOB, CIF, etc.It can also be exported from many ports in China.
Such as Qingdao port, Ningbo port, Lianyungang port, Tianjin port, Suifenhe River and Alashankou in China.
3. We can also send the goods by express if the customers have less goods. According to customer's request, we can use express such as DHL, TNT, EMS, FedEx, etc. the delivery time is 3-7. Safe, fast and convenient. It's also a good choice for you.
