Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HUAXING CABLE
-
Model Number:
-
XLPE/PVC, PVC/PVC
-
certificate:
-
ISO9001-2000
-
Working voltage:
-
1,10,15,35KV
-
Working temperature:
-
80-120℃
-
Armored material:
-
Steel Wire, steel tape
-
section area:
-
2.5mm2-240mm2
-
core number:
-
1-5
-
standard:
-
IEC,ASTM,BS
-
color:
-
red,green,black,yellow
-
conductor shape:
-
round,fan-shaped
-
capacity:
-
20 kilometers per day
Quick Details
-
Insulation Material:
-
PVC
-
Application:
-
Underground
-
Conductor Material:
-
Aluminum
-
Jacket:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HUAXING CABLE
-
Model Number:
-
XLPE/PVC, PVC/PVC
-
certificate:
-
ISO9001-2000
-
Working voltage:
-
1,10,15,35KV
-
Working temperature:
-
80-120℃
-
Armored material:
-
Steel Wire, steel tape
-
section area:
-
2.5mm2-240mm2
-
core number:
-
1-5
-
standard:
-
IEC,ASTM,BS
-
color:
-
red,green,black,yellow
-
conductor shape:
-
round,fan-shaped
-
capacity:
-
20 kilometers per day

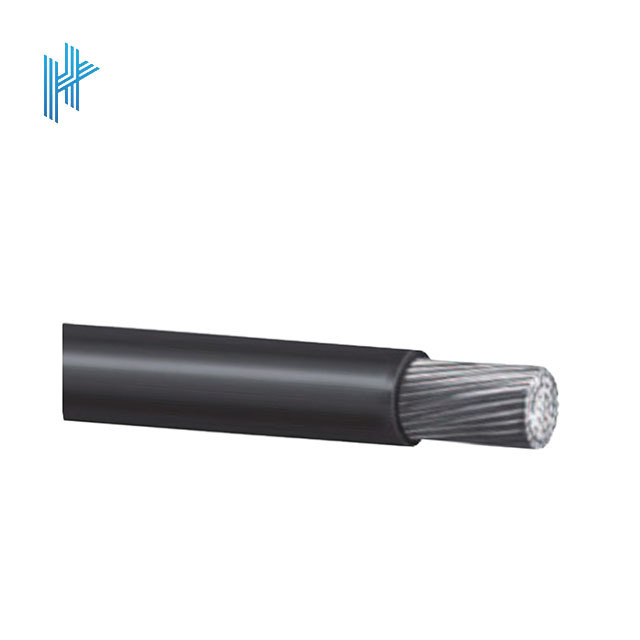

xlpe aluminium power Cable is with following features:
xlpe aluminium power cable use in ducts, trays and direct burial in ground. The cable is subject to immerse in water all the time.
xlpe aluminium power cable can be installed in duct, tray or direct burial. It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will not be affected by eciencies in the installation.
1. The products are mainly complying with iec 60502 standard, also can be produced according to OEM requirements and other standards, such as bs standard, din standard, ASTM standard, etc.
2. Laying conditions: For lyaing under ground with large different altitude, be able to bear external machanical force and moderate pulling force
xlpe aluminium power Cable Include following code and specification
|
Code Word |
AWG or Kcmil |
Bare Neutral Messenger |
Phase Conductor |
Weight |
||
|
AL.-ALLOY Stranding and wires Dia(mm) |
Rated strength(lbs) |
Al. Stranding and wires Dia(mm) |
XLPE Insulated thickness(mm) |
(kg/km) |
||
|
Minex |
2*6AWG+1*30.58 |
7/1.68 |
1110 |
1/4.11 |
1.14 |
152 |
|
prawn |
2*4AWG+1*48.69 |
7/2.12 |
1760 |
1/5.19 |
1.14 |
229 |
|
Shrimp |
2*2AWG+1*77.47 |
7/2.67 |
2800 |
7/2.47 |
1.14 |
354 |
|
Cammarus |
2*1/0AWG+1*123.3 |
7/3.37 |
4460 |
7/3.12 |
1.52 |
569 |
|
Dungeness |
2*2/0AWG+1*155.4 |
7/3.78 |
5390 |
7/3.50 |
1.52 |
702 |
|
Cyclops |
2*3/0awg+1*155.4 |
7/3.78 |
5390 |
19/2.13 |
1.52 |
703 |
|
Flustra |
2*3/0AWG+1*195.7 |
7/4.25 |
6790 |
19/2.39 |
1.52 |
869 |
|
LEPAS |
2*4/0AWG+1*246.9 |
7/4.77 |
8560 |
19/2.68 |
1.52 |
1077 |
|
CRAB |
2*4AWG+1*30.58 |
7/1.68 |
1110 |
7/1.96 |
1.14 |
208 |
|
SDCRAB |
2*1/0AWG+1*77.47 |
7/2.67 |
2800 |
7/3.12 |
1.52 |
504 |
MOQ, Capacity& Payment method
For electric wire, aerial cable and power cable, the Minimum Order Quantity is 1000 meters each type. The capacity is 20 kilometers per day.
For electric conductor(AAC,ACSR,AAAC,AASC) for transmission line, the Minimum Order Quantity is 1 ton each type. The capacity is 50 tons per day.
Our payment term is 30% deposit in advance, 70% rest against copy of B/L; or 100% irrevocable L/C at sigh
