Quick Details
-
Engine Brand:
-
top brand
-
Weight:
-
1280 KG
-
Rated Power:
-
120hp
-
Weight::
-
1280KG
-
Model:
-
SE250
-
Dimension L*W*H(mm):
-
3320*1280*1418mm
-
Wheel base(mm):
-
2688.5mm
-
Engine:
-
TY2100IT3
-
Lifting force:
-
29kn
Quick Details
-
Brand Name:
-
Chinese famous brand
-
Place of Origin:
-
Henan, China
-
Marketing Type:
-
New Product
-
Engine Brand:
-
top brand
-
Weight:
-
1280 KG
-
Rated Power:
-
120hp
-
Weight::
-
1280KG
-
Model:
-
SE250
-
Dimension L*W*H(mm):
-
3320*1280*1418mm
-
Wheel base(mm):
-
2688.5mm
-
Engine:
-
TY2100IT3
-
Lifting force:
-
29kn
Contact
Send Message or Chat Now for Best price
Keson Zhu
Mobile/WhatsApp /Wechat: +86 18354277740
Please let us know the main use, brand, power and other requirements of the purchased products.
We will recommend the related products to you.
Keson Zhu
Mobile/WhatsApp /Wechat: +86 18354277740
Please let us know the main use, brand, power and other requirements of the purchased products.
We will recommend the related products to you.

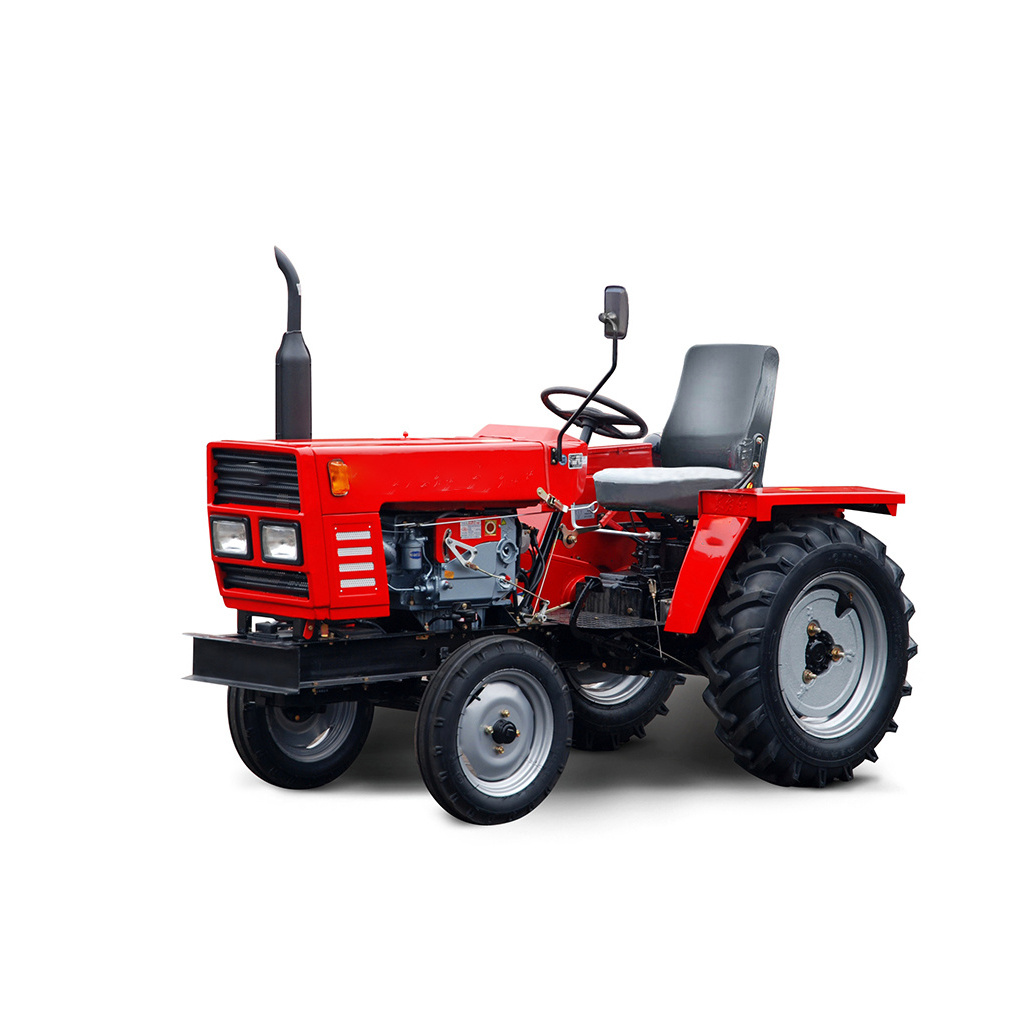

Title farm tractor SE250
Products Description
1.The diesel engine, which is manufactured using advanced British technology, delivers large torque, high fuel efficiency and low emission and engine is also optional.
2.The transmission system is made on the basis of Italian technology. The top speed can be more than 35km/h.
3.The full hydraulic steering system is utilized for easy operation.
4.High safety is ensured due to the use of the wet disc brake.
5.Optional new cab is not only elegant but also can be equipped with an air conditioning system so as to offer the driver a high level of comfort.
6.In addition to built-in master cylinder, two auxiliary cylinders can also be used, resulting in increased lift force (30kN).
7.Our wheel loader adopts double action clutch. German clutch is available for your choice.
2.The transmission system is made on the basis of Italian technology. The top speed can be more than 35km/h.
3.The full hydraulic steering system is utilized for easy operation.
4.High safety is ensured due to the use of the wet disc brake.
5.Optional new cab is not only elegant but also can be equipped with an air conditioning system so as to offer the driver a high level of comfort.
6.In addition to built-in master cylinder, two auxiliary cylinders can also be used, resulting in increased lift force (30kN).
7.Our wheel loader adopts double action clutch. German clutch is available for your choice.
Product Paramenters
|
Model
|
YTO-180
|
YTO-200
|
YTO-SE250
|
YTO-SK244
|
||||
|
Diesel engine
|
|
|
|
|
||||
|
Model
|
TY295IT
|
TY295IT
|
TY2100IT3
|
YD385T
|
||||
|
Type
|
Double cylinder, vertical, water cooled, four stroke
|
|
|
|
||||
|
Displacement (L)
|
1.49
|
1.49
|
1.65
|
1.53
|
||||
|
Rated power/speed(Kw)/(r/min)
|
13.2/2200
|
14.7/2200
|
18.4/2300
|
17.7/2350
|
||||
|
Max. torque (N.m)/speed (r/min)
|
66.4/1760
|
71.5/1760
|
86/1760
|
83/1700
|
||||
|
Bore x stroke (mm)
|
95×105
|
95×105
|
100×105
|
85×90
|
||||
|
Transmission
|
|
|
|
|
||||
|
Gear shift, forward/backward
|
16/4
|
16/4
|
8/4
|
8/2
|
||||
|
Speed range (Km/h), forward/backward
|
0.79-27.0/1.05-9.79
|
0.78-27.44/1.03-10.07
|
2.17-28.13/2.59-7.86
|
2.07-31.54/2.72-12.59
|
||||
|
PTO power (Kw)
|
10.56
|
11.77
|
15.5
|
15.05
|
||||
|
PTO rotation speed(r/min)
|
540
|
540
|
540
|
540/1000
|
||||
|
Clutch
|
Single disc
|
Single disc
|
Single disc
|
Single action (Double action optional)
|
||||
|
Implement
|
|
|
|
|
||||
|
Three-point linkage category
|
Rear three-point linkage I
|
Rear three-point linkage I
|
Rear three-point linkage I
|
Rear three-point suspension I
|
||||
|
Tilling depth control mode
|
Height adjustment
|
Height adjustment
|
Floating adjustment, position adjustment
|
Height adjustment, position adjustment
|
||||
|
Lifting force(KN)
|
2.98
|
3.2
|
4.2
|
4.0
|
||||
|
Dimensions, mass, drive
|
|
|
|
|
||||
|
Drive type
|
4×2
|
4×2
|
4×2
|
4×4
|
||||
|
Overall dimensions (LxWxH)(mm)
|
2540×1205×1370
|
2800×1240×1400
|
3320×1280×1418
|
3453×1465×1835
|
||||
|
Wheelbase(mm)
|
1440
|
1500
|
1650
|
1698
|
||||
|
Min. ground clearance(mm)
|
271
|
305
|
325
|
260
|
||||
|
Min. operating mass(with safety stand)(Kg)
|
1060
|
1060
|
1280
|
1450
|
||||
|
Tyre spec., front /rear
|
4.0-14/7.5-20
|
4.0-14/9.5-20
|
4.0-16/9.5-24
|
6.0-16/9.5-24
|
||||
|
Wheel tread, front/rear
|
1000/1000
|
1000/1020
|
1000-1300/1020
|
1190/1100-1300
|
||||
|
Steering
|
Mechanical
|
|
|
Hydraulic steering
|
||||
|
Brake
|
Shoe, mechanical
|
|
|
-
|
||||
